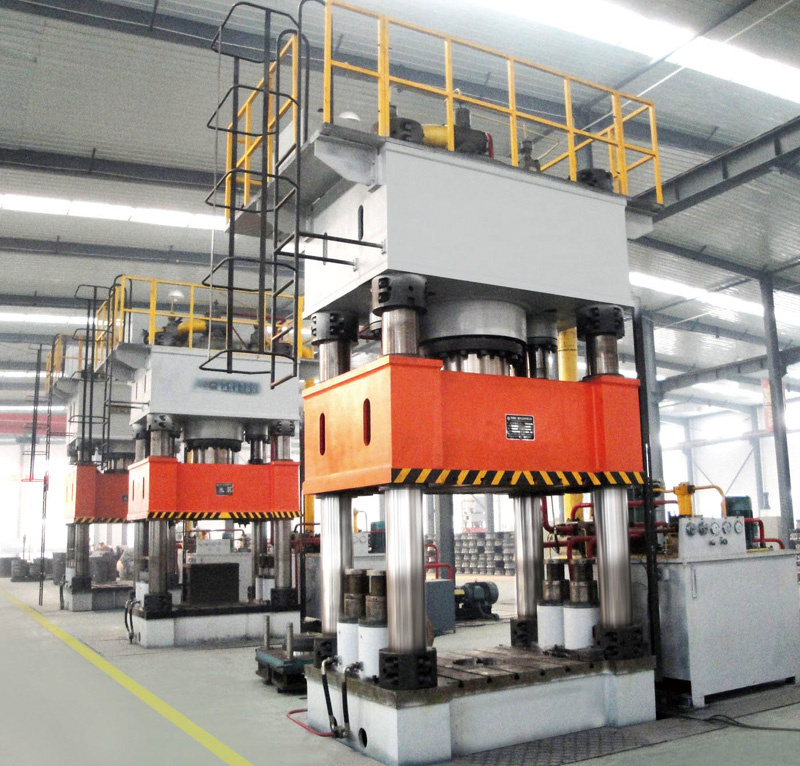

Four Columns Hydraulic Press for Deep Drawing and Stamping

Name: Four Columns Hydraulic Press for Deep Drawing and Stamping
Brand: china-castingforging.com
SKU: 646125295
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Xuzhou L & B Foreign Trade Corporation Ltd.

Showroom Product Company Profile

Four Columns Hydraulic Press

Characteristics:
4-column structure is simple but with high performance price ratio and convenient for maintenance.
Cartridge valve equipped for hydraulic control system, with less hydraulic shock, reliable, durable,
Fewer release points.
Fixed stroke forming process or fixed pressure forming process at choice, with pressure hold and time delay and the time is adjustable.
Adjustable stroke and pressure according to the technology in the specified scope.
With control panels, the press has three working ways: Adjusting, manual and semi-automatic.

Application:
Suitable to drawing, blanking (blanking buffer device must be elect), bending, flanging, extruding processes. It also can be used to straighten, press-in, form the other materials such as powder, abrasive, plastics and insulator products.

Item		Unit	63B	100B	100E	200A	200C	315	315F	315H	315G	315W	500	500B	500F
Rated force		KN	630	1000	1000	2000	2000	3150	3150	3150	3150	3150	5000	5000	5000
Knock out force		KN	-	196	196	-	280	400	1000	630	-	-	1000	1000	1000
Return force		mm	200	165	315	380	240	600	600	600	600	600	1000	1000	900
Slide stroke		mm	600	500	500	800	710	800	800	800	1700	800	900	900	1000
Knock out stroke		mm	-	200	200	-	200	250	300	300	-	-	350	350	400
Daylight opening height		mm	1050	800	800	1200	1120	1250	1450	1450	2800	1200	1500	1500	1600
Slide Speed	Idle stroke	mm/s	120	200	40	160	100	100	150	200	30	160	100	100	300
	Pressing		20-40	8-30	10-25	4-10	4-10	4-10	8-30	8-20	5-12	4-10	4-10	4-10	15-35
	Return		70	150	80	60	90	60	150	95	120	60	80	80	200
Cushion speed	Knock out	mm	-	120	120	-	175	100	40-100	40-100	-	-	80	80	70
Cushion speed	Return	mm	-	250	250	-	370	150	240	180	-	-	220	240	220
Table area	L-R	mm	1600	630	630	2000	1000	1260	1260	1260	2000	2000	1400	2000	2500
Table area	F-B		1400	630	630	1500	940	1120	1160	1160	1710	1500	1400	1420	1500
Overall dimensions	L-R		4650	2500	2500	2460	1380	3100	4485	4485	2600	2440	3800	4500	4100
	F-B		2400	1430	1040	1540	2120	2120	2950	2950	1710	1850	3500	3500	2300
	Height above floor		3700	3215	2900	4500	3880	4295	4720	4720	6610	2900	5220	5220	6500
Motor power		KW	22	11	11	22	22	22	39.95	39.95	50	22	44	44	93

Item		Unit	630	-630A	630C	-800	800A	1000	1000A	1000B	1000D	1600	2000	2000A	2500
Rated force		KN	6300	6300	6300	8000	8000	10000	10000	10000	10000	16000	20000	20000	25000
Knock out force		KN	-	1000	-	1800	1000	1000	1380	1380	-	2000	-	2500	-
Return force		KN	1200	1000	1250	1200	1100	1300	1250	1250	1380	1000	2600	2600	1000
Slide stroke		mm	1100	900	900	1000	900	900	1000	1000	1250	1000	1000	1000	1200
Knock out stroke		mm	-	350	-	330	350	350	400	400	-	400	-	300	-
Daylight opening height		mm	2100	1500	1800	1800	1500	1500	1800	1800	3200	1500	2500	2500	2500
Slide Speed	Idle stroke	mm/s	150	80	100	150	100-120	120	200	200	200	150-200	150	150	150
	Pressing		4-10	4-10	8-20	10-25	5-12	5-12	5-20	5-20	5-18	5-12	4-10	4-10	5-12
	Return		60	50	100	150	90	90	60-150	60-150	150	150	80	150	120
Cushion speed	Knock out	mm/s	-	80	-	67	65	70	170	85	-	50	-	40	-
Cushion speed	Return	mm/s	-	240	-	145	200	200	470	200	-	80	-	120	-
Table area	L-R	mm	3000	1600	1550	2400	1500	1500	2500	3500	4000	2500	5000	2000	2800
Table area	F-B	mm	2250	1600	1600	1600	1500	1500	1800	2250	3000	1800	2400	2000	2400
Overall dimensions	L-R	mm	5000	5145	3400	4300	5100	4100	4750	9170	11200	8300	7600	8000	3650
	F-B		2350	4600	4050	1600	4200	3200	2650	5650	4020	3000	3200	3000	5900
	Height above floor		6300	6000	5775	7200	6000	6000	6020	6550	7925	5925	7500	7660	7530
Motor power		KW	60	60	82	92.8	74	74	91.5	95.2	93.7	91.6	90	183	156

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method:	Mold Forging
