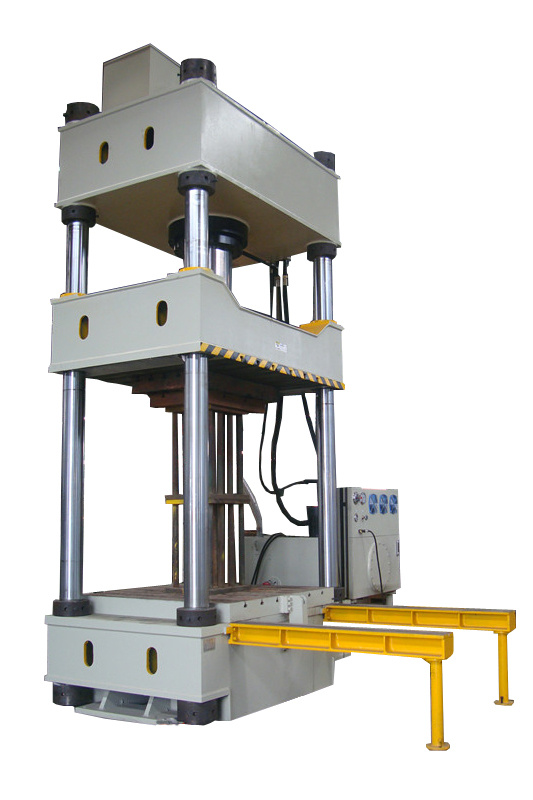

Hydraulic four-column press machine from China supplier
Introduction of Hydraulic Press
Baide manufactures wide ranges of hydraulic press to meet the need of every customer's specification and requirements. Hydraulic press adopts four-column structure with simple, economic and practical design.
The hydraulic control system employs cartridge valve integrated system, so the moving is reliable and can work for a long life. With an independent power-control system, this hydraulic press has a very clear working circle and can be easily repaired. The working pressure and stroke can be changed according to customer's needs.
Charatcter of hydraulic press:
1. Machine frame and worktable enjoy high guide precision, good rigidity and resistance to lateral force. It is specially suitable for pressing both asymmetric products and those with high precision.
2. Worktable enjoys fast speed and high production efficiency.
3. Four columns are made of alloy steel with high strength, being hard chrome plated and good wearing resistance.
4. Cylinder is mounted underneath to embrace a compact structure.
Application of hydraulic press: Stamping, forming, stretching, shaping, laminating and edge cutting of metal and non-metal parts. Typical products that is pressed are watchcase, watchband, eyeglass frame and components, picture frame, tableware, logo, lock, hardware, etc.
More types of hydraulic press:
| Specification | Model | Unit |
|
|
|
|
|
|
|
|
|
|
|
| YQ32-40 | YQ32-63 | YQ32-100 | YQ32-100A | YQ32-160 | YQ32-200 | YQ32-315 | YQ32-400 | YQ32-500 | YQ32-500C | YQ32-630 |
| Nominal force | KN | 400 | 630 | 1000 | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 |
| Knock-out force | KN | 120 | 190 | 190 | 190 | 240 | 400 | 630 | 630 | 1000 | 1000 | 1000 |
| Max. working hydraulic pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Slide-stroke | mm | 450 | 500 | 600 | 600 | 700 | 700 | 800 | 800 | 900 | 900 | 900 |
| Knock-out stroke | mm | 150 | 200 | 200 | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 350 |
| Max. distance between lower sur-face of slide and surface of table | mm | 700 | 800 | 900 | 900 | 1050 | 1100 | 1250 | 1300 | 1500 | 1500 | 1600 |
| Slide-travel speed | Idledown running | mm/s | 40 | 100 | 22 | 180 | 120 | 100 | 100 | 100 | 100 | 100 | 100 |
| Working | mm/s | 15 | 20 | 14 | 14 | 10 | 12 | 5 | 4 | 10 | 10 | 6 |
| Return | mm/s | 50 | 60 | 47 | 60 | 60 | 52 | 60 | 60 | 60 | 60 | 50 |
| Effec-tive area of table | Left-right | mm | 500 | 560 | 680 | 500 | 1000 | 1000 | 1200 | 1200 | 1400 | 2370 | 1500 |
| Front-back | mm | 460 | 500 | 580 | 460 | 800 | 900 | 1200 | 1200 | 1400 | 1450 | 1500 |
| Overall dimen-sion | Left-right | mm | 2000 | 2400 | 2500 | 2000 | 2700 | 2825 | 3235 | 3235 | 4060 | 6500 | 4200 |
| Front-back | mm | 1300 | 1400 | 1500 | 1300 | 1700 | 2060 | 2200 | 2200 | 3525 | 3800 | 4200 |
| Height above ground | mm | 2600 | 3100 | 2950 | 2600 | 3400 | 3725 | 4295 | 4500 | 4995 | 4740 | 5600 |
| Total motor power | kw | 4 | 7.5 | 7.5 | 4 | 7.5 | 15 | 22 | 22 | 45 | 45 | 45 |
| Weight | kg | 2000 | 3000 | 4000 | 2000 | 6000 | 11000 | 14000 | 22000 | 25000 | 38000 | 34000 |
| Specification | Model | Unit | 11601 | 11602 | 11603 | 11604 | 11605 | 11606 | 11607 | 11608 | 11609 | 11610 | 11611 |
| YQ32-40 | YQ32-63 | YQ32-100 | YQ32-100A | YQ32-160 | YQ32-200 | YQ32-315 | YQ32-400 | YQ32-500 | YQ32-500C | YQ32-630 |
| Nominal force | KN | 400 | 630 | 1000 | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 |
| Knock-out force | KN | 120 | 190 | 190 | 190 | 240 | 400 | 630 | 630 | 1000 | 1000 | 1000 |
| Max. working hydraulic pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Slide-stroke | mm | 450 | 500 | 600 | 600 | 700 | 700 | 800 | 800 | 900 | 900 | 900 |
| Knock-out stroke | mm | 150 | 200 | 200 | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 350 |
| Max. distance between lower sur-face of slide and surface of table | mm | 700 | 800 | 900 | 900 | 1050 | 1100 | 1250 | 1300 | 1500 | 1500 | 1600 |
| Slide-travel speed | Idledown running | mm/s | 40 | 100 | 22 | 180 | 120 | 100 | 100 | 100 | 100 | 100 | 100 |
| Working | mm/s | 15 | 20 | 14 | 14 | 10 | 12 | 5 | 4 | 10 | 10 | 6 |
| Return | mm/s | 50 | 60 | 47 | 60 | 60 | 52 | 60 | 60 | 60 | 60 | 50 |
| Effec-tive area of table | Left-right | mm | 500 | 560 | 680 | 500 | 1000 | 1000 | 1200 | 1200 | 1400 | 2370 | 1500 |
| Front-back | mm | 460 | 500 | 580 | 460 | 800 | 900 | 1200 | 1200 | 1400 | 1450 | 1500 |
| Overall dimen-sion | Left-right | mm | 2000 | 2400 | 2500 | 2000 | 2700 | 2825 | 3235 | 3235 | 4060 | 6500 | 4200 |
| Front-back | mm | 1300 | 1400 | 1500 | 1300 | 1700 | 2060 | 2200 | 2200 | 3525 | 3800 | 4200 |
| Height above ground | mm | 2600 | 3100 | 2950 | 2600 | 3400 | 3725 | 4295 | 4500 | 4995 | 4740 | 5600 |
| Total motor power | kw | 4 | 7.5 | 7.5 | 4 | 7.5 | 15 | 22 | 22 | 45 | 45 | 45 |
| Weight | kg | 2000 | 3000 | 4000 | 2000 | 6000 | 11000 | 14000 | 22000 | 25000 | 38000 | 34000 |
NOTES:Thanks for your checking our machine tool.To give you a detailed quote,please choose your model in the specification chart,or tell me the max thickness,length,control demand
We will reply within 12 hours.
