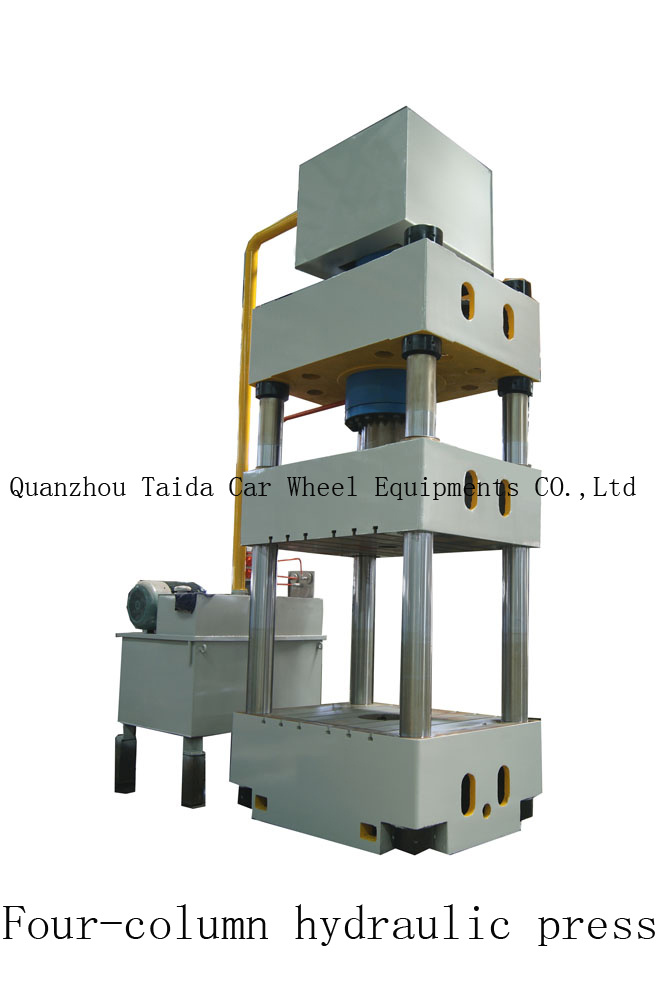

Four-column type
Cartridge valves with little shock, less leakage and reliable movements
Work with pre-setting pressure or pre-setting stroke, pressure can be held, time can be delayed and adjusted.
Adjustable pressure and stroke according to the technology in the stipulated scope
Three working ways: Adjusting, manual and semi-automatic
Application
This series of hydraulic presses are used in the drawing, blanking, bending, flanging, cold extruding, straightening, pressing-in, and forming technology for metal, plastics, abrasive, and insulator products.
Optional
Moving bolster
Buttering device for blanking
Photo-electricity protective device
Trades the mold to use the fluctuation guide rail and the trundle bracket
Mold fast clamp organization
The traveling schedule, the pressure, the speed number reveal, the numerical control installment
Touching type industry display monitor
Hydraulic system heating, cooling system
Hits the material installment
Trades mold car
Slide security hitch
The mold heating and warm controls the installment
PLC programmable control
Nearby pressure circle and actuation system.
|
The main technical parameter of the four-column hydraulic press |
|
Item |
Unit |
YX-200C |
YX-315C |
YX-500C |
YX2-630C |
YX2-800C |
YX2-1000C |
YX2-1600C |
Note |
|
Nominal pressure |
KN |
2000 |
3150 |
5000 |
6300 |
8000 |
10000 |
160000 |
The technical parameter may change according to the customer request |
|
Knock out force |
KN |
280 |
380 |
1000 |
1000 |
1500 |
1800 |
/ |
|
Return strength |
KN |
240 |
300 |
570 |
640 |
1200 |
1140 |
/ |
|
Travel range of sliding block |
mm |
500 |
600 |
700 |
900 |
800 |
800 |
/ |
|
Travel range of knock out |
mm |
200 |
250 |
300 |
300 |
350 |
350 |
/ |
|
Closed height |
mm |
400 |
500 |
600 |
600 |
700 |
700 |
/ |
|
Biggest open height |
mm |
900 |
1100 |
1300 |
1500 |
1500 |
1500 |
/ |
|
Sliding block speed |
Idle |
mm/s |
260 |
260 |
260 |
260 |
260 |
260 |
260 |
|
Working |
7~20 |
6~16 |
6~16 |
8~20 |
8~20 |
5~18 |
/ |
|
Return |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
Push speed |
Knock out |
mm/s |
150 |
120 |
100 |
120 |
120 |
100 |
/ |
|
Return trip |
280 |
180 |
280 |
180 |
180 |
160 |
/ |
|
Work table size |
L-R |
mm |
1000 |
1260 |
1400 |
1600 |
2400 |
2500 |
2800 |
|
F-B |
940 |
1160 |
1400 |
1600 |
1600 |
1800 |
2000 |
|
Machine size |
L-R |
mm |
2820 |
2860 |
3700 |
3400 |
/ |
/ |
/ |
|
F-B |
1500 |
1500 |
1850 |
1600 |
/ |
/ |
/ |
|
Above ground high |
3685 |
4400 |
4700 |
5580 |
/ |
/ |
/ |
|
Electric motor power |
kw |
25 |
45 |
45 |
45 |
45+18.5 |
45+45 |
55+55 |
Quanzhou taida car wheel equipment Co., Ltd is a professional machinery manufacturer established in 1995 with certification of ISO9001: 2000 quality management system, carrying out the 6s management all around, . It lies at the golden triangle area in south of fujian province --wuli bridge development area, shuitou town.
with long years elaborate management, our company has been grown from a small workshop into a comprehensive enterprise, integrating research, CAD mechanical design, manufacturing, testing, debugging, as well as after sale-service.
Main products: Automobile spoke spinning machine, vertical tubeless wheel rim programme controlled web-plate lathe, vertical automobile rim programme controlled lathe, multi-shaft spoke spot facer, internal/external plane vertical lathe for steel-ring assembly, dig slag machine, roll flattening machine, de-crowner, and roll forming machine etc. For our products, equipments and machines that used to processing wheel rim is our main products. In our factory, you can find all the machines which is needed in processing a wheel rim. with our machines, you can process the steel plate to an perfect wheel rim. As tne good quality and competive price, our products share a grate part of the market.
The top management of taida always pay a close attention to the change of domestic and foreign markets, adjusting the industrial structure timely, leading our technician\s to develope and research the latest products ceaselessly, which cover heavy, medium, and light industries of varieties and complete car wheel equipments.
Adhering to the principle of "professional and perfect, trustworthy and people oriented", taida plays his rule actively on the market of automotive wheel equipment. Meanwhile, with the principle of the pursuit of perfection, innovation.
We sincerely welcome old and new friends from over the world to visit us for exchange, here, we shall be always here for u, to make great progress and step forward for good development together.
