Quick Details
Place of Origin: Jiangsu China (Mainland)
Brand Name: GD
Model Number: According to drawing
Application: Industry
Material: Steel
Dimensions: According to drawing
Certificate: ISO 9001
Process: Open Die Forging Weight: Max 55T
Packaging & Delivery
Packaging Detail: Package adapting to ocean transport
Delivery Detail: 30 - 90 days
Specifications- Products with Customers' Designs
- Strong Machining & Heat Treatment Abilities
- Strict Quality Control
- Prompt Delivery
We are a reliable supplier that can make forging parts and casting parts. Here are some details of the products
For your reference.
1. Main products: Custom Open Die Forging, Main Shaft, Wind Power Shaft, Stabilizer, Flange, Coupling, BOP

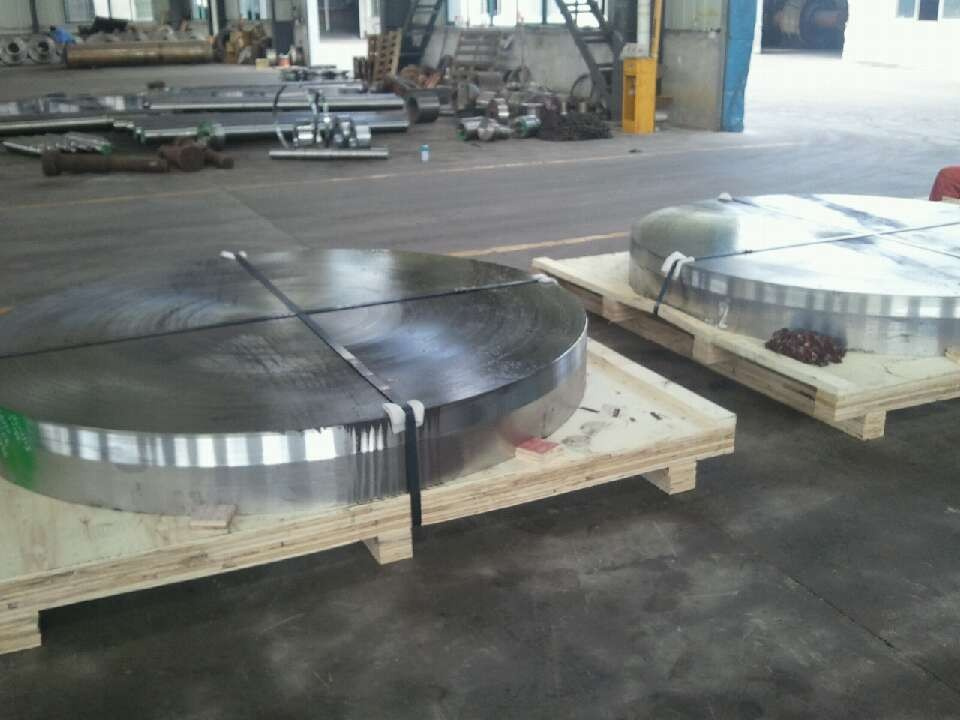

Body, Tube Plate, Roller Forging, Roller Shell, Ring Forging, Gears, Gear Blank, Gear Shaft, Gear Wheel.
2. Materials: Carbon steel, Alloy steel
3. Supplying range: Shafts, Sleeves, Rings, Cylinders, Blocks, Modules etc
4. Process: Forging/Casting Normalizing & Tempering Proof Machining- Quenching & Tempering Finish
Machining
We can offer you in various process conditions.
5. QA DOC.: Chemical Composition Report, Mechanical Properties Report, UT Report, Heat Treatment Report,
Dimensions Check Report
UT test: 100% ultrasonic test according to EN10228-3, SA388, Sep 1921 C/c etc.
Heat Treatment Report: Provide original copy of heat treatment curve/time table.
Steel Ingot: EAF-LF-VD/ESR. Material Certificate according to En10204-3.1 is requested from ingot supplier.
6. Specifications of Forging:
Shape
Diameter(m)
Length(m)
Shaft
≤ 2.5
≤ 15
Block
≤ 4.0
/
Ring
≤ 4.9
≤ 3.5
Cylinder
≤ 1.5
≤ 8.0
7. Standards: GB, JIS, AISI, SAE, ASTM/ASME, EN, DIN, GOST
8. Max Weight: 55T
9. Certification: ISO 9001
| Shape | Diameter(m) | Length(m) |
| Shaft | ≤2.5 | ≤15 |
| Block | ≤4.0 | / |
| Ring | ≤4.9 | ≤3.5 |
| Cylinder | ≤1.5 | ≤8.0 |
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
