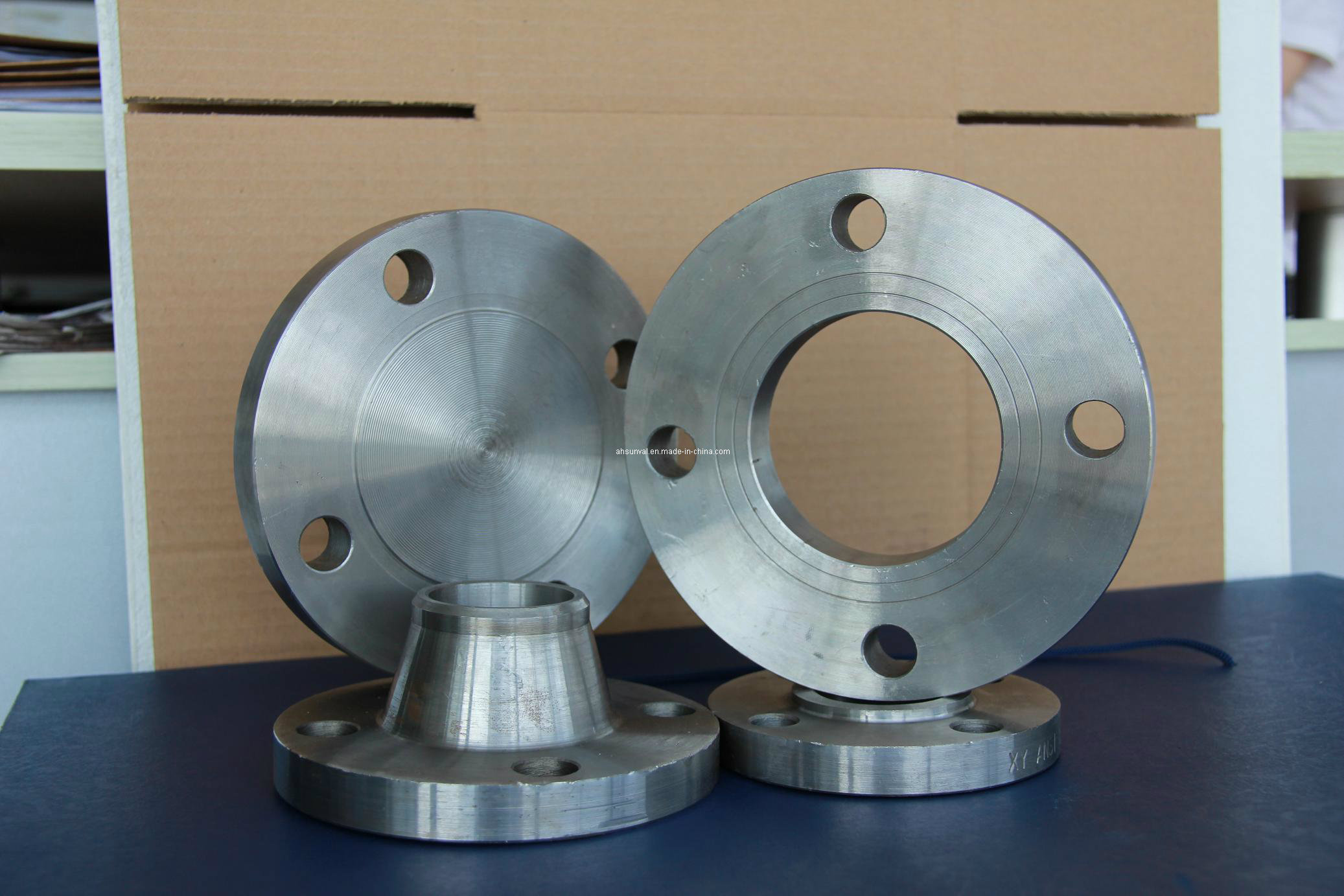

1, Forged Steel Plate Flanges
2, material: CS, SS
3. Size: 1/2"-48"
4, standard: ANIS, JIS, DIN, GOST
5, pressure: 150#-3000#
Forged Plate Flange Q235
1. Material: Carbon steel A105/Rst37.2/C22.8/Q235 Stainless steel 304/304L, 316/316L, 321, ect.
2. Size: 1/2"-60"
3. Pressure: 150lbs-2500lbs
4. Facing: RF/FF/RTJ
5. Standard: ANSI, ASME/DIN/JIS/UNI/...
6. Flanges of welding neck, socket welding, threaded, blind, slip on, lap joint are in accordance with ANSI B 16.5 from 1/2" to 24" and classes 150 to 2500 (complete range).
7. Flanges from 26" to 48" and classes 150 to 900 lbs are in accordance with MSS SP 44 standard.
8. Flanges with long welding neck are from classes 150 to 2500 lbs and sizes from 1/2" to 24".
9. Orifice flanges from 1" to 24" and from 300 to 2500 lbs are in accordance with ANSI B 16.36.
10. Blind, slip on, welding neck flanges are from 6 Bar to 40 Bar in accordance with DIN.
11. Flanges from 1/2" to 24" and up to 450 lbs are in accordance with BS10 Table D & Table E, BS Table F & Table H, BS Table J & Table K.
12. Depending on special purposes, flanges can be manufactured in different shapes and sizes
We are a professional piping system equipments supplier with 20 years export experience to more than 45 countories. We produce gate valve, globe valve, check valve, butterfly valve, ball valve, air valve as well as flanges and pipe fittings with materials in iron, carbon steel or stainless steel and design to API, DIN, BS, JIS, ANSI/ASTM standards.
We have obtained international approval certificate ISO9001, CE0035, WRAS, NSF etc.
We are pleased to manufacture according to customer's design, drawing, photo and samples, OEM.
