Forging SAE1045 SAE4140 Alloy Steel Crank Shaft

Name: Forging SAE1045 SAE4140 Alloy Steel Crank Shaft
Brand: china-castingforging.com
SKU: 707326735
Availability: InStock
Rating: 5 (93 reviews)

Price:	US $ 10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Jiangyin Golden Machinery Equipment Co., Ltd.

Showroom Product Company Profile

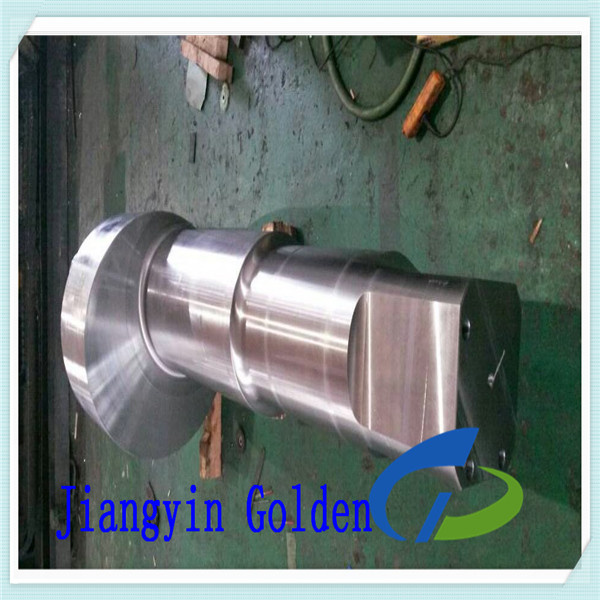

Forging sae4140 steel crank shaft

OUR COMMITMENT: COMPETITIVE PRICE, HIGH QUALITY AND GOOD SEVICE

High quality rotary forged CRANK shaft

Specification:

1: Processing high quality gear

2: Materials: C45, 39NiCrMo3, 40CrNiMoA, SAE 4320, 36Mn5

3: Measurement: Max outside dia:3200, weight:30 tons.

Detail description:

1: Name: Gear shaft

2: Proces: heat forging

3: Certificates: ISO9001-2000, SGS

4: Products ability: Max length:1--16m, Max OD: 3m

5: Surface: polishing or per costomer's requirement

Material	42CrMo, 42CrMo4, 34CrNiMo6
Production ability	0.75MW-3MW
Main production process	forged+ heat treatment+ rough machining+finish machining
Standards	ASTM, ASME, DIN, JIS, ISO, BS, API, EN
Delivery Status	N + T (Normalizing + Tempering) , with finish machining
Production capacity	1.Open die forging: Max OD: 3800mm; Max weight: 35t; Max height: 2500mm. 2.Ring rolling: OD: 600mm~3800mm; Min ID: 500mm; Max weight: 4t; Max height: 500mm.

Products range:

Die Forging, Main Shaft, Wind Power Shaft, Stabilizer, Flange, Coupling, BOP Body, Tube Plate, Roller Forging, Roller Shell, Ring Forging, Gears, Gear Blank, Gear Shaft, Gear Wheel.

Prod Model:	free size
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	up to 12meter
Size:	1/2'' to 500''
Technology:	Forging Steel Crank Shaft
Certificates:	ISO, Gl and ABS
Processing Object:	Metal
Molding Style:	Forging

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.

Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.

Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection

Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.

Specifications:

Description

The heavy forging: Forged ring, shaft, roller, flange, or gear

Material

Alloy steel or stainless steel

Material standard

ASTM or GB/T3077-1999

Specification

As per specified requirements

Weight

Max. 250 ton

Smelting Process:

EF+LF + VD+VC

Process

Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection

→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection

UT standard

EN10228, ASTM A388 or JB/T 5000.15-1998

Competitive Advantage:

The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.

Excellent product quality and service, competitive price, "in-time" delivery
