Forging 50mm Trailer Hitch Ball
| Price: |
US $ 2-10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

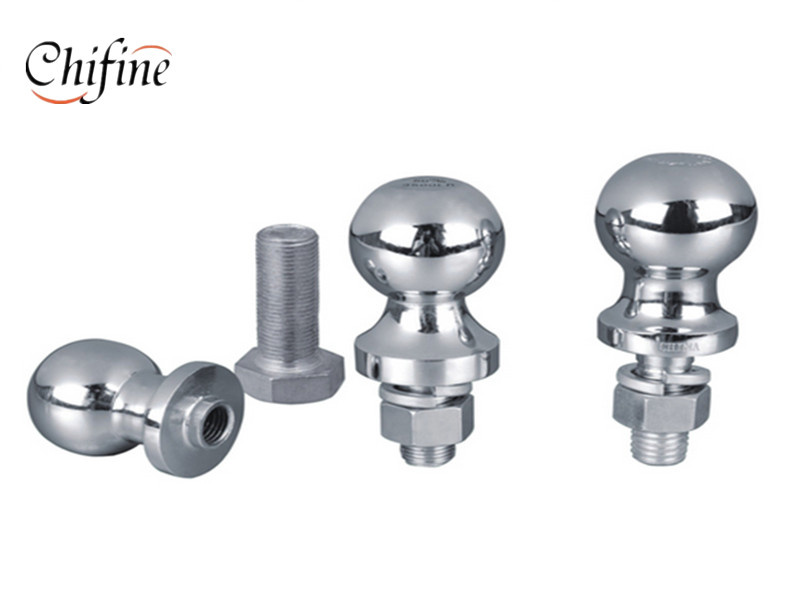

trailer ball
Ball dia. :1-7/8", 2", 2-5/16"
Shank dia.:3/4",7/8",1", 1-1/4"
Shank length:1-3/4",2-1/8",2-1/4",2-5/16",2-7/8",3-3/8"
Gross Loads: 2000lb,3500lb,6000lb,7500lb,12000lb,14000lb,20000lb,30000lb
Surface treating:chrome

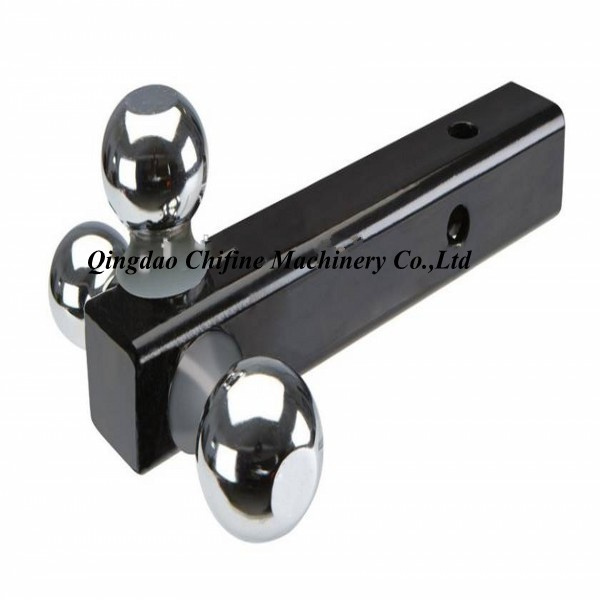

Triple Ball Trailer Hitch
This triple ball trailer hitch mount accommodates three different coupler sizes so you always have the right size ball mount. With just a simple, quick readjustment, this hitch accepts 1-7/8 in., 2 in., 2-5/16 in. couplers. Built with chrome plated hitch balls and a rugged welded steel shank for optimal durability, this hitch fits standard 2 in. receivers.
· Chrome plated hitch balls
· Rugged welded steel shank with black enamel finish
· Fits standard 2 in. receivers
· Cut and drilled square receiving tube with welded steel trailer ball
· Ball sizes: 1-7/8 in., 2 in., 2-5/16 in.
Our Service
Superiorities
1. High precision of dimensional tolerance.
2. Excellent mechanical properties.
3. Available in varieties of dimensions (acc to customer's requirements).
4. Advanced production equipments and test instruments.
5.42 excellent technicists.
6. The production procedures are strictly controlled.
7. Much attention is also paid to the protection and packaging.
| ITEM# | Ball Diameter | Shank Diamater | Shank Length | Capacity | NOTE |
| HB17801 | 1-7/8" | 3/4" | 1-1/2" | 2,000 lbs |
|
| HB17803 | 1-7/8" | 3/4" | 2" | 2,000 lbs |
|
| HB17807 | 1-7/8" | 3/4" | 2-1/2" | 2,000 lbs |
|
| HB17808 | 1-7/8" | 3/4" | 3" | 2,000 lbs |
|
| HB17809 | 1-7/8" | 1" | 2" | 3,500 lbs |
|
| HB17811 | 1-7/8" | 1" | 2-1/2" | 3,500 lbs |
|
| HB17812 | 1-7/8" | 1" | 3" | 3,500 lbs |
|
| HB201 | 2" | 3/4" | 1-1/2" | 3,500 lbs |
|
| HB203 | 2" | 3/4" | 2" | 3,500 lbs |
|
| HB205 | 2" | 3/4" | 2-1/4" | 3,500 lbs |
|
| HB207 | 2" | 3/4" | 2-1/2" | 3,500 lbs |
|
| HB208 | 2" | 3/4" | 3" | 3,500 lbs |
|
| HB209 | 2" | 1" | 2" | 5,000 lbs |
|
| HB213 | 2" | 1" | 2-1/2" | 5,000 lbs |
|
| HB214 | 2" | 1" | 3" | 5,000 lbs |
|
| HB251601 | 2-5/16" | 1" | 2" | 10,000 lbs |
|
| HB251602 | 2-5/16" | 1" | 2-1/8" | 10,000 lbs |
|
| HB251603 | 2-5/16" | 1" | 2-1/2" | 10,000 lbs |
|
| HB251604 | 2-5/16" | 1" | 3" | 10,000 lbs |
|
| HB251605 | 2-5/16" | 1-1/4" | 2-1/2" | 10,000 lbs |
|
| HB251606 | 2-5/16" | 1-1/4" | 3" | 10,000 lbs |
|
| Prod Model: |
CF-071 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Certificate: |
Ts16949 ISO9001 |
| Origine: |
Qingdao |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Delivery Time: |
15-20days After Receiving The Payment |
| Supply Ability: |
5000 Piece/Pieces Per Month |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
