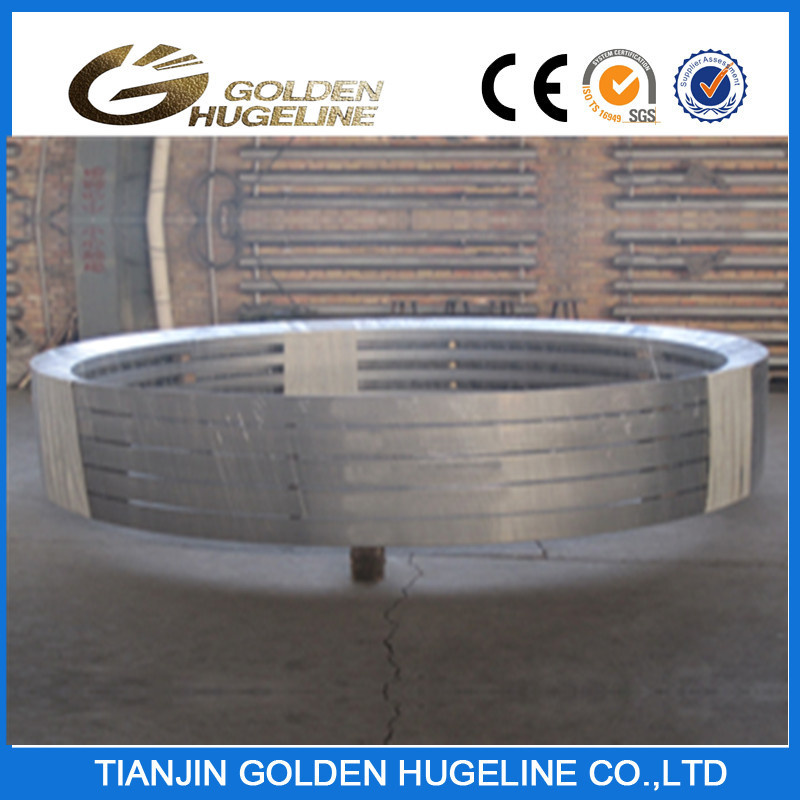

Name: Forged steel wind power flange
1. Dimension: From 1/2 to 72
2. Thickness: STD, SCH20, SCH30, SCH40, SCH80, SCH100, SCH120, SCH160, XS, XXS
3. Material: Carbon steel. Alloy Steel
4. Standard: ANSI B16.5, DIN, JIS, GB
5...Certificate: GB/T19001-2000-ISO9001: 2000
6. Packaging: As per customers requirement ( wooden case, pallet, etc. )
7. Applications: Petroleum, Chemical, Power, Gas, Construction, Metallurgy, etc
Type | Flange flange is a type of industrial flange designed to transfer stresses to the pipe to reduce high stress concentrations at the base of the flange. Compared with other types,weld neck ,slip on ,blind,plate etc. |
Size | Weld neck flange: 1/2"~100" DN10~DN4000 |
Pressure | American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500 European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400 |
Standards | GB/T9112-2000 GB/T9115.1-2000 GB/T9115.2-2000 GB/T9115.3-2000 GB/T9115.4-2000 GB/T9124-2000 GB/T13402-1992 SH/T3406-1996 GD2000 GD87-1101 JB/T74-1994 JB/T75-1994 JB/T82.1-1994 JB/T82.2-1994 JB/T82.3-1994 JB/T82.4-1994 HG/T20592-2009 HG/T20614-2009 HG/T20615-2009 HG/T20623-2009 HG/T20635-2009 ASME B16.5-2009 ASME B16.47-2006 API605-1988 MSS SP 44-2006 CSA Z245.12-05-2005 EN1092-1-2007 EN1759-1-2004 DIN2630 DIN2631 DIN2632 DIN2633 DIN2634 DIN2635 DIN2636 DIN2637 DIN2638 BS1560-3.1-1989 BS4504-3.1-1989 AFNOR NF E29-200-1-2007 ISO7005-1-1992 AS2129-2000 JIS B2220-2004 |
Material | Carbon steel: A105 Alloy steel: A182 F 1-F 2-F 5-F 9-F 10-F 91-F 92-F 122-F 911-F 11-F 12-F 21-F 22 Stainless steel: A182 304-304H-304L-304N-304LN 316-316H-316L -316N-316LN 321-321H 347-347H Low temperature steel: A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8 High performance steel: A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70 Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6 High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70 |
Surface treatment | Transparent oil, rust-proof black oil or hot galvanized |
Flange Facing Types | American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ) European Series: Type A(Flat Face), Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove) |
Industries Served | Electrical power, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy |
Packing | wooden case, pallet or as customers' requirement |
Min order | 1 0 piece s. |
Delivery time | 3 days after receipt of payment . |
Certification | API, CCS, and ISO9001:2000 |
Delivery Term | FOB(30% down payment in advance, the balance before shipment) CIF or CFR(30% in advance , the balance against with the copy of B/L) |
Tianjin Golden Hugeline Co., Ltd., located in Tianjin city, is one of the biggest steel groups. Golden Hugeline Group are specialized in producing and exporting all kinds of steel pipe and fittings, flanges, valves in China. Our group is established in 1995 and We have over 15 years' Experience in steel market.
Our group have four branches. The factories of steel pipe and pipe fitting are located in Hebei Province, one flange factory is located in Shanxi Province, and the last one is our sea shipping company in Tianjin. Our main products are pipe fittings, pipes, flanges, valves and so on. We can manufacture according to ANSI/ASTM, JIS, DIN, API, GOST and non-standard. The sizes are 1/2" up to 72" for pipe fittings, 1/2" up to 32" for flanges, 1/2" up to 24" for pipes, 1/2"up to 24" for valves.
Our products have been widely used in many projects. Also we are a good supplier of SGS and have passed ISO, API, TUV, EC and so on. Till now, we have exported to Vietnam, British, Sweden, Japanese, Korea, India, Brazil, Germany, Africa and Middle East counties. We have good reputation from our customers and have long term cooperation with them.
We sincerely hope to cooperate with new and old friends and warmly welcome you to visit our factory.
