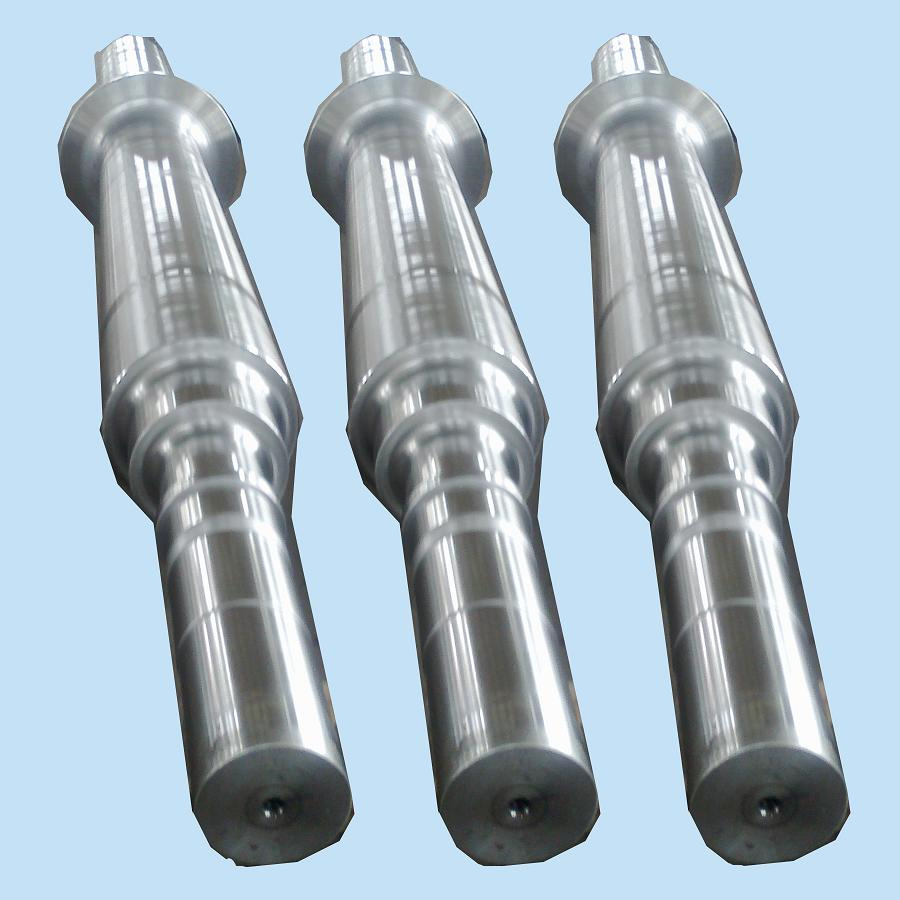

Products: Forged Shaft.
Steel grade:
Carbon steel:
Chinese Standard: 20#, 25#, 35#, 45#, 50#, 60#;
Japan Standard: S20C, S25C, S35C, S45C, S55C, S60C;
US Standard: AISI1020, AISI1040, AISI1045, AISI1050;
Europe Standard: CK15, C. 22, C45, CK45, C60, CK60; C45E;
Alloy Steel:
Chinese Standad: 16Mn, 20Mn, 30Mn2, 30Mn5, 40Cr, Q345D, Q345E,
Q390; 42CrMo, 20CrMo, 38CrMoAl, 40CrNiMo; 48CrMo, 5CrNiMo;
Janpan Standard: SCM415, SCM420, SCM440, SNCM439, SNCM220; SACM645
USA Standard: SAE4140, SAE4130, SAE9840, SAE4340, AISI4145H,
SAE4150, SAE8620,
Europe Standard: 42CrMo4, 25CrMo4, 34CrNiMo6, 39CrNiMo3, 17NiCrMo6,
18CrNiMo7-6, S355J2G3, ASTM A105, ST52-3, 16MnCr5, 20MnCr5,
16MnCrS5, 20MnCrS5, 21CrMoV511, 56NiCrMoV7, 18NiCrMo5, 30CrNiMo8,
34NiCrMo16, 41CrAlNi7, 34CrAlNi7, B7, B16, F11, F12, F22, F5, F9, 51Cr4.
Tool Steel: 1.2714, H13, H11, P20, SKD61;
Max. Weight: 30 Tons.
Size: According the drawings.
Delivery condition: Forged+Normaized+Rough Machine+Queching+Tempering+Finish Machined.
Steel ingot: EAF+LF+VD.
Ultra-sonic test: As per SEP 1921 Group III C/c, D/d, E/e;
Grain size: As per ASTM E112-96 Grade 5 or finer for normalized/annealed/QT condition
Non-metal inclusion: As per ASTM E45 A/B/C/D heavy ≤ 2, thin ≤ 2.5
Our customer:
Our forged shafts were applied in automotive, mine, marine, aerospace, drilling and many other industries. There are from USA, Canada, UK, Germany, France, Italy, Spain and South Africa.
Applications of Forged Shafts
Wind Turbine: Turbine Rotor Shaft, Turbine Blade, Valve, Bush and Casing Bolt
Gas Turbine: Compressor Disc, Turbine Disk, Spindle Bolt and Compressor Blade
Nuclear Power: Casing, Coupling, RPV Stud Bolt, Pump Shaft
Forged shaft Material
Carbon steel, alloy steel, Tool steel.
Material Standard:
GB, BS, ASTM, EN, DIN, AISI, JIS.
Mill: Jiangsu Zhuhong Forging Co., Ltd
Jiangsu Zhuhong Forging Co., Ltd is committed to providing high quality special steel for industrial manufacturing.
Founded in 2003, The concept of service is that products and services has been to create value in various manufacturing and other industrial machinery manufacturing industry; The company has VD furnace, forging equipment, and provide the roughing, finishing, heat treatment and other follow-up services; Also has a full range of products, systems and laboratory testing.
Zhuhong supply all types of forging special kind of steel products include forged round bar, forged square bar, forged module, forgied shaft, forgied rolls, and other forged products; The use of steel ingots from 500 kg to 60 tons, the supply capacity of 70, 000 tons, of which forged round bar with a diameter of 90-800mm;
Cooperate with the product distributors and end customers, 70% of products exported to Europe, the United States, Australia, Southeast Asia, South America, Northeast Asia, the Mediterranean coast and other developed countries; The strict product quality and excellent service has won the domestic and international Customers alike; Zhuhong has developed the world's leading shipbuilding, automobiles, wind power, aerospace components, mining machinery and other heavy manufacturing suppliers;
Zhuhong has committed to innovation, excellence, and constantly improve the product system and steadily increase the scope of products and services; Better serve the industrial manufacturing industry; At the same time Zhuhong will continue to improve the cast product sales channels; Zhuhong will deepen cooperation with agents, end-users to Create a vision of the future better;
