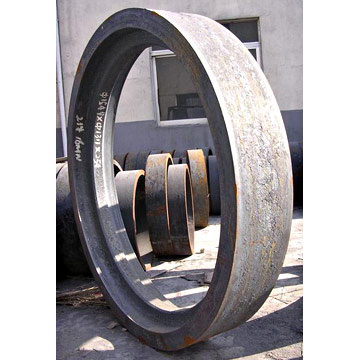

Forged Steel Ring (16Mn, S355J2G3, ST52-3)
| Price: |
US $ 1500-1800/Ton |
| Trade Terms: |
FOB |
| Min Order: |
10/Ton |
| Pay Type: |
L/C,T/T |
Production Specification:
Forged Steel Ring ( 16Mn, S355J2G3, ST52-3)
1. Dia: 100mm-1000mm
2. Length: 3000mm-12000mm
3. Process: EAF + LF + VD + Forged + Heat Treatment (optional)
4. Delivery condition: Hot forged +Rough machined (black surface after Q/T)+ Turned (optional)
5. Forged ratio: No less than 3: 1
6. Technical Data: According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
7. Test: Ultrasonic test according to SEP 1921-84 3C/c
8. Material details will be as per agreed technical specifications
9. Certificate of Quality: Issued in English, in addition the normal terms, production process, the mechanical property (yield strength, tensile strength, elongation and hardness), forged ratio, UT test result, Grain size, heat treatment methods and the sample of is shown on the Certificate of Quality.
10. Marking: Heat No. Will be cold stamped and Steel grade, diameter (mm), length (mm), and the manufacturer LOGO and weight (kg) is painted.
|
Chinese standard |
American standard |
Germanystandard |
Japanese standard |
|
GB/T |
Grade |
ASTM
SAE AISI |
Grade |
DIN |
Grade |
JIS |
Grade |
|
20# |
1020 |
C22 |
S20C |
|
35# |
1035 |
C35 |
S35C |
|
45# |
1045 |
C45 |
S45C |
|
16Mn |
TyPe7 |
S355J2G3 |
SPFC590 |
|
20CrMo |
5150 |
25CrMo4 |
SCM420 |
|
35CrMo |
4137 |
34CrMo4 |
SCM435 |
|
42CrMo |
4140 |
42CrMo4 |
SCM440 |
|
40CrNiMo |
4340 |
34CrNiMo6 |
|
| Prod Model: |
forged steel ring |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forged Steel Ring: |
16mn Steel Ring |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
