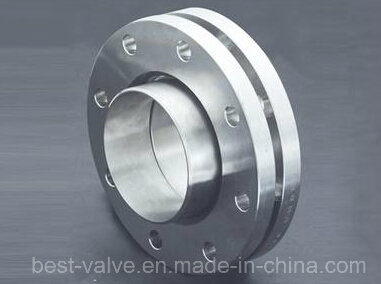

Forged Lap Joint Flange Stainless Steel Flange
1. Material: Stainless Steel
2. Process: Forging and machining
3.Pressure:PN0.6MPa,PN.0MPa,PN1.6MPa,
Material:Stainless Steel
Type:Welding Flange
Connection:Flanged
Standard:ANSI, DIN, GB, JIS, Bs En1092-1
Manufacturing Way:Forging
Export Markets:Global
1 | Material | Stainless steel |
| 2 | Process | Forging and machining |
| 3 | Pressure | PN0.6MPa,PN.0MPa,PN1.6MPa, |
1. Application:
For seal or connect of pipe/tub-e lines
2. Material:
304,304L,316,316L,carbon steel or other material on request
3. Standard:
ANSI,DIN,JIS,BS,EN1092-1
4. Size:
DN15 (1/2") to DN5000 (200")
5. Type:
Threaded Flanges, Socket Welding Flanges, Blind Flanges, Other Flanges
Types' Specification
Welding neck
1, Preferred for high-pressure, subzero or elevated temperature
2, Hub is tapered and bored to match pipe's inside diameter so flow is not restricted, preventing turbulence and reducing erosion
3, Easily radiographed and provides excellent stress distribution
Slip-on
1, Not normally used in high-stress applications due to low hub and weld attachment
2, Silps over outside of pipe
3, Inside of flange welded at hub and end of pipe
Lap joint
1, Used where bolt alignment or access for cleaning is required
2, Similar to slip-on flange when used with lap joint stub end
3, Radius at intersection of flange face and bore to match lap joint stub end
Threaded
1, Used where welding would would be hazardous
2, Designed for low-pressure and non-cyclic applications
3, Bore is threaded to match pipe thread
4, Tapered to seal pipe and flanges
Socket welding
1, For small-diameter chemical processes, hydraulic and stream distribution lines
2, Similar to slip-on flange
3, Counter bore matches pipe bore, allowing unrestricted flow
4, Counter bore from hub side fits pipe's outer diameter - can insert pipe in socket with fillet weld at hub
Blind
1, Used to close ends of piping
2, Has no bore
3, Permits access to sealed lines
Other flanges
Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks,Metric, Navy Drawings, Customer Drawings
Our company after more than 10 years ofdevelopment, has the avundant technical strength, excellent wquipment, advanced technology, and equipped with large cnc lathe, cnc driling machine, engine lathe, forging machine, roll machine, hydraulic presses and other anvanced equipment, to lay a solid foundation, for the high-quality goods, over the years products are facing the whole country and exported to voerseas.
Company specializing in the production of all kinds of non-standard prcesion stainless seel flange, flange for the pharmaceutical machinery and equipment to provide quality products are pressure vessel flange, tubesheet, perple(hand) hole flange, u-shaped slot flanges flanges, water treatment, stertlization pot flanges, extractin tank flange and the domestic and foreign various standard flange. Can be customized various non-standard flange, its widely used in food, pharmaceutical, bilogical, chemical, petroleum, metallurgy, construction, electric power and other projects, caliber DN15-3000mm.
Cangnan Best Valves & Fittings Factory, a professional manufacturer of kinds of sanitary pumps, such as: Centrifugal pump, self-priming pump, double seal pump and kinds of valves and fittings for fluid equipment.
As a medium size factory, Cangnan Best Valves & Fittings Factory focuses in HIGH QUALITY and LOW COST. Our quality comes from our efforts! It Believes, only sticking to this principle, it can survive in this competitive market.
Cangnan Best Valves & Fittings Factory has 8-year-experience of export, and it has exported the products to Europe, America, Taiwan, Asia and so on.
We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers. As a manufacturer, we specialize in the supply of stainless steel valves, fittings and tubes to the dairy, beverage, food, brewery, pharmaceutical and personal care industries. Our technical and sales staff have many years experience in valves and fittings industries. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
With good quality and favorable price, we are ready to receive inquiries and orders from all over the world!
