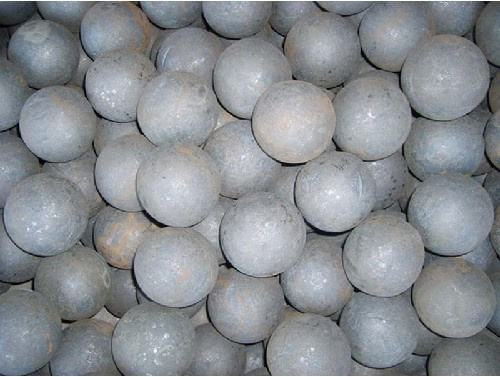

Forged steel grinding balls have 4 types as follows:
1.60Mn forged grinding ball
Diameter: 20mm-150mm
Hardness: HRC 53-62
Chemical elements: Cr: 0.25max C: 0.55-0.65 Si: 0.17-0.37 Mn: 0.7-1.0 S&P: 0.04max
2.65Mn forged grinding ball
Diameter: 20mm-150mm
Hardness: HRC57-63
Chemical elements: Cr: 0.25max C: 0.62-0.70 Si: 0.17-0.37 Mn: 0.9-1.2 S&P: 0.035max
3.75MnCr forged grinding ball
Diameter: 20mm-150mm
Hardness: HRC60-65
Chemical elements: Cr: 0.4-0.6 C: 0.72-0.92 Si: 0.17-0.37 Mn: 0.7-1.0 S&P: 0.04max
4.60Si2CRV forged grinding ball
Diameter: 20mm-150mm
Hardness: HRC60min
Chemical elements: Cr: 0.9-1.2 C: 0.56-0.64 Si: 1.4-1.8 Mn: 0.4-0.7 S & P: 0.03max
Name |
Chemical Composition(%) |
|
C |
Mn |
Si |
Cr |
S |
P |
|
50Mn |
0.48-0.56 |
0.7-1.0 |
0.17-0.37 |
≤ 0.25 |
≤ 0.035 |
≤ 0.035 |
|
60Mn |
0.57-0.65 |
0.7-1.0 |
0.17-0.37 |
≤ 0.25 |
≤ 0.035 |
≤ 0.035 |
|
65Mn |
0.60-0.70 |
0.9-1.2 |
0.17-0.37 |
≤ 0.25 |
≤ 0.035 |
≤ 0.035 |
|
B2 |
0.7-0.85 |
0.7-0.8 |
0.17-0.37 |
0.2-0.7 |
≤ 0.03 |
≤ 0.03 |
|
75SiMn |
0.7-0.90 |
0.7-1.2 |
0.4-0.8 |
≤ 0.25 |
≤ 0.03 |
≤ 0.03 |
Wear-resistant
Alloy |
0.5-0.65 |
0.4-0.8 |
1.4-1.8 |
0.9-1.2 |
≤ 0.03 |
≤ 0.03 |
Impact Test
(Ak. J/cm^2) |
Endurance test times(5m/ per time) |
Hardness(HRC) |
Microstructure
|
|
Φ 25mm-Φ 60mm |
Φ 70mm-Φ 100mm |
|
Surface |
Core |
Surface |
Core |
|
≥ 12 |
≥ 10000 |
≥ 56 |
≥ 35 |
≥ 56 |
≥ 28 |
M+B+C
(M-Martensite; B-Bainitic; C-Carbide) |
|
≥ 13 |
≥ 10000 |
≥ 58 |
≥ 38 |
≥ 58 |
≥ 29 |
|
≥ 15 |
≥ 12000 |
≥ 60 |
≥ 42 |
≥ 60 |
≥ 30 |
|
≥ 17 |
≥ 12000 |
≥ 60 |
≥ 52 |
≥ 60 |
≥ 50 |
|
≥ 16 |
≥ 12000 |
≥ 60 |
≥ 50 |
≥ 60 |
≥ 48 |
|
≥ 17 |
≥ 12000 |
≥ 60 |
≥ 54 |
≥ 60 |
≥ 52 |
