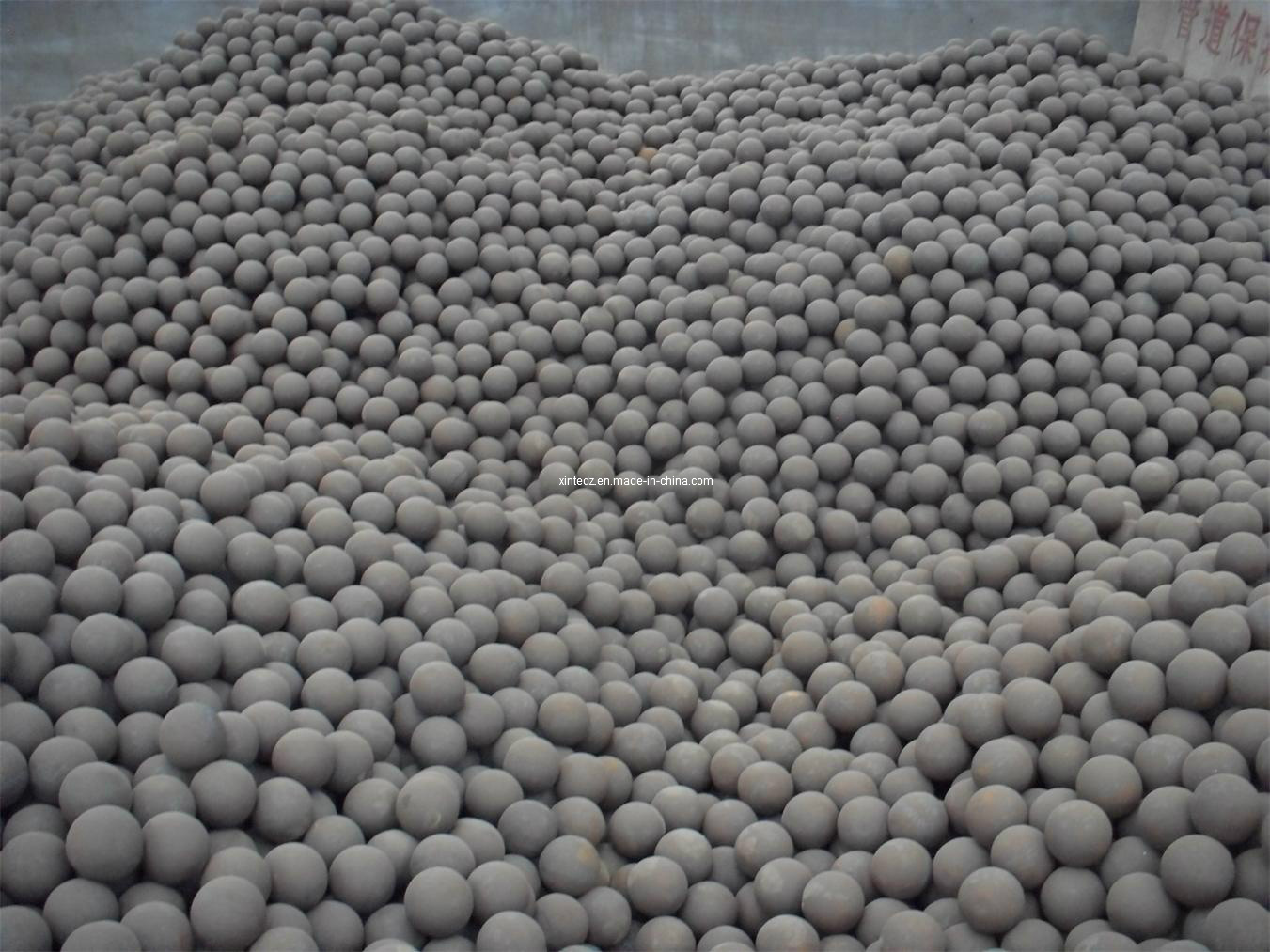

Forged Grinding Ball (Dia30mm)

Forged Grinding Ball (Dia30mm)
Price: US $ 750/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 20/Ton
Pay Type: L/C,T/T,D/P
JINAN XINTE CASTING AND FORGING Co., Ltd is one of the largest factory specialized in producing forged grinding balls and cast grinding balls in China. The company has passed ISO9001: 2000 quality system authentication. Our factory was established in 1971. There are180 employees now, covering an area of 20000 square meter. Our annual product of grinding balls is about 50000 ton. We mainly export our steel balls to Japan, Korea, Malaysia, Philippine, Canada, South-Africa, Chile etc more than 20 countries and areas.
The major character of our Grinding Balls is that: High hardness, low breakage, good wear-resistance, lower price. It is mainly used in cement plants, mines, power stations etc. The hardness and chemical composition of our grinding balls as follows:

1. Forged steel balls
Size: 20mm-180mm
Hardness: HRC55-65
Chemical elements: C: 0.52-0.65; Si: 0.15-0.37; Mn: 0.6-1.2; S & P: 0.04Max; Cr: 0.25Max.

2. Forged steel balls 75MNCR
Size: 25mm-180mm
Hardness: HRC58-65
Chemical elements: C: 0.7-0.9, Si: 0.65-1.00, Mn: 0.70-1.25, P/S: 0.04Max, V: 0.05-0.12
PRODUCTS SIZE HARDNESS CHEMICAL COMPOSITION
1) 65Mn Forged grinding ball   25mm-180mm HRC55-65  C: 0.52-0.65; Si: 0.15-0.37; Mn: 0.6-1.2; S & P: 0.04Max; Cr: 0.25Max
2) B2 Forged grinding ball  25mm-180mm HRC60-68 C: 0.75-0.90; Si:0.17-0.37; Mn:0.7-0.9; P: 0.035 MAX; S: 0.035MAX; Cr:0.40-0.70.
3) High chrome cast grinding ball   12.7mm-120mm

HRC58-65 Cr:11-27; C: 2.0-3.0; Si:1.0Max; Mn: 0.5-1.5; S & P:0.10Max;
4) Low chrome cast grinding ball   12.7mm-120mm

HRC47-55 Cr:1-3; C: 2.2-3.6; Si:1.0Max; Mn: 0.5-1.5; S & P:0.10Max;
5) Medium chrome cast grinding ball    12.7mm-120mm HRC47-60 Cr:4-10; C: 2.2-3.6; Si:1.0Max; Mn: 0.5-1.5; S & P:0.10Max;
Prod Model: Dia30mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
60mn,65mn,75mncr Material: Size From Dia20mm-150mm
Processing Type: Rolling Type
Material: 60mn, 65mn, 75mncr
JINAN XINTE CASTING AND FORGING Co., Ltd is one of the largest factory specialized in producing forged grinding balls and cast grinding balls in China. The company has passed ISO9001: 2008 quality system authentication. Our factory was established in 1971. There are180 employees now, covering an area of 20000 square meter. Our annual product of grinding balls is about 70000 tons. We mainly export our steel balls to Japan, Korea, Malaysia, Philippine, Canada, South-Africa, Chile etc more than 20 countries and areas.
The major character of our Grinding Balls is that: High hardness, low breakage, good wear-resistance, lower price. It is mainly used in cement plants, mines, power stations etc. The hardness and chemical composition of our grinding balls as follows:

1. Forged steel ballsSize: 25mm-180mmHardness: HRC55-65Chemical elements: C: 0.52-0.65; Si: 0.15-0.37; Mn: 0.6-1.2; S & P: 0.04Max; Cr: 0.25Max.
2. Forged steel balls (RCAB-1)Size: 25mm-180mmHardness: HRC58-65Chemical elements: C: 0.7-0.9, Si: 0.65-1.00, Mn: 0.70-1.25, P/S: 0.04Max, V: 0.05-0.12

3. High chrome cast ballsSize: 17mm-150mmHardness: HRC58-65; Chrome content: 11-27%
4. Low chrome cast ballsSize: 17mm-150mmHardness: HRC45-55; Chrome content: 1-3.5%
5. Medium chrome cast grinding balls

Size: 17mm-150mmHardness: HRC50-60; Chrome content: 5-8%
