Floor Deck Roll Forming Machine (GWC76-344-688)

Floor Deck Roll Forming Machine (GWC76-344-688)
Price: Negotiable
Min Order: 1

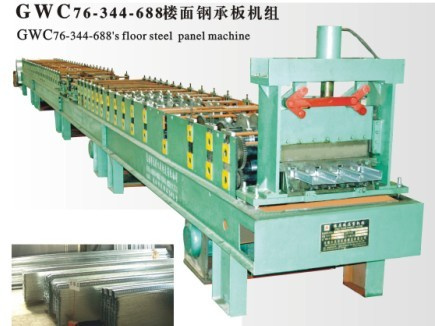

Floor deck roll forming machine
GWC76-344-688

1. Material: Q235 galvanized steel coil
2. Material thickness: 0.8-1.2mm
3. Coil width: 1080mm
4. Rolling speed: About 10meters/minute
5. Roll forming station: About 42 stations
6. Machine construction: Integral wall panel type
7. Transmission: Chain drive
8. Main power: 15 KW*3 motors voltage 380V frequency 50Hz
9. Power of hydraulic station: 7.5KW, 380V, 50Hz
10. Front punching of gaps: Hydraulic punch
11. Cutter: Hydraulic cutter
12. Material of blades: Cr12
13. Material of rollers: 45# steel, heat treatment, hard chrome plating
14. Diameter of axle: 80mm, parts of them are 100mm
15. Length measurement: Encoder
16. Control system: PLC, touch screen
17. Roll forming machine dimension: 24*1.6*2.0m
Length of whole production line: 35m
18. Roll forming machine weight: 35 tons, Weight of whole production line: 38 tons
Prod Model: GWC76-344-688
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wuxi Guangcai Machinery Manufacturing Co., Ltd., located in Qianqiao Industrial Zone at the bank of Taihu Lake, is a technology-oriented enterprise specializing in Cold Bend Steel Forming Machine manufacturing. The company covers 1800m2, with a build area of 1200 m2 and has a High-Qualitied R&D Group consisting of over 180 staffs, about 30 of which are Intermediate and Senior Technicians.

Our main products are of more than 20 series and 100 types, such as, color steel tile set, glazed tile set, floor deck set, gutter &down-pipe set, cable tray set, guard rail set, big span set, C' and Z' purline set, steel silo set, curving machine, folding edge and angel set, entire car panel set, etc. And widely used at home and abroad for light steel structure, motor vehicle and road and bridge building and so on. Our products covers more than 20 provinces and cities in China and goes to Southeast Asia, Middle East, Africa regions etc. Meanwhile, we are able to manufacture various kinds of complicated and non-standard cold bending machines according to the customer's design and requirements. If you want to contact with us, pls search "wuxi guangcai" through google, you will find our wedsite and mailboxaddress, pls send mail to Alicia

Thanks for the trust and support of domestic and international clients to my company. We believe that keeping improving for the best is the only access to success. And we'll the best to get it.
