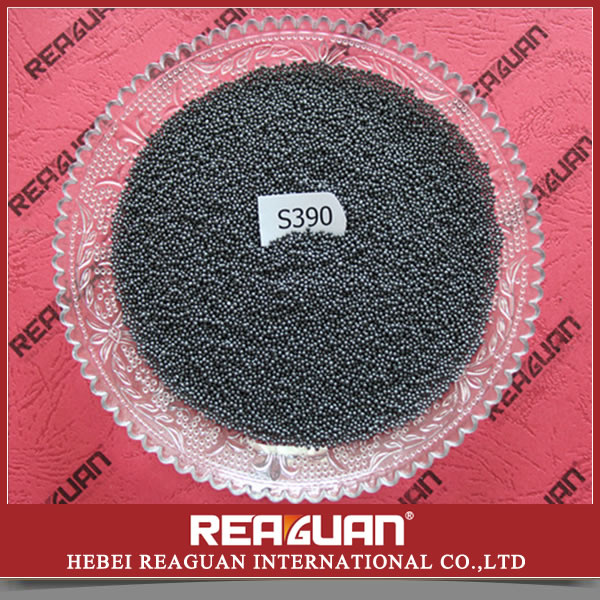

Factory Directly Forgings Derusting Descaling Steel Shot S390

Factory Directly Forgings Derusting Descaling Steel Shot S390
Price: US $ 680/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 20/Ton
Pay Type: T/T
Hebei Reaguan international CO. Ltd is a unique extroverted abrasives company, all the products sell to the international market. For example: Japan, Korea, Spain, France, USA, Malaysia etc. Our factory mainly produces: Steel shot, steel grit, stainless steel shot, Iron shot, Iron grit, cooper ball, aluminium ball and zinc ball this five series. Hebei reaguan supplying perfect quality and first class service, cooperate with the customers, develop and create resplendence together.


Specifications
Cast steel shots
1. High quality with low price
2. Steel Shot Specification: S70-S780,
3. Steel abrasives/steel shots

Cast steel shots:
1. Production specification: S930, S780, S660, S550, S460, S390, S330, S280, S230, S170, S110, S70
2. Chemical Composition of steel shots: C 0.70-1.20% Mn 0.60-1.20%, Si 0.40-1.20%, S≤ 0.05%, P ≤ 0.05%
3. Hardness: Normal: 40-50HRC Special: 52-56HRC, 56-60HRC Density: 7.4g/cucm
4. Steel shot is used for industrial foundry, forging plant, heat treatment shop, steel construction plant, container manufacturer, ship builder, auto and locomotive manufacturer.
5. Microstructure: Tempered Marten site High strength, durable Ervin life: Cast steel shot: 2000 cycles.


Product Description
Steel Grit Size:
G10, G12, G14, G16, G18, G25, G40, G50, G80, G120

Steel Grit Operative Standards:
In accordance with standards of GB/T18838.3-2008 Steel Shot and Steel Grit, SFSA20-66Cast Steel Abrasive, SAE J827 Cast Steel Shot, SAE J1993High Carbon Steel Grit, YB/T5149-1993 Cast Steel Shot, YB/T5150-1993Cast Steel Grit, ISO11124-3High Carbon Cast Steel Shot and Grit.


Products Steel Grit
Chemical Composition
C 0.70~1.20%
Mn 0.35~1.20%
Si 0.40~1.20%
S ≤ 0.05%
P ≤ 0.05%
Microhardness GP: 42~50HRC (399~509HV)
GL: 56~60HRC (620~713HV)
GH: 63~66HRC (795~889HV)
Hardness Deviation Max Deviation ± 3.0HRC
Microstructure Tempered Martensite or Sorbite
Density 7.4g/cm3

Steel Grit Types:
GP: Angular when new, this grit rapidly rounds off in use and its particularly suited descaling applications.
GL: Although harder then GP steel grit, also loses its sharp edges during shto basting and is particularly suited to descaling and surface preparation applications.
GH: Having maximum hardness, GH always remains angular in its operating mix. These abrasive are particularly effective in surface treatment processes and produce a uniform, etched finish, GH angular grit should only be used in wheel machines where working requirements take precedence over cost price considerations (for example with rolling mill cylinders or when a special finish is needed). For use mainly with compressed air equipment.
                                                          Cast Steel Shot Grain the degree distribute
The eyes count mm                                                            sizes
2.5 2.0 1.7 1.4 1.2 1.0 0.8 0.6 0.5 0.3 0.2
7 2.80 all
pass

8 2.36    all
pass

10 2.00 85%
min
  all
pass
all
pass

12 1.70 97%
min
85%
min
  5%
max
all
pass

14 1.40    97%
min
85%
min
   5%
 max
all
pass

16 1.18      97%
min
85%
min
  5%
max
all
pass

18 1.00        96%
min
85%
min
   5%
 max
all
pass

20 0.850          96%
min
85%
min
   10%
max
all
pass

25 0.710            96%
min
85%
min
   10%
max

30 0.600              96%
min
85%
min
    all
pass

35 0.500                97%
min
85%
min
10%
max

40 0.425                  97%
min
   all
pass
45 0.355                    80%
min
10%
max
50 0.300                    90%
min

80 0.180                      80%
min
120 0.125                       90%
min
200 0.075
325 0.045
SAE Standard S-780 S-660 S-550 S-460 S-390 S-330 S-280 S-230 S-170 S-110 S-70


Prod Model: S390
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hebei Reaguan international Co, Ltd is a unique extroverted abrasives company, the production all the products sell to the international market. For example: Japan, Korea, Spain, France, USA, Malaysia ect. Our factory mainly producess: Steel shot, steel grit, stainless steel shot, Iron shot, Iron grit, cooper ball, Aluminium ball and zinc ball this five series. Hebei reaguan supplying perfect quality and first class service, cooperate with the customers, develope and create resplendence together.
