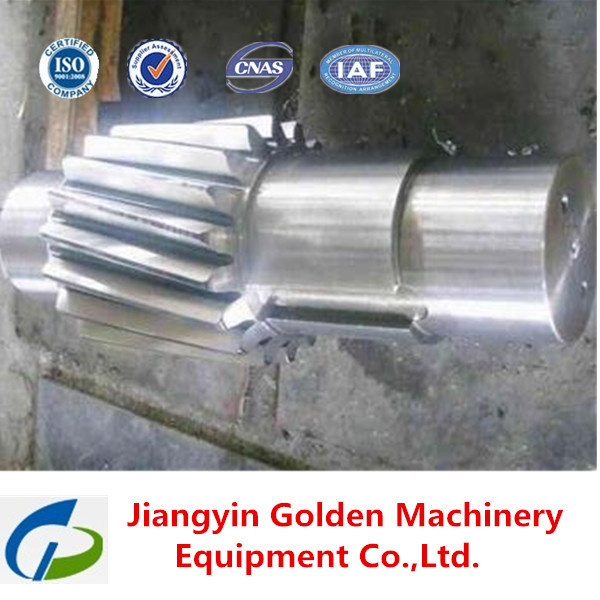

1, Commodity Name: Sae1045h Flanged Shaft/Shaft Forging
2, Standards: CCS, BV, ABS, DIN, GBJB, ASTM, ASME etc.
3, Certification: GB/T 19001-2008 / ISO 9001: 2008.
Manufacture License of Special Equipment of China
4, Materials: Alloy steel, carbon and stainless steel
5, Size Of The Forging Products:
Shaft: Dia 370mm max, Length 4000mm max, Weight 4T max.
Disk: Dia 1650mm max, Thickness 100mm max, Weight 4T max.
Cylinders: Dia 500mm max, Length 1700mm max, Weight 2.5T max.
Ring: As your requests.
6, Specification: As your requests.
7, Your enquiry will be highly appreciated.
Any questions, contact us please.
Thanks!
| Jiangyin Golden Machinery Equipment Co., Ltd |
|
| Tel: Fax: 86-0510-81661906 |
| Products: | Free forging/Forged Open die |
| Material: | Vacuum Degassed Ingot of Carbon Steel & Alloy steel & Stainless Steel |
| Forging Equipments: | 1.8tons, 6tons Electrical Hydraulic Hammer |
| 2.1ton, 750KGS, 560KGS, 200KGS air hammers |
| Heat treatment: | Normalized/quench and temper/annealed/solution treatment |
| Machining Equipment: | 1. Horizontal Turning Machine |
| 2. Vertical Turning Machine |
| 3. Milling Machine |
| 4. Drilling Machie |
| 5. CNC etc. |
| Quality System: | ISO9001: 2008 |
| Cetificate: | PED 97/23/EC, ABS, BV, GL, DNV |
| Products Type: | Maximum Diameter(mm) | Max. length(mm) | Maximum weight(ton) |
| Ring | 1500 | 400 | 35 |
| Shaft | 2000 | 8000 | 35 |
| Block | 3500 | / | 8 |
| Hollows | 1500 | 3000 | 8 |
| Flange | 4900 | 400 | 8 |
| Round bar | 2000 | 8000 | 15 |
| Unusualshapes | 1500 | 400 | 8 |
| Forging Ratio: | ≥ 3.5 |
| Annual Production Ability: | 28800 tons |
| QA & DOC: | EN10228 3.1 Certificate, Chemical Composition Report, Mechanical Properties Report, UT Report (according to EN10228-3, SA388, Sep 1921 etc. ) Heat Treatment Report, Dimensions Check Report |
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
