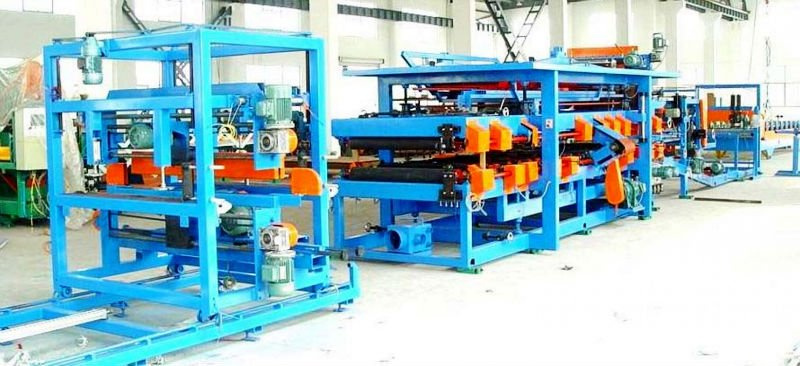

F Multifunction Color Steel Sandwich Panel Production Line

F Multifunction Color Steel Sandwich Panel Production Line
Price: US $ 42000-46000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Sandwich panel production line

Constituent parts Decoiler, roll forming machine, composite mainframe, cutting parts, find product rack

Forming size: 45000*3000*2800
Feeding width 1000mm/1200mm
Main motor power 32KW
Working speed 0-4.05m/min
Equipment weight 20T
Electrical system PLC Taiwan fengwei
Rolling thickness 0.3-0.8mm
Power source AC380V/50-60HX
Decoiler Bearing 5-7tons
Number of forming rollers 13rows
Thickness of chain 0.6 inches
Out diameter of shaft: 70 mm
Middle plate 12mm
Big frame 300 channel steel
Constituent  parts Decoiler,   roll  forming  machine,   composite  mainframe,   cutting  parts,   find  product  rack
Forming  size: 45000*3000*2800
Feeding  width 1000mm/1200mm
Main  motor  power 32KW
Working  speed 0-4.05m/min
Equipment  weight 20T
Electrical  system PLC  Taiwan  fengwei
Rolling  thickness 0.3-0.8mm
Power  source AC380V/50-60HX
Decoiler Bearing  5-7tons
Number  of  forming  rollers 13rows
Thickness  of  chain 0.6  inches
Out  diameter  of  shaft 70  mm
Middle  plate 12mm
Big  frame 300  channel  steel
composite  mainframe Squar  Steel  tube  80*160  Glue  shaft:   150    19roots
Prod Model: can do based on your detailed requirement
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality: We Provide The Technical Support for Whole Life of
Product Warranty: 12 Month
Type Of The Machine: We Can Design It as Customers Request
Color Of The Machine: We Aslo Can Do It as Customers Request
Control System: Automatic Computer Control
Type: Metal Rolling&Drawing Machine
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
