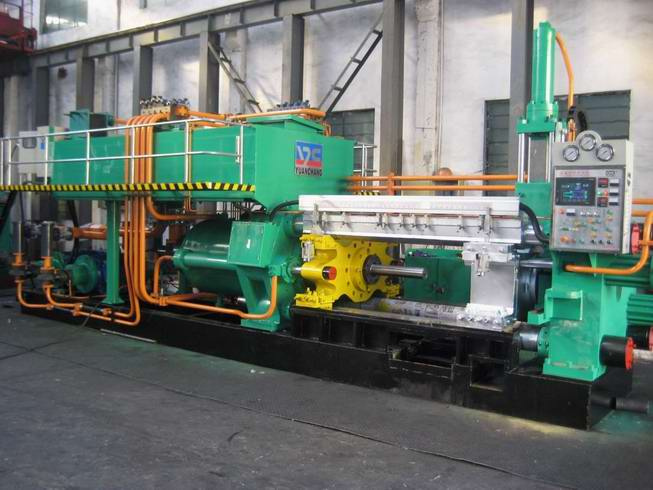

Extrusion Press (XJ-1630)

Extrusion Press (XJ-1630)
Price: Negotiable
Min Order: 1
Product Details:

21 MP

Place of Origin Jiangsu China

Brand Name YC

Model Number XJ-1630

Payment & Shipping Terms:

Delivery Time: 7MONTHS

Payment Terms: T/T

Working system pressure


21MPa


Extrusion force


Main cylinder:1648T


Side cylinder:159T


Container locking force


96T


Container open force


113T


Shear force


57T


Die change force


53T


Extrusion speed


0~14mm/s


Advance speed


280mm/s


Quick Back speed


300mm/s


Die open speed


130mm/s


Die close speed


180mm/s


Shear up speed


340mm/s


Shear down speed


260mm/s


Container size


Inner diameter: Φ185mm

length:800mm


Billet size


diameter: 7 inch

length:250~700mm

Prod Model: XJ-1630
Wuxi Yuanchang Machinery Manufactury Co., Ltd was founded in 1995 which is specially engaged in manulacturmg various non-ferrous metals pressure equipment. At present, it has produced series products with more than 30 specification in 3 major species from 300 tons to 3000 tons, which applied for aluminum, cooper, or magnesium processing industries and our products are used by a great many ferrous enterprise as well as scientific research institutes, colleges, universities and foreign clients. Now the products are distributed throughout the country and are exported abroad, such as USA, Argentina, Australia, Turkey, Uzbekistan, Russia, Lebanon, Syria, India, Kenya etc. The company is the domestic professional apotheosis and business pioneer of the extruder manufacturing line.

The company is one of the earlier established private limited enterprise in Jiangsu province. It has a floor space of over 30, 000m and strong machining capability, including a variety of production equipments, such as large-sized floor mounting boring machine, large-sized floor mounting lathe, double housing planer, vertical lathe, 8m extension lathe, etc. Varieties of extruding equipments and extruding production lines are manufactured and sold up to over 200 sets per year.
