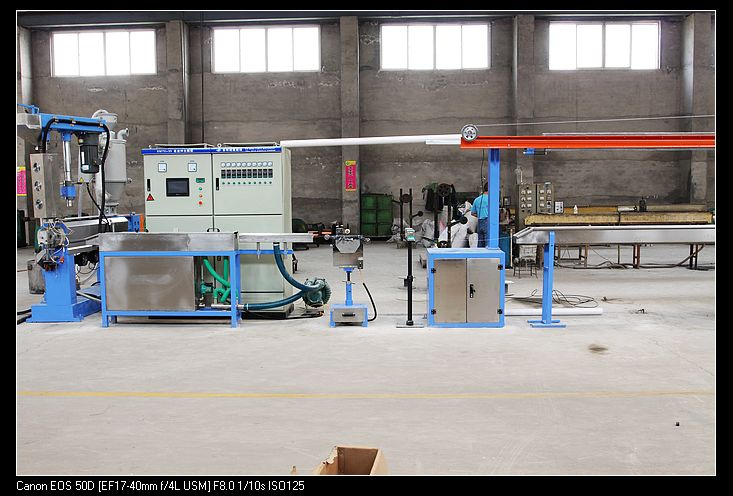

Xm-35 High -speed Plastic extruder
1. Main specification and application
1) Applicable to the diameter of the conductor: 0.5-3.0mm
2) Finished diameter size: 0.6-6.0mm
3) Extrusion capacity: 130kg/hr
4) Screw speed: 80r/min
5) Screw L/D 26: 1 (compression ratio 1: 3.0)
6) Extrusion line speed: Max 300m/min
7) Center height of the machine (mm): 1000 mm
8) L 30m * W4m *H 2.5m
9) Total energy cost: 40kw/hr
10) Direction: Rightward
2. Composition of the equipment
1) 400-630mm active pay-off machine
2) Straightening device
3) 70mm extrusion host & 35 mm color injection machine
4) PLC Control box
5) 50kg drying machine+300kg automatic suction feeder
6) 1.5 meter semi-closed stainless steel movable warm rinse sink
7) 8 meter U-shape stainless steel fixed water sink
8) Traction machine
9) 630mm double shaft take-up machine
10) 12 meters horizontal type accumulator stand (with guide rail)
11) Diameter measure device
12) High speed printer
13) High frequency spark text machine
Langfang Xinming Cable Machinery Industrial Co., Ltd. is founded in August, 1984, with an area of 25000 square meters and the staff of 200 persons, including 2 senior engineers, 6 engineers, and 100 technicians. It's the professional manufacturer for the electrical wire and cable machinery facility. In October, 2005, the company sets up the copper clad aluminum workshop with 100 different high-speed wire-drawing machines. And the factory is situated in West of Road, South of the Shige Village Toll Bridge in 106 National Highway, Wen'an County, Hebei Province. The geographical position is superior and the transportation is convenient. Now the company has strong technical force. The main products of the company are: High-speed extruder SJ50, SJ70, high-speed multi-function automatic whipping (whisking) machine, SJ30\SJ45\SJ65\SJ90\SJ120\SJ150\SJ200plastic extruder full-set production line, cable-former and so on. And the products are popular among the general customers.
Besides, the company has researched CCA (M) according to the standard of developed country at aboard. And the products have the same merits as the copper: Good conductivity, high intensity, strong welds ability, easy-processing, etc. Moreover, these products have more advantages than the copper: Light weight, soft wire, low cost, etc. So the CCA can be widely used in the CATV, net wire, communication cable with large capacity, control cable, power cable, etc.
The company set up complete technology department, test department and after-service department with the operation guideline of good credit and superior quality. And there are many excellent technicians with positive enterprise idea. Moreover, the enterprise spirit is development, cooperation and innovation.
Our management policy: "customer-centric, market-headed, science-guided, management-guaranteed". Our enterprise spirit: Practicality, efficiency, development, innovation. Our aim is to meet customers' requirement and get customers' trust. Our tenet: High-quality product, reasonable price, in-time delivery, complete after-service. Our logos: Development, cooperation, innovation.
Sincerely welcome you for business! Let's cooperation for the brilliant future!
