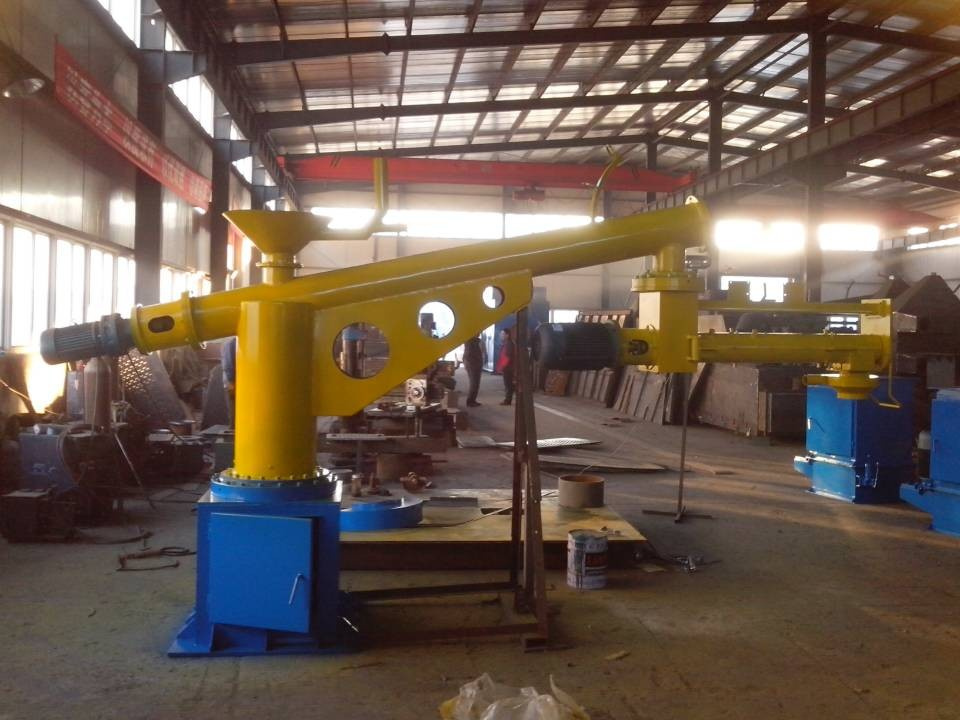

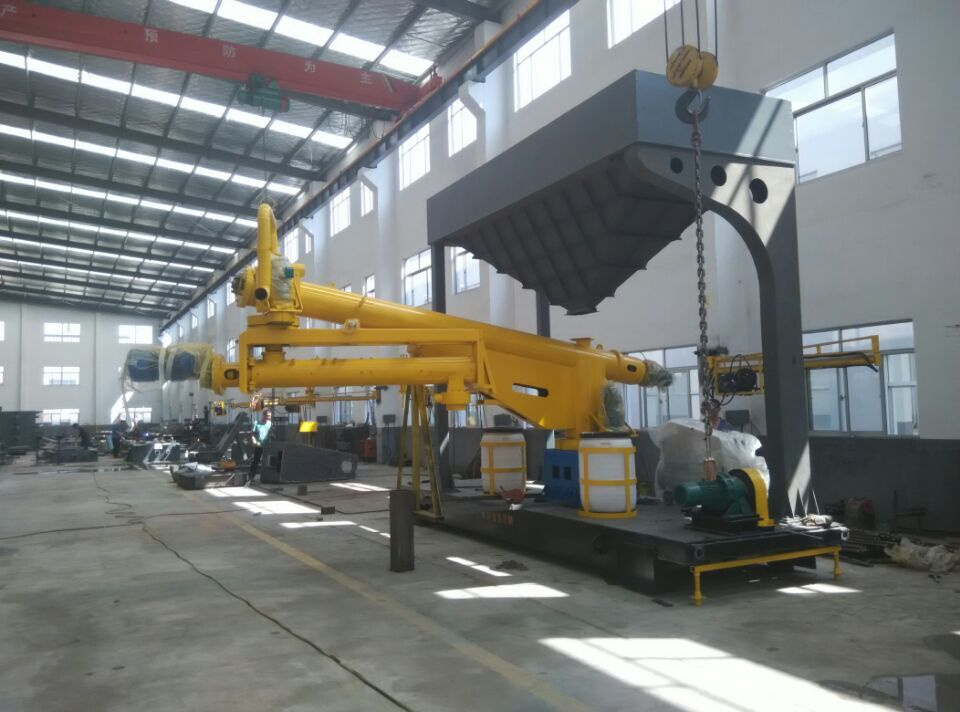

Ester-Hardening Water Glass Sand MixerComposition:
Main equipment

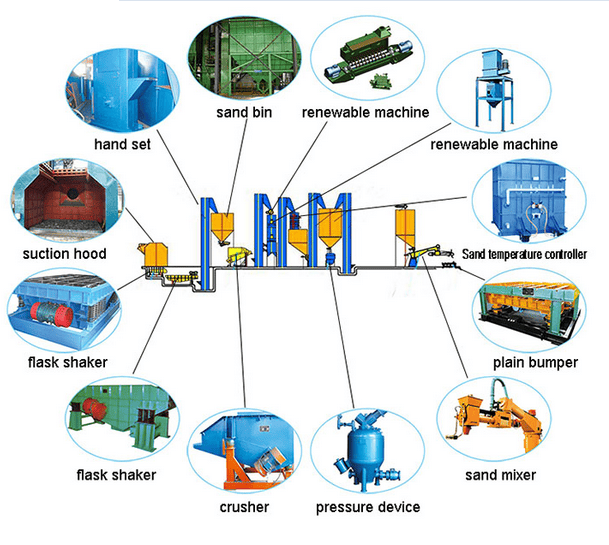

Shakeout machine, Vibrating conveyor, Belt conveyor, Pneumatic conveyor, Magnetic separator, Air seprator, Sand screening device, Bucket elevator, Chain elevator,Crusher, Sand reclamation device, sand temperature adjustment device, Cooler, Drying device, Electronic scale device, Continuous sand mixer, Molding machine, Dust collector, Electronic control system, etc.
Characterics:
1.light heavy
2.steady flow
3.mixing evenly and fully
4.easy operating and maintanceBenefits to Environment from foundry sand reclamation plant
Advantages:
1.avoids the disposal of resin coated sand.
2.minimizes the soil pollution
3.avoids ground water pollution
4.avoids excessive mining
Applications:
1.Resin coated sand is utilized in foundry to produce a casting of high precise dimensions,smooth surfaces
2.During casting process the resin gets burnt off due to high temperature of molten metals forming cores of half/full burnet resin
Our service:
Turn-key solution service
3D and CAD design
Good after-sale service
Packing&Shipping service
Packing: Nude packing and bulk packing
Shipping: If our clients do not have a certain port, we recommend Qingdao.
Technical data:
| Model | Productivity(t/h) | Send Sand Arm Swing Radius(mm) | Stir Sand Mixing Up Swing Radius(mm) | Sand Mouth Height(mm) | Assembly Power(kw) |
| S2810 | 10 | 3000 | 1300 | 1800 | 33 |
| S2815 | 15 | 4000 | 1800 | 1900 | 37 |
| S2820 | 20 | 3000/5000 | 1800 | 1900 | 40 |
| S2825 | 25 | 3000/5000 | 2100 | 1500 | 44 |
| S2830 | 30 | 4000/7000 | 2100 | 1500 | 53 |
| S2840 | 40 | 5000/7000 | 2100 | 1600 | 64 |
| S2850 | 50 | 5000/7000 | 2100 | 1600 | 70 |
| S2860 | 60 | 5000/7000 | 2100 | 1600 | 75 |
Qingdao Shengmei Machinery Co., Ltd., which has a dozen years of history, is specialized in vacuum process casting machines, lost foam molding machines and resin sand reclamation equipment. Having more than ten employees who is specialized in mechanical design, electrical design and foundry technology, our company has wide experiences in research and development, production, installation, debugging and service. Based on good business reputation, scientific internal management, excellent product quality and service and a range of social acceptance, our company has established the dominant position in the field of vacuum process casting, lost foam molding and resin sand reclamation.
Qingdao Shengmei Machinery Co., Ltd., which has strong power of making and processing, covers an area of 5000 square meters, with 6000*2500 Planer type milling machine, 4000*1250 Planer type milling machine, 1800*1500 boring mill, 4000*1500 Single column boring and milling machine and 2610 vertical machine center. Our company integrates research and development, production, installation, debugging and after-sale service to ensure our machines' normal and reliable operation.
So far, we have about 100 clients who are from fields of car, mining machinery, concrete machinery, hoisting machinery, reducer, engineering machinery, valve, mold and machine tool, which has dozens of varieties, for example, axle, wear parts for mine, wear parts for cement, counterweight iron, reducer enclosure, engineering machinery segments, valve seat, aluminium alloy mold and machine tool body. Our clients spread all over China and some of them are doing export business. By now, all the users have been checked and accepted.
Vacuum process casting and lost foam molding machine absorb modern technology of Japan and Germany. We provide you with foundry technology services and various molding style, such as car-type, rotating table type and automatic molding line.
Lost foam molding equipment adopts Mechanical turbo regeneration methods to achieve the reclamation of used sand. The machines of shakeout, crushing, reclamation, cooling, transporting, molding and dust collection are in good quality and wonderful service.
We always bear "Honesty is the source and we should produce boutique" in mind and insist on the business policy of "quality of survival, innovation and development, to manage for efficiency". With first-class technology, first-class products and first-class service, we wholeheartedly cooperate with you.
All colleagues of Qingdao Shengmei Machinery Co., Ltd warmly welcome you to visit our factory, guide our work and negotiate business with us.
