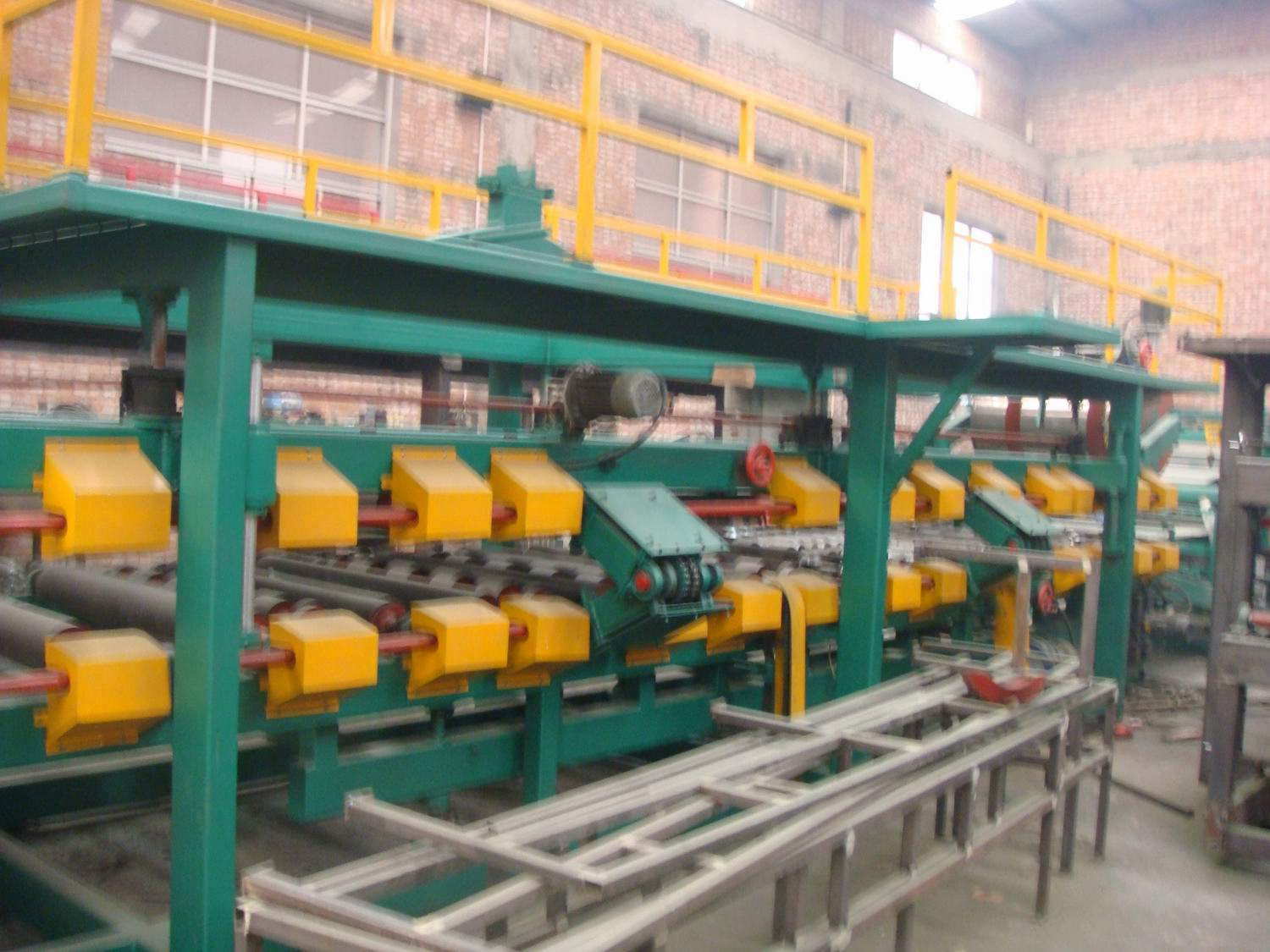

EPS forming machine
Width of plate: 1000mm/1200mm
Main parameter
Composition: Frame of put material, roll forming machine, compound machine, cutting parts, frame to drag material
Size: 45000mm*3000mm*2800mm
Motor power: 32KW
Speed of produce: 0-4.05m/min
Weight: 20T
Control system: PLC, touch screen
Thickness of the plate: 0.3-0.8mm
Advantages: Flat panels no scratches, cohere firm
Power: AC380V/50-60HX
Frame of put material: Include frame and material core, weight 5-7t
Roll forming machine: Molding 13 row, axle: Diameter 70mm middle plate: 12mm frame: 300 channel steel chain: 15.24mm
Composite board host: Square tube: 80*160 rubber axle: 150 19root
Cutting parts: Pneumatic walk
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
