| Price: | US $ 1-5SET |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1SET |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| One | The workpiece could be heated partly and integral |
| Two | The inductor produced according to your requirements |
| Three | The electronic energy saving is higher 8% than the same occupation |
| Four | The IGBT technology is introduced by our own factory |
| Five | Multi-functional: For Quenching/ Hardening/ Brazing> Forging/ Diathermy/ Welding/ Melting |
Frequency of 15kHz or so, about the work through the heat φ45mm can wield a variety of bar and carbide cutting tools. | |
One

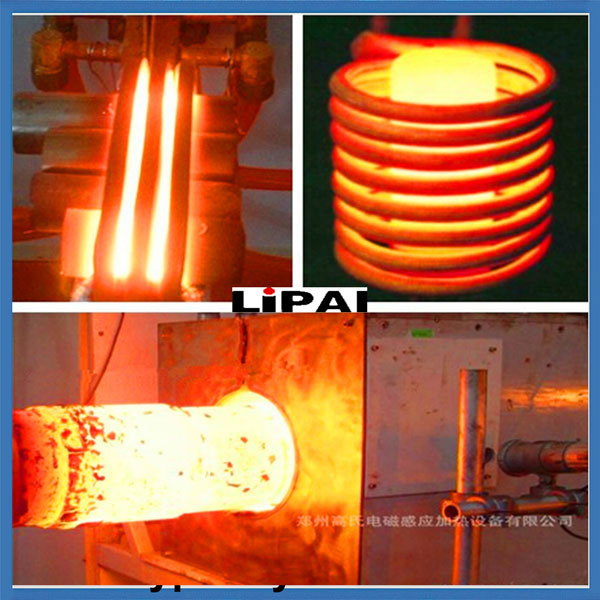

| Plate heating, bending and forming, such as: brass, steel strenching, bending, smashing head, wire, heating wire nail, stainless steel and ec. |
| Two | Standard parts, fasteners through the hot forging, such as the hardware through heat, pliers, wrenches and other heat through hot forging. |
| Three | Real axle and hot charging, rotor, bearings, gears and other parts of the thermal loading. |
| One | The electromagnetic induction heating equipment could be package standard by wooden case |
| Two | |
| Three | The equipment could be shipping by Qingdao port and Shanghai port, and also could be develivery by air transport. |
Our Service:
The electromagnetic induction heating equipment we produced more than 5 years, and the service we could support as follows:
| One | Engineers availabe to service overseas. |
| Two | The delivery time would be only 3-7 days if there is stock. |
| Three | The warranty we supported is free replacements spare parts for 12 months |
| Four | Transportation we supported is shipping by sea, by air, by express DHL. |
| Five | Payments:L/C, T/T, D/P, D/A, Western Union, MoneyGram, Paypal, Cash is allowed. |
1, The frequency range of different type of induction heating equipment ?
As the example of hardening/ quenching, it's range as follows:
| Type | Difine Scope | Depth of quenching |
| High-frequency | 50KHz--700KHz | 0.5-1.2mm |
| Super-audio frequency | 10KHz--50KHz | 1.5-2.5mm |
| Intermediate frequency | 500Hz--10KHz | 3.0-10mm |
2. The working theory of electromagnetic induction heating equipment ?
The current through the induction, the copper coil generally, there will produce alternating magnetic field, as the workpiece was put into the induction, the workpiece's surface will cutting alternating magnetic field lines and the workpiece will have alternating current. Then these current will made the atom of the workpiece processing irregularly, the workpiece's temperature will be increasing rapidly for the atoms' severly friction. finally achieve our heating goals.
3. The types of equipment ? Customized whether allowed ?
We produce different type equipment such as : 16kw, 30kw, 50kw, 60kw, 80kw, 100kw, 120kw, 160kw, 200kw, 400kw.
The induction heating equipment could be produced according to your requirements.
The suitable equipment we could recommended need the special workpiece you offered.
4. The certification of company ?
This is our CERTIFICATE OF ORIGIN.
5. Whether the inductor is customized ?
The inductor is produced according to your requirements.
6. How to connect us ?
Telephone: 86-371-53778429 Fax: 86-371-86023266
Add: No.16 Jingbeiyi Road, Economia and Developing Zone, Zhengzhou, Henan, China
Any more question?

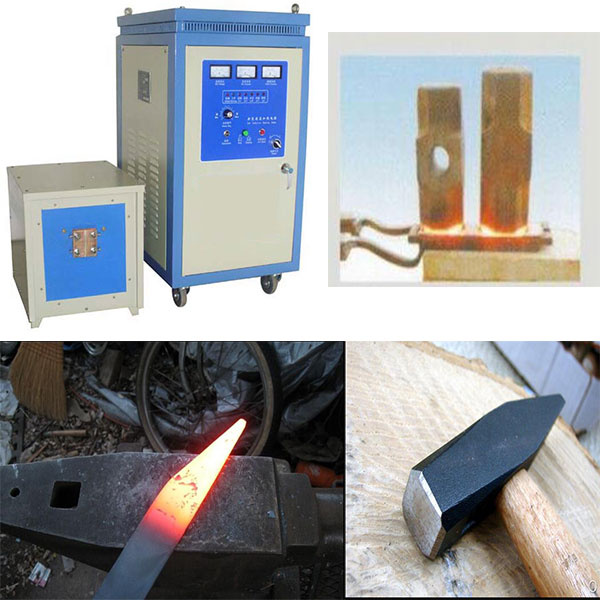

| Prod Model: | WH-VI-50 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Energy Saving: | 15%~30% |
| Electric Consumption: | Save 10%-30% Electric Than Other Heating Method |
| Principle: | Series Resonance Circuit |
| Circuit: | IGBT Series Resonace Circuit |
| Work Hour: | 24 Hours |
| Cooling Method: | Water Cooling |
| Heating Method: | Induction Heating |
| Coils: | Tailor-Made According to Size of Your Work Pieces |
| Transport: | by Sea, by Air, by DHL |
| Delivery Time: | 10-15 Days If Stock |
| Forging Forming Method: | Induction Forging |
