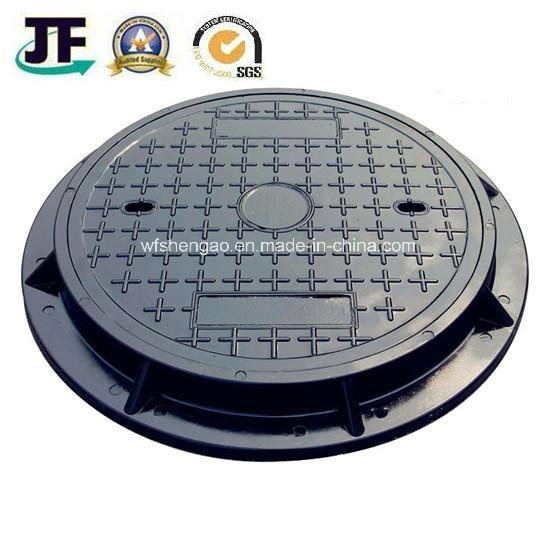

EN124 Sand Casting Ductile Iron Manhole Covers Trench Drain for Drainage
Cast Iron Manhole Cover Price Hinged Manhole Cover
Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
Clear Opening: 390*390mm
Frame size: 490*490mm
Frame depth: 75
Testing Loading: D400
Material: Ductile iron GGG500-7&400-12
Standard : EN124
1. Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.
2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.
| Item: Drain,Grating,Manhole Cover |
| Materail:Cast Gray Iron,Ductile Iron |
| Shape:Round,Square,Rectangle,and Triangle |
| Process:Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection |
| Size range 200mm to 1200mm,Weight range 7kgs-154kgs |
| Surface treatment:Spray coated,Epoxy,Painted,Enamel etc. |
| Certificate:ISO9001:2000,SGS |
| Class:A15,B125,C250,D400,E600,F900 |

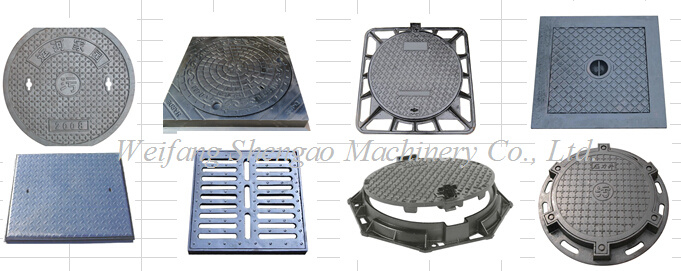

Manhole Cover

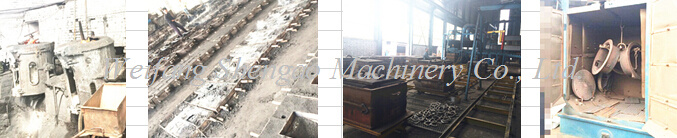

Sand Casting Process

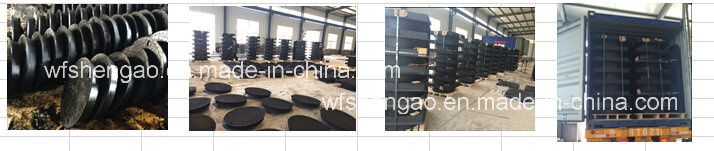

Package and Shipment
| name | Cast Iron Manhole Cover Price Hinged Manhole Cover |
| material | ductile iron GGG50/7, gray iron |
| standard | EN124/1433/1563 |
| class | A15,B125,C250,D400,E600,F900 |
| shape | Round |
| Size | 600*600,840*840, 850*850 or as per customers' drawing |
| paint | bituminous black |
| advantage | Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance |
| molding | DISA Line |
| process | Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection |
| application | footway, pedestrians, car parks, aircraft pavements |
| certificate | BSI, ISO9001:2000 |
| Strict quality control | Tensile strength: 500Mpa Yield stress : 320Mpa
Elongation rate : 7%
Hardness: HBS170-230
|
| Main products | Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts |
| other information | we can cast and process any type of iron casting products according to customers' drawing or samples |
Size( customized available for other dimensions)
| Order No. | Inner dia | grating | Outer dia | Height | Weight(kg) | Pressure(KN) |
| F0536-1 | 252 x 252 | 326 x 326 | 360 x 360 | 36 | 13.5 | C250 |
| F0536-2 | 350 x 350 | 400 x 400 | 470 x 470 | 40 | 20 | C250 |
| F0536-3 | 450 x 450 | 500 x 500 | 580 x 580 | 50 | 32 | C250 |
| F0536-4 | 550 x 550 | 600 x 600 | 680 x 680 | 50 | 39 | C250 |
| F0536-5 | 350 x 350 | 400 x 400 | 500 x 500 | 100 | 36.2 | D400 |
| F0536-6 | 450 x 450 | 500 x 500 | 600 x 600 | 100 | 49 | D400 |
| F0536-7 | 560 x 560 | 600 x 600 | 700 x 700 | 100 | 62 | D400 |
Material composition:
| Tensile strength | 560Mpa | Yield strees | 340Mpa |
| Elongation rate | 7.5% | Hardness | 210HBS |
1. Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
2. Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
3. Q: Do you provide customized products?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
4. Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.If there's anything I can help, please feel free to contact with me.
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
