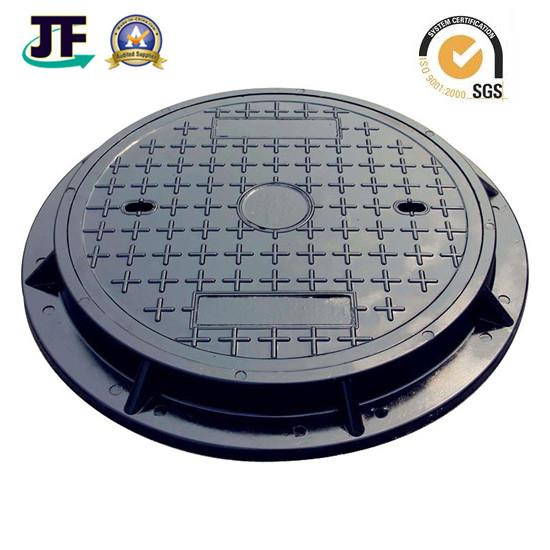

En124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover

Name: En124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover
Brand: china-castingforging.com
SKU: 693961572
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	US $ 1200-1400/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Weifang Shengao Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	14-33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	En124 Sand Cast Iron Casting Manhole Cover/Iron Ma
Raw Material:	Ductile Iron, Cast Iron, Qt500
Size:	Dn100-1000mm
Tchincs:	Casting
Brand Name:	Shengao,OEM
Factory:	Over 15 Years'experience
Feature:	Anti-Corrosive,Easily Assembled,Waterproof
Shap:	Circle,Square,Octagonal,Furcation
Metal Type:	Cast Iron,Steel ,Iron
Market:	Global
Type:	Clay Wet Sand

Product Description

EN124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover

Manhole Cover,square manhole cover,cast iron manhole cover,ductile iron
manhole cover,round manhole cover,drain manhole cover,iron manhole cover,
grey iron manhole cover

Sand Casting manhole cover, Investment Casting manhole cover (Precision Casting/Lost-Wax Casting manhole cover).
2.Casting experience: 10years,OEM service available
3.Surface: blackening, galvanize, plating,painting,etc.
4.Material: QT, iron, steel
5.Technology: sand casting
6.Advantages: Delivery on time, according to the demand for materials
7.Packing: wooden case or as your requirement.
8.Deliverywithin 20 days after receiving last confirm information.
9.Production Capacity: Sand Casting 2000 tons per month,Investment Casting 120 tons per month.
10.Certification: ISO 9001:2008.

EN124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover

1.ISO9001-2008.

2.Has advanced euipment and over 15 years experience.

3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.

5. Adequate supply capacity. Punctual delivery time.

EN124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover
Company Profile:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.

En124 Manhole Hatch Covers/Cast Iron Cover Sand Casting

Characteristics of our manhole cover:

1. Material: cast gray iron, ductile iron.

2. Shape: round, square, rectangle and triangle.

3. Diameter: from 200mm to 1200mm.

4. Weight: from 7kg to 154kg or according to customers\' requirment

5. Packing: in wooden pallet with plastic layer

6. Annual output: 10,000 tons

7. Coating: black bitumen or Coating as per customers\' requirement

8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.

D400 Clear Opening 400mm  Casting manhole cover/cast iron manhole cover price
Clear Opening: 390*390mm
Frame size: 490*490mm
Frame depth: 75
Testing Loading: D400
Material: Ductile iron GGG500-7&400-12
Standard : EN124

EN124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover
1. Advantage of our Manhole Covers
   1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
   2) Against theft and safety, double sealed, watertight type
   3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
   4)Free charge of design.
5) 3 day pay for ready if the request in storck.

2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.
EN124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover

Material specification: 1. carbon & low alloy steel;
                                         2. stainless steel;
                                         3. high alloy & wear resist steel;
                                         4. gray iron; ductile iron;
                                         5. malleable iron;
                                         6. alloyed cast iron;
                                         7. aluminum alloy;
                                         8. cooper alloy;
                                         9. zinc alloy

Range of casting weight: 0.50kg-450kg

Heat Treatment: Normalizing
              Quenching
              Tempering

OEM Customized Metal Iron Casting Parts with Drawings or Samples

OUR MACHINING PROCESS :
Occupies an area more than 6,000 square meters
More than 40pcs big CNC lathes    Ø500 - Ø1200
Machining center   1400 x 825 x 1000mm 4 axis

Can provide services: turning; milling; grinding; drilling; inserting; broaching; boring; polishing

Surface preparation: passivation; polishing; plating; coating; painting; zinc phosphate; dacrotized / dacromet technology
OEM Customized Metal Iron Casting Parts with Drawings or Samples

Item		Material	Technical Process
1	Ductile iron castings	ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
2	Grey iron castings	ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
3	Carbon steel castings	ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting
4	Stainless steel castings	ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
5	Alloy steel castings	DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting

Manhole Cover

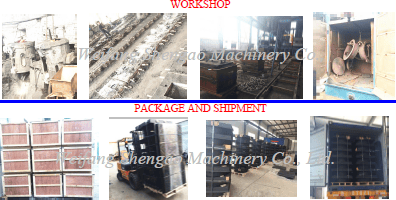

Workshop
Quality ControlQuality First,Pric Best,Service Foremost !

We assure you of our best services at all times !

EN124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover

Item	En124 Manhole Hatch Covers/Cast Iron Cover Sand Casting
Size	DN100-1000mm
Surface treatment	black painted, oil, painting
Shape	square, round
Material	ductile iron, cast iron, QT500
Heat Treatment	can be as your requirement.
Advantages	Delivery on time, according to the demand for materials
Packing	wooden case or as your requirement.
Delivery	within 30 days after receiving last confirm information.

EN124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover

Item	Description	Material	Technical Process
1	Ductile iron castings	ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
2	Grey iron castings	ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
3	Carbon steel castings	ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting
4	Stainless steel castings	ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
5	Alloy steel castings	DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting

EN124 Sand Cast Iron Casting Manhole Cover/Iron Manhole Cover
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized manhole cover?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.

WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.

Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
