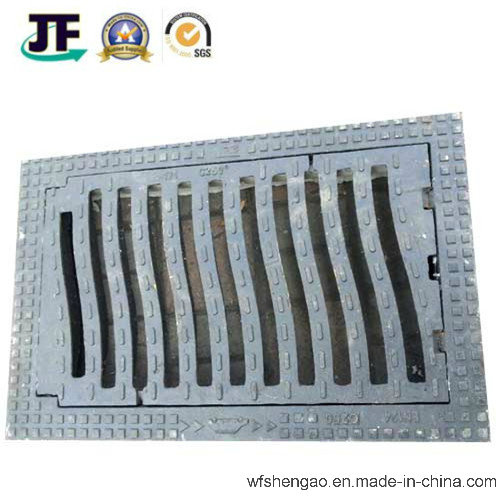

En124 Rectangle Ductile Casting Iron Manhole Cover with OEM Service
1.Casting experience:10years,OEM service available.
2.Process:Sand Casting, Investment Casting (Precision Casting/Lost-Wax Casting).
3.Production Capacity:Sand Casting 2000 tons per month,Investment Casting 120 tons per month.
4.Certification:ISO 9001
1.Process:Sand Casting, Investment Casting (Precision Casting/Lost-Wax Casting).
2.Casting experience:10years,OEM service available
3.Surface:Blackening, galvanize, plating,painting,etc.
4.Material:QT, iron, steel
5.Technology:Sand casting
6.Advantages:Delivery on time, according to the demand for materials
7.Packing:Wooden case or as your requirement.
8.Deliverywithin 20 days after receiving last confirm information.
9.Production Capacity:Sand Casting 2000 tons per month,Investment Casting 120 tons per month.
10.Certification:ISO 9001:2008.
Typical products:
Scaffold fittings, Template parts, Railway fittings, ring flange , electromagnetic steel cover, piston, pressure plate, center plate, wear plate, cylinder, impeller, disc etc.
Manufacturing process:
1.Sample or Drawing by customer
2.Tooling proposal&Discussion
3.3D Tooling Design
4.Tooling production
5.Rough parts manufacturer
6.CNC Machining
7.Fitting&Finish
8.Tooling Measurement&Check
9.Assembly
10.Trial Production
11.Correction
12.Final Trial
13.Samples Inspection
14.Sample Approval by customer
15.Tooling Approval
16.Ductile iron sand casting
En124 Rectangle Ductile Casting Iron Manhole Cover with OEM Service
2)Company Profile:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.
Characteristics of our manhole cover:
1.Material:Cast gray iron, ductile iron.
2.Shape:Round, square, rectangle and triangle.
3.Diameter:From 200mm to 1200mm.
4.Weight:From 7kg to 154kg or according to customers\' requirment
5.Packing:In wooden pallet with plastic layer
6.Annual output:10,000 tons
7.Coating:Black bitumen or Coating as per customers\' requirement
8.Use :Municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
1.Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No.GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.
2.Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
A) Automatic machine lines
B) Moulding boards
C) Green sand with hand moulding
3)Guarantee:GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.
Item | Description | Material | Technical Process |
| 1 | Ductile iron
castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 2 | Grey iron
castings | ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 3 | Carbon steel
castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 4 | Stainless steel
castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
| 5 | Alloy steel
castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
En124 Rectangle Ductile Casting Iron Manhole Cover with OEM Service
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized manhole covers?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything I can help, please feel free to contact with me.
