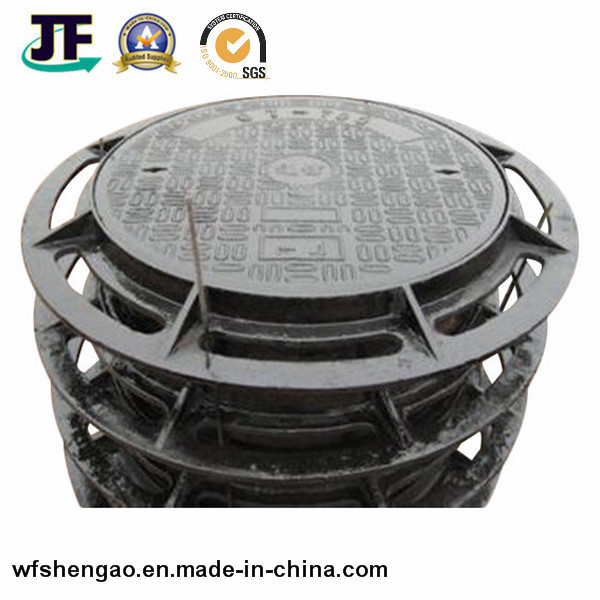

En124 D400 Dn Heavy Duty Casting Iron Manhole Covers

En124 D400 Dn Heavy Duty Casting Iron Manhole Covers


1. Nice appearance
Composite resin color covers are present in the material inside is not a simple diagram on the surface, the color persistence

2. High strength
Its strength is ten times as rigid PVC, much higher than the absolute strength of aluminum to achieve the level of ordinary steel;

3. Corrosion-resistant
It stainless, no mold, no rot, no paint, the ability of many gas, corrosive liquid medium;

4. Fatigue resistance
Composite covers have some flexibility, which makes the people who work in the above long-term comfort, as a work platform, reducing the staff of the legs and back tension, increase the comfort of working to improve efficiency, human engineering scientists have been recommended;

5. The overall economic good
With more than ordinary carbon steel, composite material covers integrated, low cost, although its one-time investment than ordinary carbon steel, because of its long life, and can be used two decades, and no maintenance, thus The overall economic efficiency is much better than using carbon steel;

6. Easy installation
The covers makes use of composite materials greatly reduce the weight of components, thus reducing the weight of the support structure, installation does not require use of lifting equipment, which saves and convenient.

7. Safety and security:
Covers the installation and use of composite materials, the process will not crash and have a spark, especially for use in explosive environments, in addition, the covers with non-slip surface to prevent sliding down to reduce accidents.

8. Application:
Municipal, engineering, telecom and so on
Type: Round, square

9. Supply Ability: 1000 Ton/Tons per Month

10. Model Number: Diameter 500mm-800mm

11. Packaging Detail: Wooden cases or as per client's requirement

12. Delivery Detail: Within 30 days after receipt of order

13. MOQ: 20 sets
14. OEM service, Anti -shock
15. Material: Ductile iron grey iron
16. Delivery time: 10days

Mannhole cover other features:
1, Product information:
Manhole cover are manufactured for construction and public use. Manhole covers shall be smooth and free from sand holes, blow holes, distortion or any other defects
2, Material:
A, Ductile iron GGG40/50
B, Grey iron GG25
3, Designs:
A, EN124 A15, B125, C250, D400. E600, F900
B, A60005 for casting design
C, Major standards designs available
D, As per customer's drawings or samples
4, Process
Molding boards---green sand with hand molding---coating----cold applied black bitumen or coating as per customer's requirement

name	manhole cover
material	ductile iron GGG50/7, gray iron
standard	EN124/1433/1563
class	A15,B125,C250,D400,E600,F900
shape	Round
Size	600*600,840*840, 850*850 or as per customers' drawing
paint	bituminous black
advantage	Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance
molding	DISA Line
process	Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection
application	footway, pedestrians, car parks, aircraft pavements
certificate	BSI, ISO9001:2000
Strict quality control	Tensile strength: 500Mpa                        Yield stress :  320Mpa Elongation rate :  7% Hardness: HBS170-230
Main products	Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts
other information	we can cast and process any type of iron casting products according to customers' drawing or samples

   Size( customized available for other dimensions)

Order No.	Inner dia	grating	Outer dia	Height	Weight(kg)	Pressure(KN)
F0536-1	252 x 252	326 x 326	360 x 360	36	13.5	C250
F0536-2	350 x 350	400 x 400	470 x 470	40	20	C250
F0536-3	450 x 450	500 x 500	580 x 580	50	32	C250
F0536-4	550 x 550	600 x 600	680 x 680	50	39	C250
F0536-5	350 x 350	400 x 400	500 x 500	100	36.2	D400
F0536-6	450 x 450	500 x 500	600 x 600	100	49	D400
F0536-7	560 x 560	600 x 600	700 x 700	100	62	D400

Material composition:

Tensile strength	560Mpa	Yield strees	340Mpa
Elongation rate	7.5%	Hardness	210HBS
Material	GJS500-7(GGG50)	Standard	EN 124

Quality First, Pric Best, Service Foremost!
We assure you of our best services at all times!
