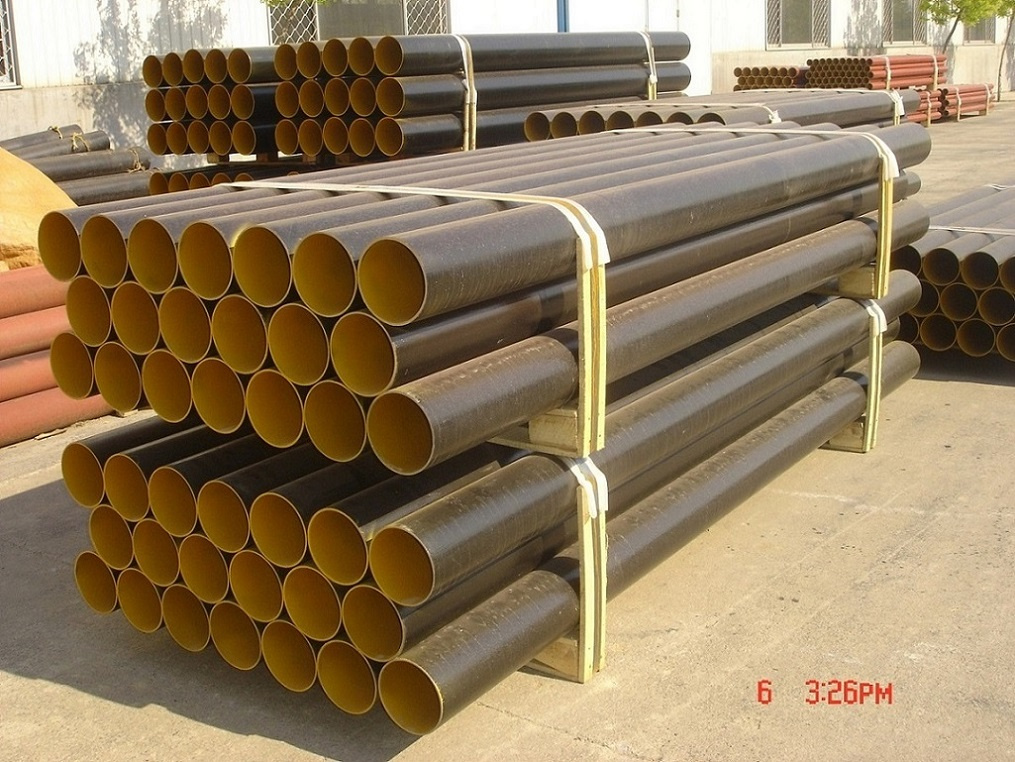

En 877 Cast Iron Pipe

En 877 Cast Iron Pipe
Price: US $ 9.5PC
Trade Terms: FOB,CFR,CIF
Min Order: 100PC
Pay Type: L/C,T/T
Brief introduction:
This product is widely used in building drainage system because of it's excellent performance in noise suppression, fire resistance, low thermal expansion and chemical resistance. At the same time, it is solid and durable and easy to install. Drainage system include socketless centrifugal cast iron pipe, socketless fittings, joints and sealing ring.

Manufacturing method:
centrifugal casting.


Product advantages:
1.    Durability with long time service life
2.    Inflammable, free from toxic matter
3.    Anti-corrosion and resistance to aging
4.    Lower expansion and contraction
5.    Lower noise
6.    Aseismatic because of it's flexible and high tolerant body
7.    Anti-leakage and seep
8.    Easy to be installed
9.    Good design and appearance

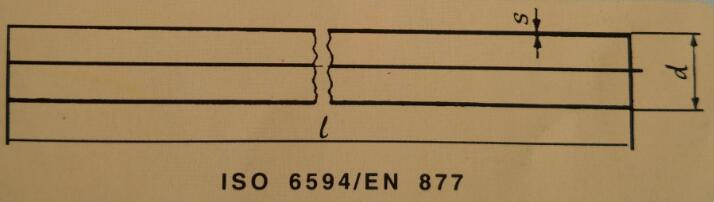

Pipe sizes:

 Unit: mm      Pipe length: 3000 + 20mm
Specification              d
Outside diameter
            S
Wall thickness
Weight/PC
   3000m
     KGS
  Packing
Pcs/pallet
SizeToleranceSizeMin
4048+2
-1
3.02.59.468
50583.53.01350
70783.53.017.750
75833.53.018.946
1001103.53.025.234/38
125135+2
-2
4.03.535.420
1501604.03.542.217
200210+2.5
-2.5
5.04.069.310
2502745.54.599.88

Internal coating and it's performance:
-- Material of coating: epoxy or coking bituminous
-- Thickness of coating: 120 microns
-- Resistance to salt solution(5%): no change under normal temperature within 30 days
-- Resistance to chemicals: no change in water (PH2-12) at 23ºC within 30 days
-- Resistance to temperature: no change in 95ºC water within 24 hours
-- Resistance to cold and hot water cycle: 1500 times  at 15ºC-93ºC switch


External coating and it's performance:
-- Material: epoxy or red painting
-- Thickness of dry paint film: 40 microns up
-- Thickness of coating: 40 microns up
-- Adhesion: comply to ISO2409 Grade 2
-- Resistance to fire: inflammable


Hydrostatic  pressure test:
Product Name  Diameter
      mm
 Max testing pressure
           Mpa
Normal testing pressure
           Mpa
Centrifugal drainage pipe    50-200           0.8           0.42
Centrifugal drainage pipe     > 200           0.5           0.42

Mechanical & Chemical analysis:
Tensile strength ≥ 180Mpa
Brinell hardness ≤ 260HB
Force test No leakage in 5 minutes under stable pressure
Ring crush test ≥ 380Mpa
Thermal expansion 0.0105mm / mk  (0ºC-100ºC)
Heat conductivity rate 50-60w / mk (20ºC)
No deformation of pipe with foreign heat under temperature 400ºC
No corrosion of pipe because of medium with PH value 2-12
Chemical analysis S ≤ 0.1     P ≤ 0.3   C:3.3-3.8    Si: 2.2-2.7   Mn: 0.4-0.7

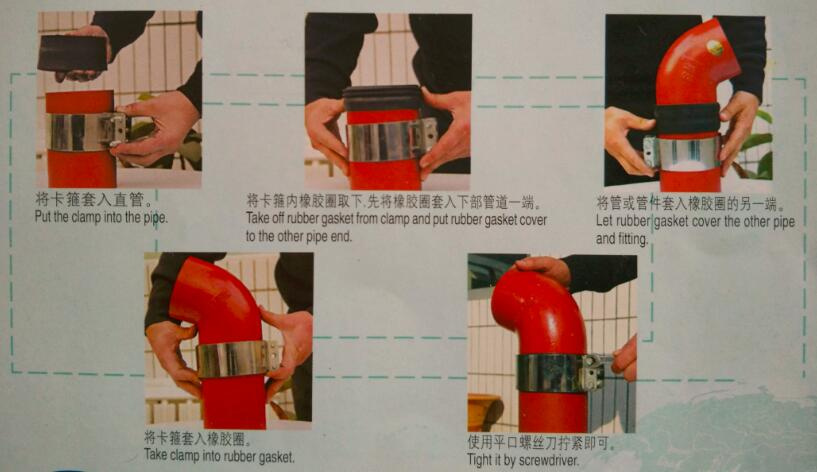

Installation method:


Note:
1.
Free from impact during delivery and installation.
2.  Protect inner and outer coatings against sharp articles.
3.  Check whether there is block in pipe and fittings before installation,
      If there is, clear it firstly.
4.  Joints like clamp should guarantee no shape cracking, thread damage and gasket damage.

Prod Model: 9006
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Cast Iron
Connection Method: Flexible Joint with Stainless Steel Couplings
Dn: 50-300mm
Manufacturing Chart: Centrifugal Casting
Length: 3m/PC
Internal Coating: Epoxy or Coking Bituminous 120 Micrometers up
External Coating: Epoxy or Paint 40 Micrometers up
Type: Cast Iron Pipes
Joint Type: Flexible Joint
Section Shape: Round
Shape: Round
Customized: Customized
Gasket Material: EPDM
Usage: Sewage, Sanitary Water Drainage & Ventilation.
Certification: ISO6594, En877, ASTM a 888
