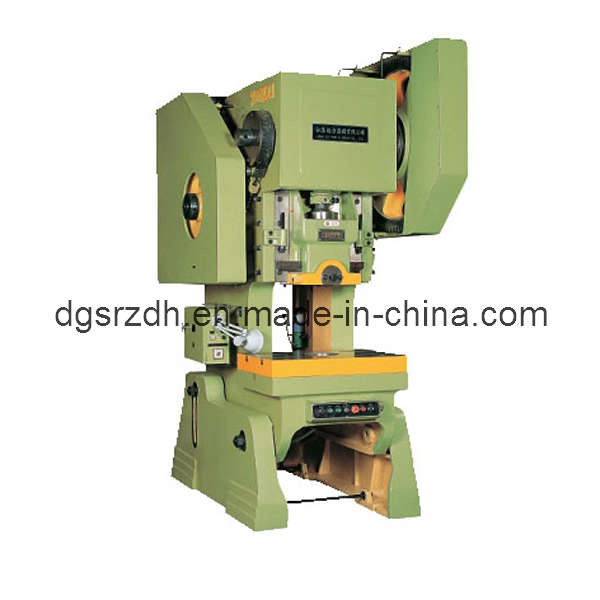

JE23 series economic open type inclinable press machine with dry cluch and fixed bed punching machine
Press machine point concise:
Crankshaft mounted in transverse direction, friction clutch
Compact structure and handsome appearance
Press machine features:
This press machine with fixed bed, using the structure of crankshaft place horizontally,
It has features of compact structure and beautiful contour
Using pneumatic friction clutch and brake
Press machine has the features of stable combination, agile action and low noise level
Press machine adopts the duplex safety valve and PLC
The press is marked with high level of safety and reliability in operation
Press machine specifications:
|
model |
unit |
JE23-25 |
JE23-40 |
JE23-63 |
JE23-80 |
|
|
nominal force |
kn |
250 |
400 |
630 |
800 |
|
|
stroke under nominal force |
mm |
2.5 |
4 |
4 |
5 |
|
|
slide block stroke |
mm |
60 |
100 |
120 |
130 |
|
|
number of stroke |
min-1 |
100 |
70 |
60 |
53 |
|
|
max.die set height |
mm |
180 |
220 |
270 |
190 |
|
|
die set height adjustment |
mm |
70 |
80 |
80 |
100 |
|
|
distance from slide block centre to the frame |
mm |
210 |
250 |
260 |
270 |
|
|
worktable dimensions (F.B*L.R) |
mm |
400*600 |
480*710 |
480*711 |
520X860 |
|
|
dimensions of worktable hole |
mm |
φ120 |
φ220x25 xφ180 |
φ220x45 xφ180 |
φ220x45 xφ180 |
|
|
thickness of bolster |
mm |
70 |
80 |
90 |
100 |
|
|
hole dimensions in bed (diameter*F.B*L.R) |
mm |
180*130*260 |
220*150*300 |
250*200*340 |
250*200*341 |
|
|
|
|
dimensions of slide block bottom surface (L.R*F.B) |
mm |
210*250 |
270*320 |
280x320 |
280X380 |
|
|
size of the handle hole (diameter * depth) |
mm |
φ40*70 |
φ50*70 |
φ50*80 |
φ60*75 |
|
|
distance between cloumns of body |
mm |
330 |
410 |
350 |
410 |
|
|
|
|
main motor power |
kw |
3 |
4 |
5.5 |
7.5 |
|
|
outline dimension (F.B*L.R*H) |
mm |
1560*1300*2210 |
1620*1450*2350 |
1810*1550*2640 |
1810*1630*2790 |
|
|
net weight |
kg |
2100/2204 |
3500/3800 |
4500/5000 |
5500/5800 |
|
|
|
|
Max. tilting angle of body |
|
20 |
20 |
20 |
20 |
|
