FEATURES:

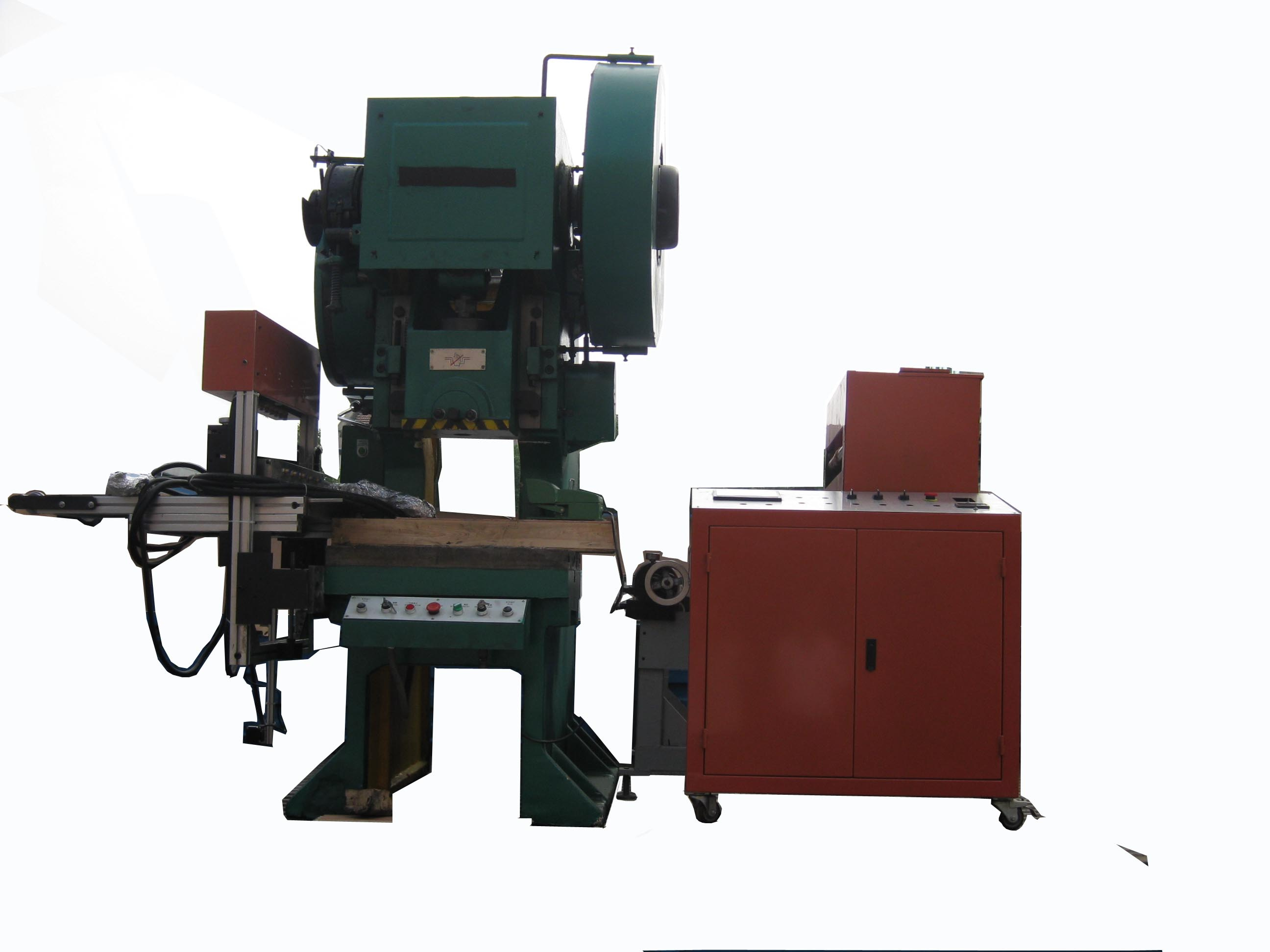

-Consisting of 1 Unit Lubricate Feeding Machine, 1 Unit 63 Ton Press
1 Unit Control Panel, 1 Receiving Table, 1 Aluminum Foil Test Roll and Essential Tool Kits
- Using German made -Siemens essential parts and components
- Complete built-in PLC master control panel
- Full co-ordination feeding and punching control with feeding length control between 20 -999mm long
- High precision in foil container forming and high production
TECHNICAL DATA:
- Max width of the material - 500mm
- Max diameter of the material - 1000mm
- Feeding velocity - 0-60m/min
- Feeding length - 20-999mm
- Feeding accuracy - ± 0.3mm
- Production Capacity - From 50 to 80 units per minute
- Initial Machine Start Up - 45 - 60 Units per minute (2 Months)
- Voltage - 380v/ 50 Hz
-Feeding Machine power -1.5kw
-Press power -5.5kw
- Dimension
- a. Feeding Machine (L x W x H) - 1200mm x 1300mm x 1500mm
- b. Press, Die-Cut & Forming
Machine (L x W x H) - 1810mm x 1350mm x 2750mm
-Total weight -7000kg
Zhangjiagang Mingjie Automation Equipment Co., Ltd, is professional manufacturer which specialized in the designing and making the Stamping Die, researching and developing the aluminum foil deep-processing equipment, Aluminum foil products automatic packing machine and aluminum foil products.
Our Products as Below:
Machinery & Equipment:
1. Aluminum Foil Container Machine
2. Aluminum Foil Roll Machine
3. Slitter & Rewinder
4. Cross Cutting Machine
5. Aluminum Foil Scrap Baler
6. Automatic Carton Sealer
7. Aluminum Flexible Duct Machine
8. Aluminum Container Mould
Aluminum Foil Products:
1. Aluminum Foil Jumbo Roll
2. Aluminum Foil Kitchen Roll
3. Aluminum Foil Food Container
4. Aluminum Foil Material
5. Aluminum Flexible Duct
Our products have passed the evaluation of ISO9001: 2000 certification and have been exported to Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran, Czech Republic, Syria, Dubai and so on more than 20 countries and regions, It brings customers and their country increasing the considerable economic benefits, and also promoted the development of economic cooperation in the field.
We have not restricted our overall business planning to manufacturing and exportation of machines / equipment. We welcome potential buyers and overseas distributors to contact us for manufacturing of OEM products / machines.
Thanks so much for your attention! Contact our oversea export office in China!
