| Price: | US $ 1000-1100/Ton |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
Features:
1.Casting experience:10years,OEM service available.
2.Process:Sand Casting, Investment Casting (Precision Casting/Lost-Wax Casting).
3.Production Capacity:Sand Casting 2000 tons per month,Investment Casting 120 tons per month.
4.Certification:ISO 9001

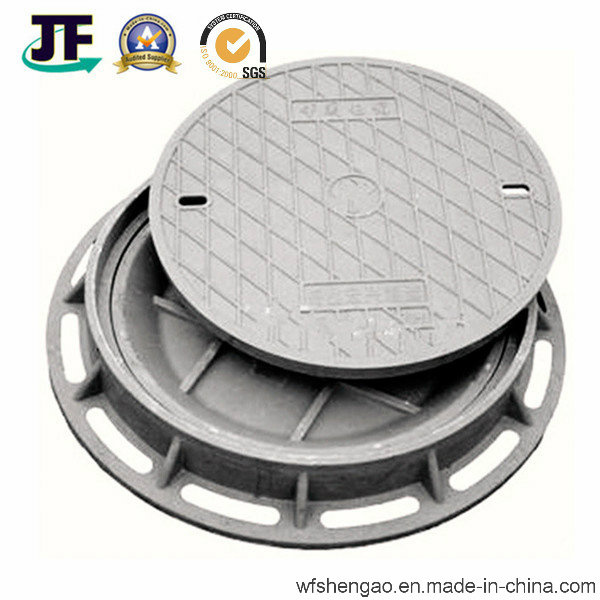

Characteristics of our manhole cover:
1.Material:Cast gray iron, ductile iron.
2.Shape:Round, square, rectangle and triangle.
3.Diameter:From 200mm to 1200mm.
4.Weight:From 7kg to 154kg or according to customers\' requirment
5.Packing:In wooden pallet with plastic layer
6.Annual output:10,000 tons
7.Coating:Black bitumen or Coating as per customers\' requirement
8.Use :Municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.

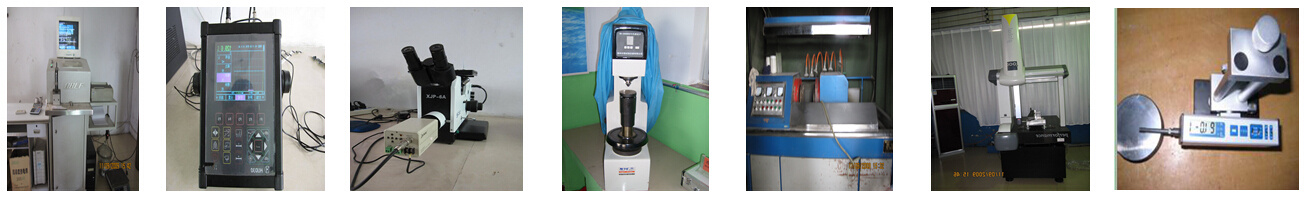

Quality Control:
| Item | Description | Material | Technical Process |
| 1 | Ductile iron castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 2 | Grey iron castings | ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 3 | Carbon steel castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting |
| 4 | Stainless steel castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
| 5 | Alloy steel castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely
promise the quality of every product and provide you comparable price.
2. Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
3. Q: Do you provide customized manhole covers?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
4. Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
Ductile Iron Sand Casting Manhole Covers as Per Requirements
If there's anything I can help, please feel free to contact with me.
| Prod Model: | SA-1 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: | Shandong,China |
| Use: | Construction and Public Use |
| Shape: | Round,Square,etc. |
| Dimensions: | as Your Requirement |
| Brand Name: | Shengao,OEM |
| Quality Control: | 100% Inspected |
| Delivery: | Within 20 Days After Receiving Last Confirm Info. |
| Supply: | Drawing Design |
| Unique: | China Gold Supply |
| Shipping Port: | Qingdao Port |
| Type: | Clay Dry Sand |
