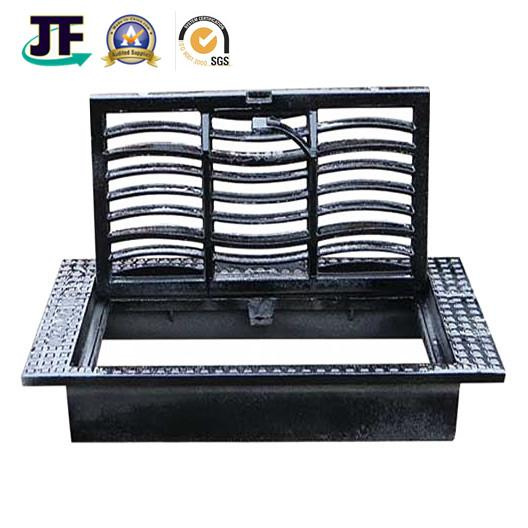

Ductile Cast Iron Casting Manhole Cover and Frame
Manhole Cover,square manhole cover,cast iron manhole cover,ductile iron manhole cover,round
manhole cover,drain manhole cover,iron manhole cover,grey iron manhole cover
Sand Casting, Investment Casting (Precision Casting/Lost-Wax Casting
1)Specifications
Manhole Cover
Cast iron manhole cover
We can produce all kind of manhole cover with customers' drawing or sampe.
OEM ans ODM are welcomed.
Ductile Cast Iron Casting Manhole for Manhole Frame and Grating
1. Process: Sand Casting, Investment Casting (Precision Casting/Lost-Wax Casting).
2. Casting experience: 10years, OEM service available
3. Surface: Blackening, galvanize, plating, painting, etc.
4. Material: QT, iron, steel
5. Technology: Sand casting
6. Advantages: Delivery on time, according to the demand for materials
7. Packing: Wooden case or as your requirement.
8. Deliverywithin 20 days after receiving last confirm information.
9. Production Capacity: Sand Casting 2000 tons per month, Investment Casting 120 tons per month.
10. Certification: ISO 9001: 2008.
11.Advantages: Delivery on time, according to the demand for materials
12. Packing: Wooden case or as your requirement.
13. Deliverywithin 20 days after receiving last confirm information.
14. Production Capacity: Sand Casting 2000 tons per month, Investment Casting 120 tons per month.
15. Certification: ISO 9001: 2008.
Ductile Cast Iron Casting Manhole for Manhole Frame and Grating
)Typical products:
Scaffold fittings, Template parts, Railway fittings, ring flange, electromagnetic steel cover, piston, pressure plate, center plate, wear plate, cylinder, impeller, disc etc.
Ductile Cast Iron Casting Manhole for Manhole Frame and Grating
Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
Ductile Cast Iron Casting Manhole for Manhole Frame and Grating
1. Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.
Ductile Cast Iron Casting Manhole for Manhole Frame and Grating
2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.
Ductile Cast Iron Casting Manhole for Manhole Frame and Grating
| Item | manhole covers |
| Size | DN100-1000mm |
| Surface treatment | black painted, oil, painting |
| Shape | square, round |
| Material | ductile iron, cast iron, QT500 |
| Heat Treatment | can be as your requirement. |
| Advantages | Delivery on time, according to the demand for materials |
| Packing | wooden case or as your requirement. |
| Delivery | within 30 days after receiving last confirm information. |
Ductile Cast Iron Casting Manhole for Manhole Frame and Grating
| Item | Description | Material | Technical Process |
| 1 | Ductile iron
castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 2 | Grey iron
castings | ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 3 | Carbon steel
castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 4 | Stainless steel
castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
| 5 | Alloy steel
castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
Ductile Cast Iron Casting Manhole for Manhole Frame and Grating
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized manhole cover and frame?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything we can help, please feel free to contact with us.
Quality First, Price Best, Service Foremost!
We assure you of ourbest services at all times!
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
