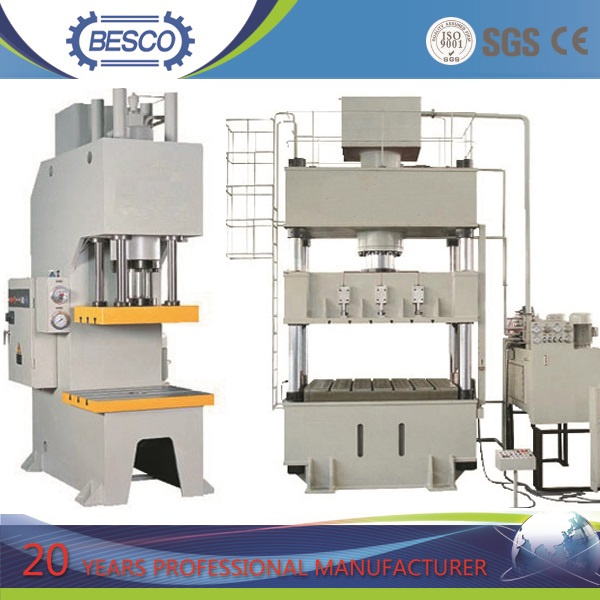

Double Action Deep Drawing Hydraulic Press, Double Action Hydraulic Press Machine

double action deep drawing hydraulic press, double action hydraulic press machine


1. This  Press is mainly applied to sheet drawing bending and forming processes.
1. The press has four modes of working in control system, such as: Adjustment, manual, semi-automatic, and continued, semi-automatic. Process modes divide into general process and drawing process.
2. Modular type integrated valves are used totally in the hydraulic control system. All the high pressure pumps are the slant shaft type variable displacement pumps of which the process technologies introduced from HYDROMATIC Corp of Weat Germany.
3. A programmable controller used in the electric system of the press.
4. Frame construction with pretensioned bar is used for the machine body. The RAM is adjusted on the guide way
5. The hydraulic system cylinders are of plunger type. Sealing ring of hydraulic cylinders is used for Xia Ban Crop of USA.
6. The hydraulic system is installed on the top of press.
7Higher no load and working moving speed.
8. The hydraulic system is equipped with oil filtering, heating and cooling devices
9. Various alarm indicators and contactless protection device infared curtain controller are provided on the machine.
10. For safety, hydraulic lock is fixed on press, to prevent upper slide down.
11. Regulation of pressure on the hydraulic system is introduced electrolyte proportion relief valve by G. T REXROTH Ltd of West Germany
12. Stroke control of upper slide and down slide is the digital display set.
Welcome for your inquiry of Hydraulic Press.

Capacity			Unite	Figure
				Y27-800	Y27-800A	Y27-1000	Y27-1000A	Y27-2000
Return force			KN	8000	8000	10000	10000	20000
Pressure of liquid			KN	900	900	1250	1250	2000
knock-out force			Mpa	23	23	25	24	25
Force of down slide(hydraulic cushion)			KN	1000	1000	1600	1600	2400
Daylight of upper slide			KN	3000	3000	5000	5000	2500
Stroke		Upper slide	mm	1400	1400	2100	1800	1200
		Down slide	mm	400	400	365	500	350
Effective area of working table down slide (LR-FB)		working table	mm	3200*2200	3200*2200	3200*2300	4000*2300	4500*2500
		down slide	mm	2550*1700	2550*1700	2550*1800	3500*1800	3750*1950
Speed of upper slide		Down	mm/s	300	300	300	300	500
		Pressing	mm/s	8~22	8~22	12~30	12~30	18~35
		Return	mm/s	200	200	250	250	500
Max. Loading capacity of moving table			kg		20000	22000		20000
Stroke of moving table			mm		2700	2700		6200
Height of moving table above floor			mm	500	720	900	400	2000
Overall dimensions of machine	Left-right		mm	6000	7000	8510	8850
	Front-back		mm	6100	7475	7370	6835
	Heig ht above ground		mm	6270	6490	8500	7564
	Depth below ground		mm	3220	3400	3400	3600
Total power of the motor			KW	96	105	188.5	185.7	477.5
Total weight of the machine			kg	128000	133000	199000	210000
