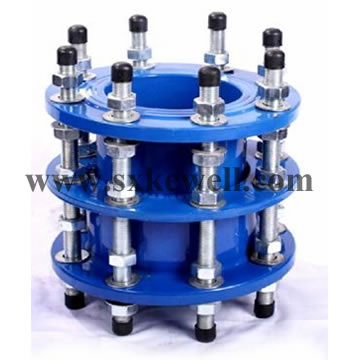

Shanxi Kewell Industrial Co., Ltd can produce the dismantling joints, it is manufactured to provide longitudinal adjustment in flanged pipe systems. Dismantling joints provide a simple method for the installation and removal of flanged valves, pumps, flow meters, flanged pipes and pipe fittings.
Description:
1, Standards: .EN14525, ISO2531
2, Pressure Grade: PN10/PN16/PN25/PN40 according with BS4504
3, Material
Follower gland ring Ductile Iron GGG500-7
Flanged Adaptor bodies Ductile iron GGG500-7
F-piece pipe Ductile iron GGG500-7
Bolts, Nuts and Washers Material: Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Decrement Coating; Or as required.
Tie Rods Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Decrement Coating; Or as required
Gaskets material For water or Gas: NBR Grade A.
For drinking water EPDM rubber to BS2494: 1990 type W.
For drinking water and sewage SBR Grade F.
4, Size: DN50 to DN1000
5, Process:
Automatics machine lines
Resin Sand
Molding Boards
6, Coating: Fusion Bonded Epoxy Coating inside and outside or bitumen
Blue, black or red color.
7, Package:
Wooden cases with plastic layer
Wooden pallets with plastic layer
As per customers' requirements
Shanxi Kewell Industry Co., Ltd can produce the series of products with ductile iron mterial or other material used in the pipeline system, such as ductile iron pipe, ductile iron pipe fittings, ductile iron pipe fittings for PVC pipes, valves, flanges, manhole covers, joints, stainless steel pipe, stainless steel pipe fittings, PVC fittings, and so on. Our products can meet the commonly used standard such as: ISO2531, EN545, EN598, EN14525, DIN3352, BS5163, DIN3202, BS2494, BS4504, EN124 and so on. Our products have exported to many countries such as Europe, Middle East, southeast Asia, Africa, north and south America and other countries.
