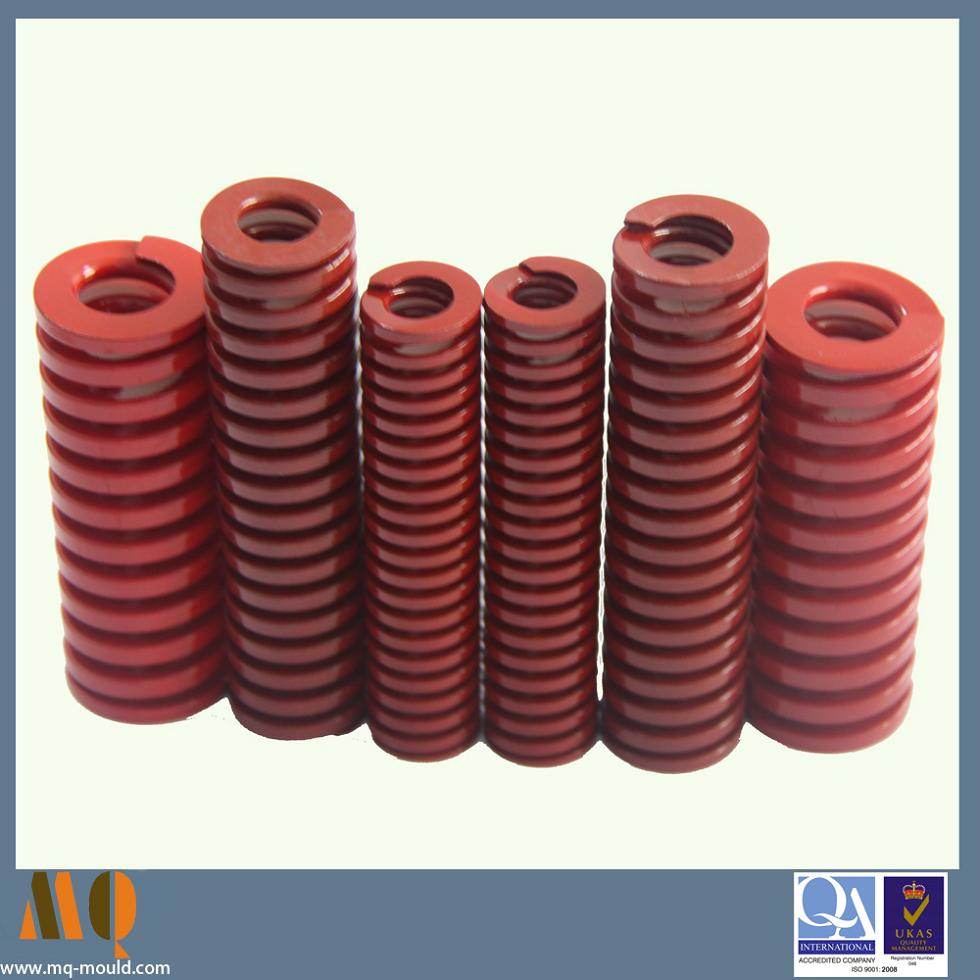

Die Mold Springs/Extension Springs (MQ859)
| Price: |
US $ 0.1-0.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
MQ859 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Price: |
Manufactury Price |
| Delivery Time: |
Generally 7 Workdays or According to Quantity |
| Usage: |
Home Appliance |
| Load Type: |
Compression |
| Shape: |
Coil |
Product Description
Die Mold Springs/Extension SpringsDie spring includes: Japanese standard, German standard mold die springs spring, spring, spring spring polyurethane, usually refers to the rectangular die spring.
Die springs are widely used in the stamping die, metal die-casting mold, plastic mold and other elastic motion precision machinery and equipment, automotive and other fields.
Die spring material generally used chromium alloy steel. Chromium alloy spring steel has the characteristics of high temperature resistance, high rigidity, long service life.
Rectangular die spring has the advantages of small volume, good elasticity, high rigidity, high precision, material is rectangular, surface color coating (plating) to distinguish different loading, the characteristics of beautiful appearance and so.
Compressing Proportion:| Lightest Load Max | 58% |
| Light Load | 48% |
| Medium Load | 38% |
| Heavy Load | 28% |
| Ultra Heavy Load | 24% |
| Light Load | 60% |
Permitted size tolerance :| Outer-Dia | Inner-Dia | Free
55mm under
| Length
60mm under | Load | Coil-Direction | Tilt |
+0 mm
-0.1mm | +0.2mm
-0 mm | ±0.5mm | ±1% | ±10% | Right | 60mm under<2° |
Performance and Times:Times
Types | 1 million(Free length) | 0.5million(Free length) | 0.3million(Free length) | Max bend |
TF,TR
Lightest load | 40% | 45% | 50% | 58% |
| Light load | 32% | 36% | 40% | 48% |
| Medium load | 25% | 28% | 32% | 38% |
| Heavy load | 19% | 21% | 24% | 28% |
TB
Ultra heavy load | 16% | 21% | 20% | 24% |
Die Mold Springs/Extension Springs | Material | 60Si2MnA,60Si2CrA,60Si2CrV,etc |
| Wire diameter | 5mm ~80mm |
| Free hight | 10mm ~1188mm |
| hardness | 42HRC~52HRC |
| Direction of coils | Right, left |
| Total coils | Deted By Drawing / Data. |

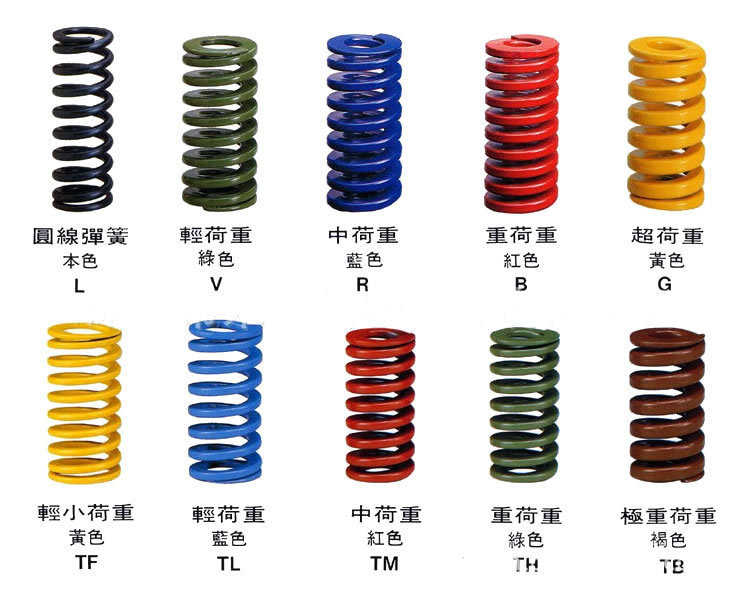

| Load Bearing Capacity | Yellow( Lightest Load ) Blue(Light Load ) Red(Medium Load )
Green(Heavy Load) Brown(EX-Heavy Load) |
| Application | Excavator, digger machine, car, train, shakeout machine,Steel Plants,Railway Bogies & Wagons,,etc. |
| Painting and Coating | Amino paint,Synthetic Enamel Paint, Powder Coating, Phosphate, Zinc Coating etc. |
| Color | yellow blue red green Brown |
| Production method | Hot formed, cold formed |
| Note | The materials and specifications can be decided by the customers. |
MQ Precision Hardware Co., Ltd, is located in Dongguan City, Guangdong Province, China. Development of the times, industrial upgrading, MQ accumulated years of
Experience. Professional technology, spirit of innovation, humane management and human philosophy quality are the cultural spirit of MQ entire enterprise. Cultural influence by the work team to make full use of advanced technology, the idea for the technical design will be more delicate and professional, more sophisticated manufactured the perfect product; And dedication to provide quality integration technology service to customer.
MQ used raw materials come from: ASSAB STEELS Co., Ltd and Hitachi Metals Co., Ltd and Kennametal. Ensure the raw materials stability, never use inferior raw materials is our purpose!
MQ committed to professional: Tools parts of automation, machinery parts machining, professional tungsten forming grinding, Ceramic parts processing, Variety of precision metal and plastic mold development and manufacturing, Standard and non-standard parts customization. Can be provides technical support and sales Japanese MISUM / 0 standard, the U. S. DME / 0 standard, German HASCO / 0 standard and other European or the international brand standard mold parts ( excluding patent product ) of Chinese manufacturing, its products are widely used: Metal machinery, automobiles, motorcycles, electronics, electrical appliances, medical equipment, space industry, LED lighting etc different areas.
MQ has passed ISO9001: 2008 international quality management system certification and related third certification report, and import the advanced ERP management system that allows the company's production processes and management systems to rationalize; Scientific.
Quality Policy: Quality win market, Integrity casting brand, Never use inferior raw materials
Business philosophy: Continuously innovative technology, Provide High-quality products, Meet customer requirements, management based on man, cooperation creates value.
Honest and trustworthy, win-win cooperation, sustainable development.
Our commitment:
The most stable quality The most competitive price
The speed of delivery is instantaneous 24 hour rapid response
Excellent team spirit Professional technical support
Reduce the consumption of resources Provide environment-protection products
Adheres to the quality as the center, sustainable development, sustainable management, professional serious attitude, committed to serve you.
