| Price: | US $ 0.3/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 100/Piece |
| Pay Type: | T/T,Paypal,Western Union |
Table 1 Die and component material and hardness for various cast metals | ||||||||
| Die component | Cast metal | |||||||
| Tin, lead & zinc | Aluminium & magnesium | Copper & brass | ||||||
| Material | Hardness | Material | Hardness | Material | Hardness | |||
| Cavity inserts | P20 [note 1] | 290–330 HB | H13 | 42–48 HRC | DIN 1.2367 | 38–44 HRC | ||
| H11 | 46–50 HRC | H11 | 42–48 HRC | H20, H21, H22 | 44–48 HRC | |||
| H13 | 46–50 HRC | |||||||
| Cores | H13 | 46–52 HRC | H13 | 44–48 HRC | DIN 1.2367 | 40–46 HRC | ||
| DIN 1.2367 | 42–48 HRC | |||||||
| Core pins | H13 | 48–52 HRC | DIN 1.2367 prehard | 37–40 HRC | DIN 1.2367 prehard | 37–40 HRC | ||
| Sprue parts | H13 | 48–52 HRC | H13 DIN 1.2367 | 46–48 HRC 44–46 HRC | DIN 1.2367 | 42–46 HRC | ||
| Nozzle | 420 | 40–44 HRC | H13 | 42–48 HRC | DIN 1.2367 H13 | 40–44 HRC 42–48 HRC | ||
| Ejector pins | H13 [note 2] | 46–50 HRC | H13 [note 2] | 46–50 HRC | H13 [note 2] | 46–50 HRC | ||
| Plunger shot sleeve | H13 [note 2] | 46–50 HRC | H13 [note 2] DIN 1.2367 [note 2] | 42–48 HRC 42–48 HRC | DIN 1.2367 [note 2] H13 [note 2] | 42–46 HRC 42–46 HRC | ||
| Holder block | 4140 prehard | ~300 HB | 4140 prehard | ~300 HB | 4140 prehard | ~300 HB | ||

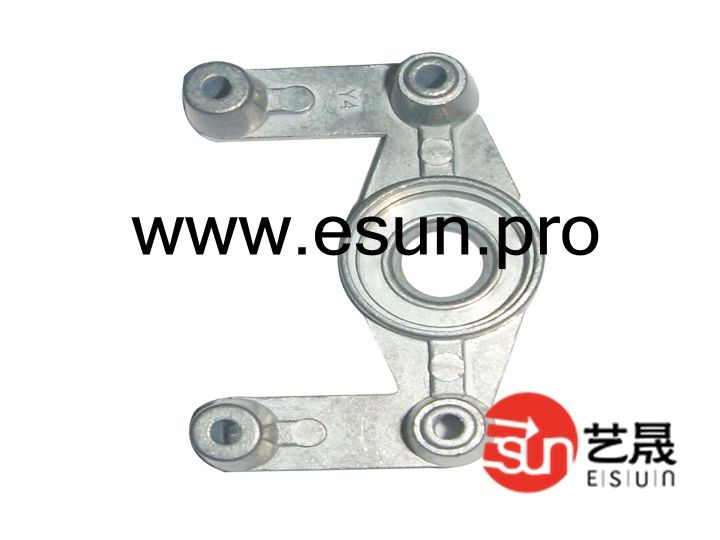

| Prod Model: | DC009 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: | Machinery Parts |
| Die Casting Machine Type: | Hot Chamber Die Casting Machine |
| Proessing: | Machining Center |
| Chamber Structure: | Horizontal |
| Materail: | Zinc Alloy |
