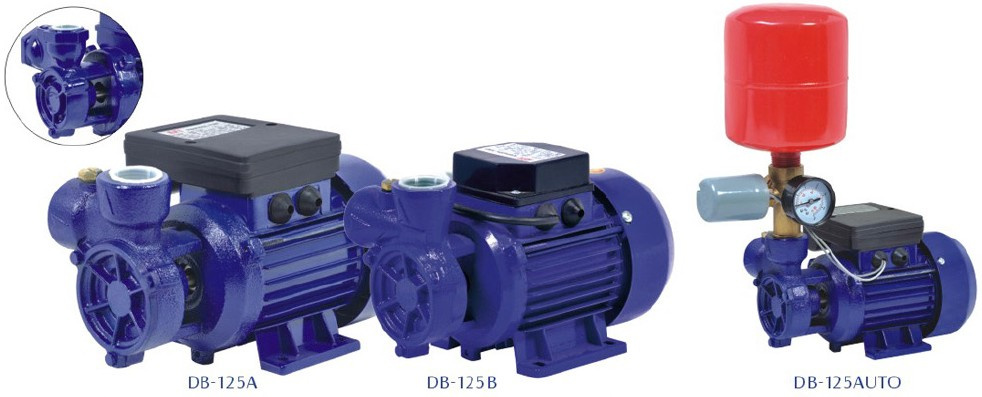

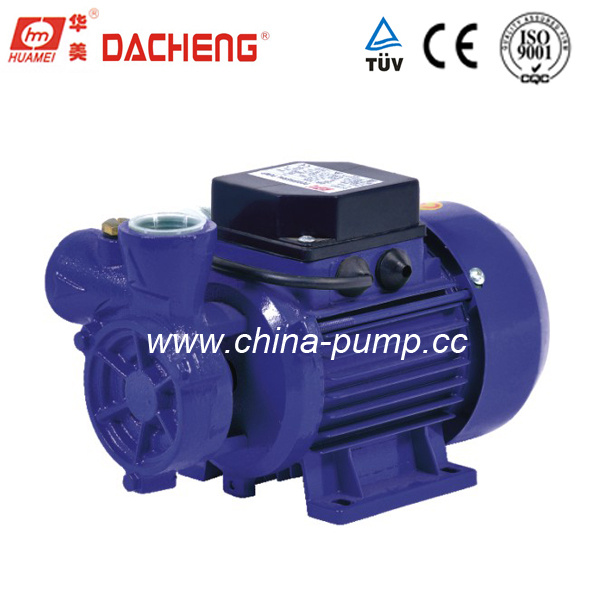

DB Series Peripheral Water Pump
- 14 years expericen of manufacturing water pump
- All our products are with CE approved (EMC and LVD)
- Models: DB-125B
- Single phase, Self priming, Peripheral impeller, High head
- Stator: 100% pure wire with top
- Rotor: Enough sillicone steel sheet with high durability
- Shaft: Rust resistance with 45# steel or stainles steel
- Compact size and Simple operation
- Heavy duty continuous work.
- High-efficient and Low noise
OUR ADVANTAGE- Self manufaturing pump castings, stators, rotors to ensure the every details from raw material phurchase, manufacturing and processing procedure to the packing and testing procedure.
- Self procucing pump spare parts improves the assembling quality and fitness.
PRODUCTS CONSTRUCT
Pump- Pump body: Cast Iron
- Impeller: Brass
- Mechanical seal: Carbon/ceramic/Stainless Steel
Motor- Single Phase
- Motor Housing: Aluminum (closed, externally ventilated)
- Shaft: Carbon Steel/ Stainless steel Thermal protector (if required)
- Insulation class: B and F
- Protection class: IP44 or IP54
- Power: 220-240V 50HZ( single phase 230V, 240V, 127V, 110, 115V/60Hz are available)
OPERATING CONDITION- Liquid temperature up to 60
- Ambient temper up to 40
- Total suction lift to 9m
- Continuous duty
APPLICATION SCOPE- Farmland and Garden irrigation
- High buildings water supply
- Industrial and Urban area drainage
- Pressure boost

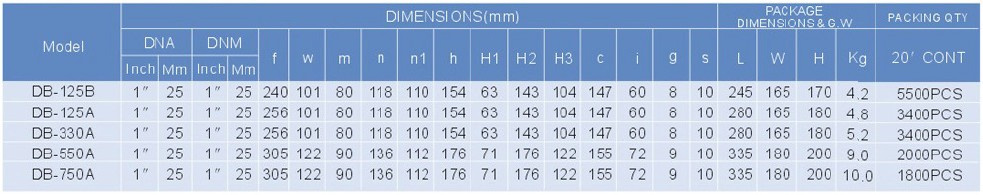

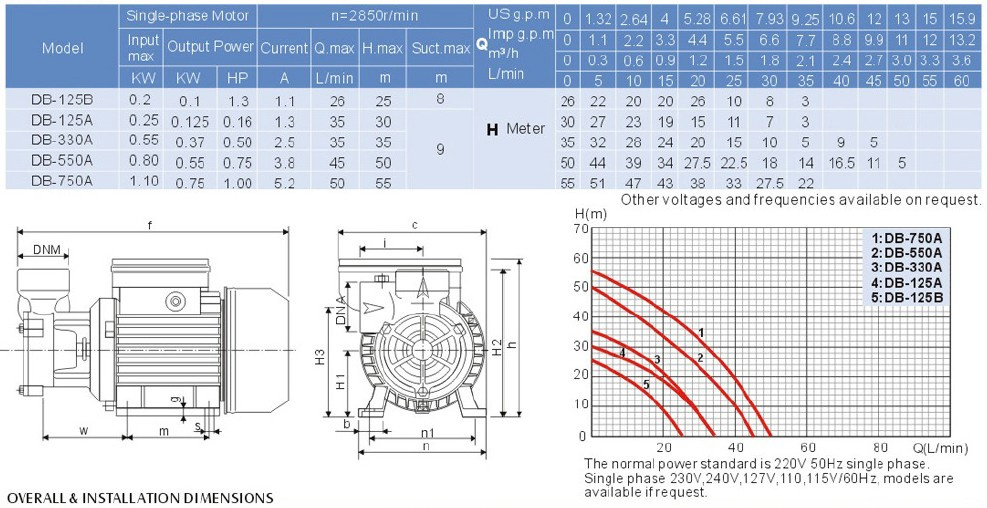

TECHNICAL DATA(220-240V/50HZ)
Fujian Dacheng Electric Group Co., Ltd. is located in Fuan city, Fujian province. Which founded in 1999, have 330 staffs.
Having 8 highly developed automatic assembling lines, experienced and professional engineering team, our monthly capacity of pump is 80, 000 PCS, motor and generator 10, 000PCS. We are a professional manufacturer dedicated to design and manufacture best quality, reliability micro-pump, motors and generators, to exceed the expectation from customers. Company pay attention to product quality, research and development, own provincial technical center.
Passing ISO9001: 2008 quality management system certification, our products obtained certificates from CE, SGS, RoHS, BV etc., also won 13 national patent, Y, YC, ST, STC series products have been gained quality license of export products. Exporting to Europe, South America, Middle East, Southeast Asia more than 30 countries and regions.
