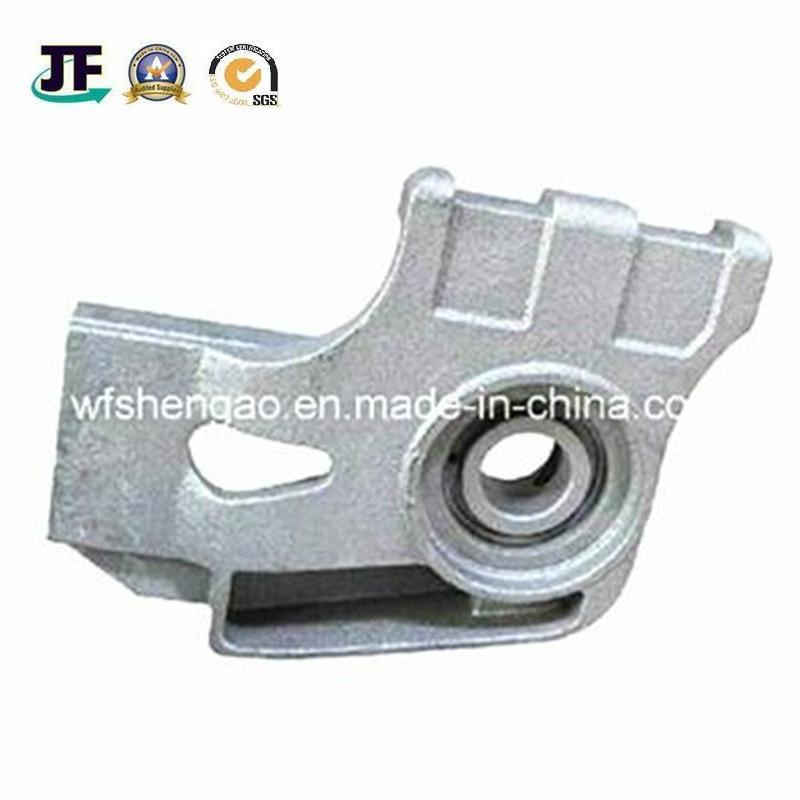

Customized Non-Standard Stainless Steel Sand Casting Part

Specifications
customized non-standard stainless steel sand casting part

1. Strict QC & timely delivery
2. Standard: BS, DIN, ASTM
3. Good at custom
4. OEM
5. Technological process: Sand casting+CNC Machining.
6. Inspection: Mechanical properties, leaking free test conducted by in-house or third party
7. Use: Submersible pump body.


OEM Sand Casting/Cast Iron Valve Body for cast steel

1. Ductile Iron Castings:

Molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0.5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15, EN-GJL-200/DIN 1691-GG20, EN-GJL-250/DIN1691-GG25
, EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949

Production capacity:
1. Casting classification: Sand casting; Precision casting; Vacuum process casting etc.
2. Gray iron, ductile iron, stainless steel, carbon steel, alloy steel, etc.
3. Adoption standard: BS, DIN, ASTM GB etc.
4. Weight range: 0.5~5000kg.
5. Producing capacity: 2, 000 tons per month.
6. Main application: Metallurgy; Machinery; Plastics; Rubber; Pharmaceutical;
Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces; Heat treatment furnaces; Direct-reading spectrometer; Shot -blasting equipments, etc.
8. Surface treatment: Polishing, plating, shot blasting, heat treatment, etc
9. Inspection and test: Foundry in home, third part inspection, Material report, UT, MT, RT, and PT, etc...
10. Packing and shipping: Stand export packing; 20day make modul & sample; Delivery time against your quantity.
11. Casting service: Your logo, character, trade name, number etc can be casted on the surface clearly.

Quality First, Price Best, Service Foremost!

We assure you of our best services at all times!

Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized forging products?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.

1: Specialized in various metal part and mould part producing, CNC Machining, and Metal Stamping, Forging and Casting
2: All international standard materials can be available, carbon steel, alloy steel, stainless steel etc
3: All kinds of finish treatments can be available, like power coating, hard anodizing, zinc plated, plating, oxidation, blasting, painting, anodizing, heat treatment etc
4: We have good cooperation companies, we make good use of outsourcing some factories and equipment, like heat treatment, large boring machine etc, so we can digest large order
5: Sample is ok for confirmation before mass production
6: Firstly, check the raw material before massive production
7: During production, technicians self-check and Engineer spot check to assure the good quality.
8: QC inspect after products finished
9: Before package, we will choose the best way to avoid the unnecessary damages during transportation
10: Salesmen who are trained the technical know-how spot check before shipping
11: Main equipment: CNC lathe, automatic lathe, hand lathe grinder, thread rolling machine, tapping drilling machine, boring machine and CNC machining center etc
12: Advanced measuring & testing equipment: Projecting apparatus, roughness tester, hardness tester, concentricity tester etc
13: We offer the total solution to customers' idea with in-house production/assembly & outsourcing program
14: We offer the engineer consultation to your design for production improvement and cost saving
15: Inspection report and material test certificates are available upon request.
16: IPQC inspect each during every step; 100% inspection before shipment by micrometer, height gauge, projector measuring machine, coordinate measuring machine(CMM), etc.
17: Can meet DIN, JIS, ASTM, AISI, BS, GB standard
18: We insist Honesty is Time, Conscience is Quality

If there's anything we can help, please feel free to contact with us.

eature	- TS 16949 certified - 3 sets automatic moulding lines, flask size from 450x400 till 850x700 - 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour - 15 units CNC machining cernters for further machining process - Spectrum + metalloscope
annual casting capacity	40,000tons
unit weight of casting	from 0.1kg/pc till 120kg/pc
material spec.	various grade nodular cast iron and grey cast iron
we are currently casting	- Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30 - Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90 -Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1
