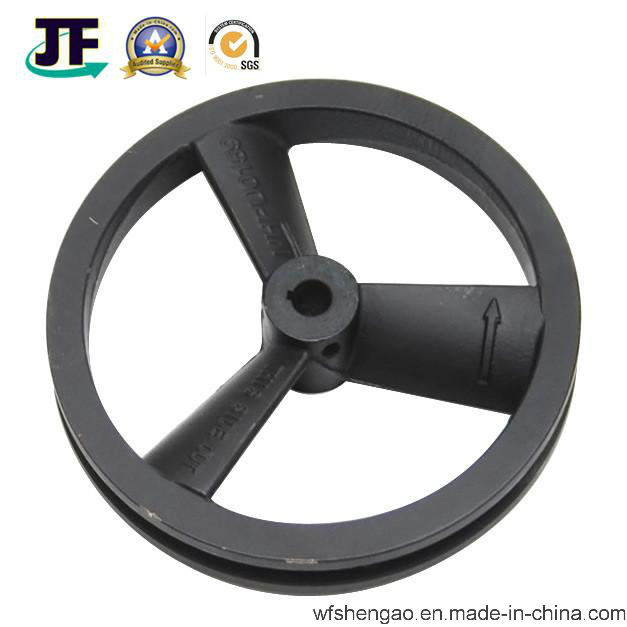

Customized Grey Iron Flywheel of Sand Casting Process

Customized Grey Iron Flywheel of Sand Casting Process

Specifications:
1. ISO9001-2008.
2. Has advanced euipment and over 15 years experience.
3. Price: Competetive price, Precision made. Experience & Reasonable QC that you can reply on.
4. Process: Precision made. Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.

Company Profile:
We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.

Characteristics of our Flywheel:
1.Material & Standard:grey iron, ductile iron, malleable iron, carbon steel, alloy steel(high Manganese steel, high Chromium steel and others), Stainless steel, Aluminum alloy, Copper alloy.
2.Moulding processing:Green sand,Resin sand,Waterglass sand,Lost wax/Silicon sol or Die casting.
3.Melting facilities:Cupola furnace,medium frequency induction electric furnace or electric arc furnace.
4.Casting Inspection facilities:Direct-reading spectrum instrument,metallographic analysis,magnetic particle inspection,ultrasonic inspection,X-ray inspection,mechanical properties inspection.
5.Heat treatment facilities:Aging oven,Electric furnace,Normalizing,Quenching and Tempering equipments.
6.Surface treatment:Shot blast cleaning,polishing,Chrome plating,Zinc plating,powder coating and others.
7.Machining facilities:CNC centres,NC lathes,NC milling machines,NC boring machines,drilling machines and other common machines.
8.Inspection facilities:CNC 3-D inspecton facilities and others.
9.Industrial categories:Tractor,Heavy-duty truck industry,Car industry,Farm machinery,Construction engineering machine industry,Electricity power industry,Elevator industry,Valve industry,General machine industry and others.
10. Part Unit weight range:
     For grey iron casting: up to 15000kgs;
     For ductile iron casting:up to 4000kgs;
     For high manganese steel casting:up to 5000kgs;
     For carbon steel & alloy steel casting:up to 10000kgs;
     For Aluminum/copper alloy die casting:from 8g up to 12kgs;
     For Investment/lost wax casting:up to 80kgs;

name	Customized Grey Iron Flywheel of Sand Casting Process
material	ductile iron GGG50/7, gray iron
standard	EN124/1433/1563
class	A15,B125,C250,D400,E600,F900
shape	Round
Size	600*600,840*840, 850*850 or as per customers' drawing
paint	bituminous black
advantage	Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance
molding	DISA Line
process	Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection
application	footway, pedestrians, car parks, aircraft pavements
certificate	BSI, ISO9001:2000
Strict quality control	Tensile strength: 500Mpa                        Yield stress :  320Mpa Elongation rate :  7% Hardness: HBS170-230
Main products	Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts
other information	we can cast and process any type of iron casting products according to customers' drawing or samples

   Size( customized available for other dimensions)

Order No.	Inner dia	grating	Outer dia	Height	Weight(kg)	Pressure(KN)
F0536-1	252 x 252	326 x 326	360 x 360	36	13.5	C250
F0536-2	350 x 350	400 x 400	470 x 470	40	20	C250
F0536-3	450 x 450	500 x 500	580 x 580	50	32	C250
F0536-4	550 x 550	600 x 600	680 x 680	50	39	C250
F0536-5	350 x 350	400 x 400	500 x 500	100	36.2	D400
F0536-6	450 x 450	500 x 500	600 x 600	100	49	D400
F0536-7	560 x 560	600 x 600	700 x 700	100	62	D400

Material composition:

Tensile strength	560Mpa	Yield strees	340Mpa
Elongation rate	7.5%	Hardness	210HBS
Material	GJS500-7(GGG50)	Standard	EN 124

1. Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.

2. Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.

3. Q: Do you provide customized flywheel?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.

4. Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
