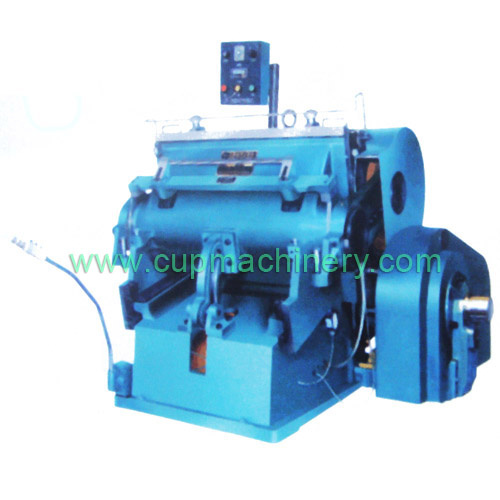

MLCB930 Creasing and cutting machine is a special equipment for creasing and cutting all kinds of ordinary paperboard, corrugated paperboard, plastic and leater products, suitable for printing, packing decoration and plastic industries.
High strength due to one piece casting by using top quality materials for machine body. Smooth running, big pressure and low noise areobviously remarked as 4-step helical gear mechanism is adopted. Singie plate electromagnetic clutch is sensitive subreliable.
Operational altitude is reasonably arranged, Moving-bed opens to its optimun.
Electrical system is designed in comformity with IEC standard. Single, continuous operation and opening Dwell range is adjustable. Safety system is reatly reliable. Concentrater lubricating system.
Main Technical Date:
1. Max. Rule Area: 930 x 670 mm
2. Speed: 23± 2 stockes/min
3. Max. Rule length: <25 m
4. Total power: 4 KW
5. Power source: 380 V, 50 Hz, 60 Hz or other needed
6. Whole machine weight: 3000 kg
7. Appearance size(L x W x H): 1800 x 1700 x 1900 mm
8. There are many other sizes die cutting machines.
Ruian City Luzhou Machinery Co., Ltd is one of the biggest industrial enterprise in mechanical in Zhejiang Province and specializes in packaging related machinery as: Paper cup machine, Paper bowl machine, Paper bowl over-coating machine, Paper plate machine, Paper dinner box machine, Paper container series forming machinery equipments and packaging related machinery.
With advanced technological equipments, tremendous technical strength, rich manufacturing experience and reliable product quality, our company can develop new products through cooperating with relevant scientific and research units, universities and institutions and provide equipment, technology, raw material and overall for the enterprises engaging in producing various paper products.
Model LBZ-LB Double Coated Paper Cup Machine, Model LBZ-LA Full-automatic Paper Cup Machine and Model LBZ-LC Full-automatic Paper Bowl Machine of "LUZHOU" Brand are developed by our company through importing and absorbing advanced technology from home and abroad, Paper both imported from abroad and made domestic would be suitable to these machines (Paper range from 150 GSM to 420 GSM ). These machines can produce various products through easily exchanging the molds and feature the advantage of one machine, multiple products. Besides, our company also manufacture such equipments as LBZ-LD Full-automatic Paper Bowl Shaping Machine, LBZ-LF Full-automatic Paper Bowl Hollow Shaping Machine, LBZ-B Semi-automatic Paper Meal Box Machine, LBZ-C Full-automatic Filling and Sealing Machine, MLCB930 Creasing and Cutting Machine, The environmental equipment protection series machinery equipments produced by our company are popularized by the World Environment Organization for clearing away white pollution and initiating environmental protection
Since company was founded in 1985, productions are made better and better, and has passed the science appraisal and the technology appraisal, ISO9001: 2000 International Quality Identification System, They are judged as Famous and Excellent Extended Production in Zhejiang. Our company will serve customers at home and abroad whole hearted with first-class products, quality, service and best price, and warmly welcome friends of all circles to visit us for business discussion.
