Product introduction:

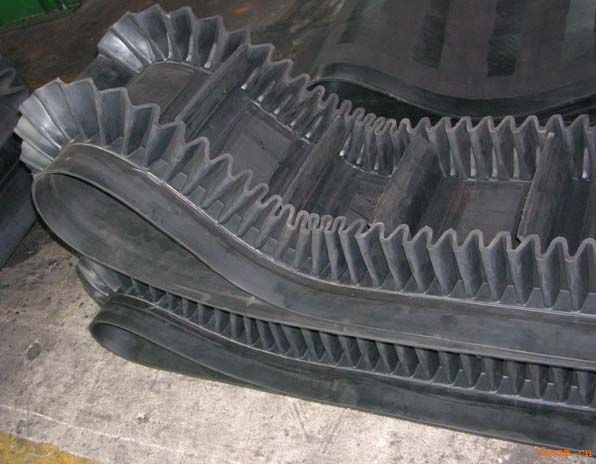

The belt can prevent the scattering of the conveying materials.
It is composed with base band and raised edge.
3. There is continuous corrugated sidewall higher than belt on either side of the belt. The height of the sidewall is about 60-500 mm
4. We can provide such products as conventional tape, heat resistant type, cold resistant type/acid and alkali resistant type, anti-static conductive type, high temperature resistant type (not more than 200ºC)etc.
Features:
It used to level, short distance transportation.
The adhesive of it is high and the flexibility is good.
3. Materials can be conveyed at a large slope up to 90 degrees
4. The belt has large loading capacity
5. The slope can be changed
Advantages:
1, Increase the conveying Angle (30 ~ 90 degree).
2, Cover smaller area, less investment/.
3, Bigger throughput, higher hoisting height.
4, Smooth transition from horizontal to tilt (or vertical).
5, It is suitable for conveying easy sifted the powder, granulated and small lump, paste a-nd liquid the shape material.
6, Lower energy consumption, simple structure, higher strength, adhesive tape, longer
service life.
Usage:
1. It is used for conveying the material including easy scattering powder, granulated and small lump, paste and liquid material.
2. It is widely used conveying material in port, metallurgy, mining, power, coal, casting, building materials, food, chemical fertilizer, etc
Technical Parameters:
| Serial NO |
Inspection item |
Counting unit |
Standard |
Actual inspection result |
1 |
Covering rubber longitudinal strength |
Mpa |
>=18 |
21.2 |
2 |
Covering plastic tensile elongation |
% |
>=400 |
463 |
3 |
Coverage of plastic wear |
cm3/1.61km |
<=.08 |
0.52 |
4 |
Covering compound hardness(Shore A) |
DU |
55-65 |
63 |
5 |
Cotton canvas inlay adhesion strength |
kn/m |
3.20 |
5.2 |
6 |
Covering rubber and cloth level strength |
kn/m |
2.70 |
4.3
|
