Copper Rod Continuous Casting Machine
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Copper Rod Continuous Casting Machine
Introduction:
Upward continuous casting production line is mainly for making copper bar, copper tube, copper strip and other different shape materials. It has many advantages such as continuous casting with high efficiency and large output, producing multiple product types with different sizes or structures, automatic control, products of high electric conductivity and low oxygen content. It's widely used in many copper industries, such as copper wires, electric cables, air-condition cooling pipes and so on.
Main Technical Specification:
Oxygen Content: ≤10ppm
Conductivity: 100%~102% IACS
Elongation: ≥37%
Tensile Strength: ≥170N/mm²

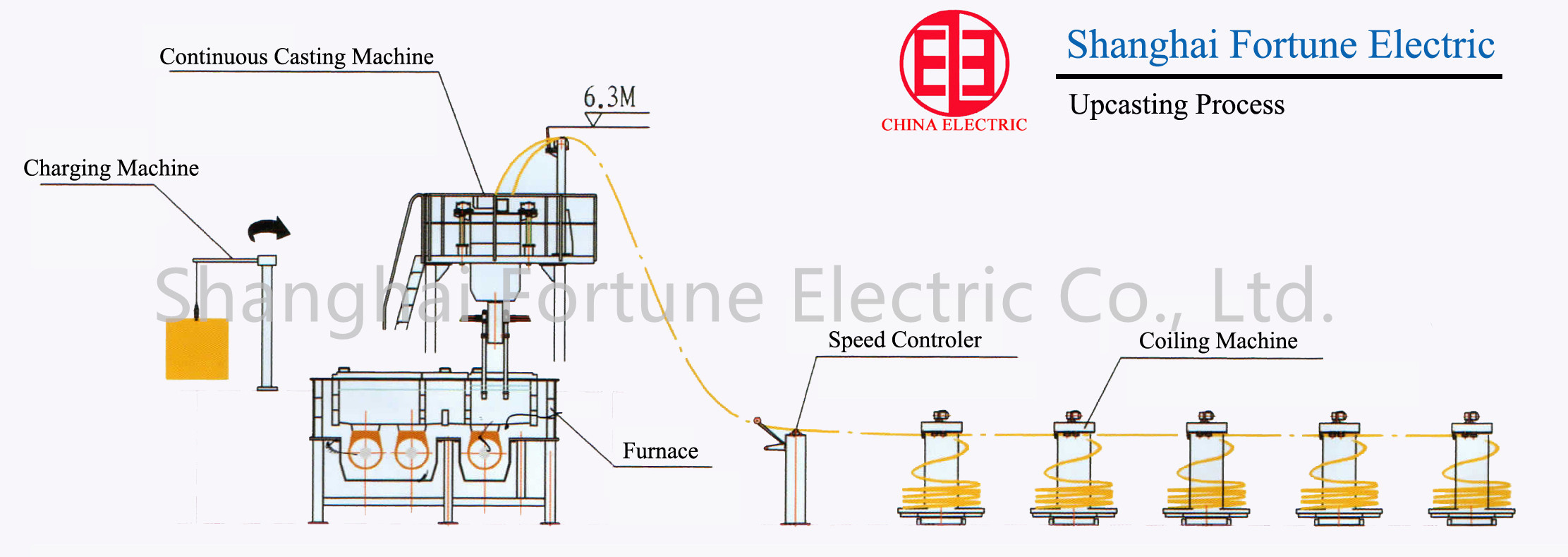

Upcasting production flowchart:
Copper CathodeCharging MachineMelting FurnaceLaunderHolding FurnaceUpward Continuous Casting MachineSpeed ControlerCoiling Machine
Working principle:
Put crystallizer into molten copper liquid, and freeze the rising copper. Servo-control system will have th solidified copper bar continually go upward by a reducer. Copper products of different size can be produced when equiped different types of crystallizer.
Machines In Upcasting Line:
Machine Parts:
|
Model |
Capacity (T/year) |
No. Of Strands |
Diameter (mm) |
|
FLZ-3K6S 8~30 |
3000 |
6 |
8~30 |
|
FLZ-5K10S 8~30 |
5000 |
10 |
8~30 |
|
FLZ-6K12S 8~30 |
6000 |
12 |
8~30 |
|
FLZ-8K20S 8~12 |
8000 |
20 |
8~12 |
|
FLZ-10K16S 17~30 |
10000 |
16 |
17~30 |
|
FLZ-12K24S 8~12 |
12000 |
24 |
8~12 |
|
FLZ-15K20S 17~30 |
15000 |
20 |
17~30 |
| Prod Model: |
FLZ-3k6s 8~30 |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Oxygen Content: |
≤10ppm |
| Conductivity: |
100%~102% Iacs |
| Elongation: |
≥37% |
| Tensile Strength: |
≥170n/Mm2 |
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
