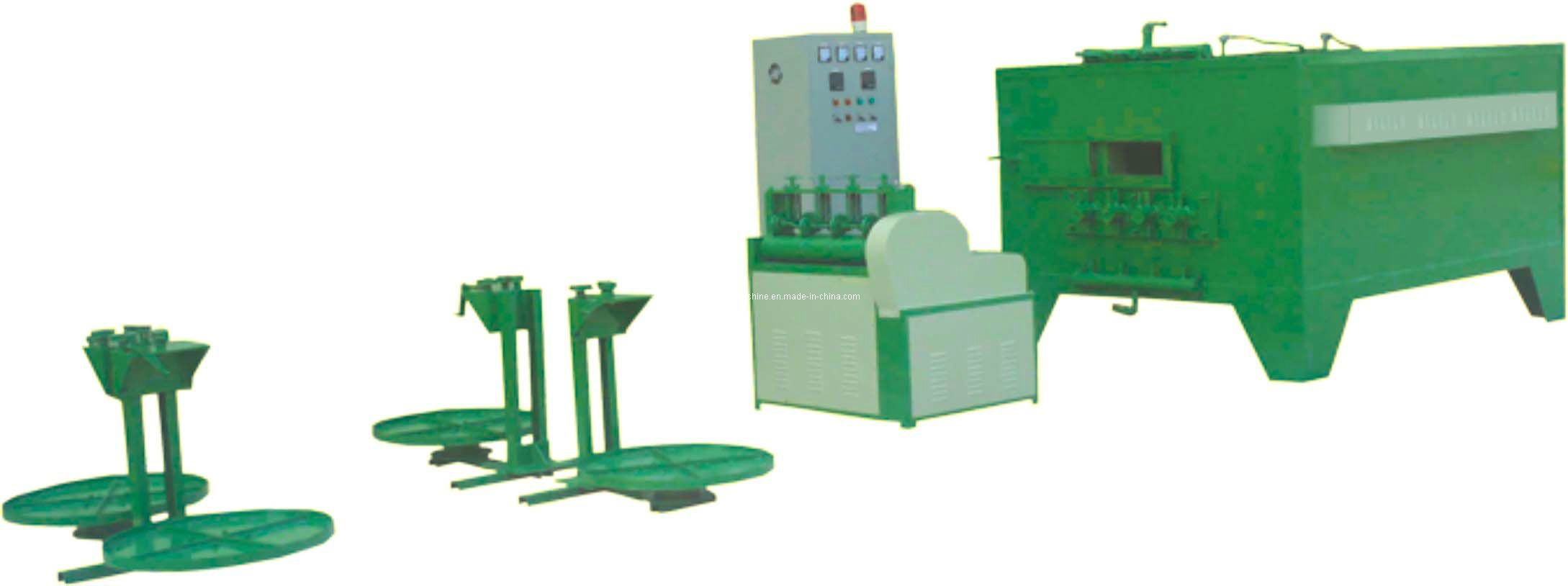

Continuous Melting and Casting Furnace for zinc ingot
Machine advantages: Evenly molten liquid for continuous zinc rod casting
4 rods continuous efficient cast
Configuration:
The machine is consists of furnance body, crystallizer, traction organization, electric control system ( a low frequency core-type induction furnace (common industrial electricity 50 cycle), four crystallizers. Four sets horizontal traction group, four sets wire winding stands and water supply system. )
This Melting & Casting Furnace which is with electricity-run is mainly applied to zinc wire making. And It is of pararell traction for thicker wire. With easy operation and stable quality to ensure a better further drawing quality.
The temperature which adopt SCR can be controlled within 0— 1000 degre c with a tolerance of ± 5 degree c.
Furnace door are equipped with power off protection and power off alarming funtion.
Traction Machine adopt double inverter control
|
Item |
VT-1T |
|
Finish spec. |
12-16 |
|
Outlet rod number |
4 |
|
Heater power |
50KW |
|
Traction power |
1.1KW+2.2KW |
|
Temerature control |
SCR control |
|
Power control |
Double inverter control |
|
Voltage |
380v |
|
Max speed |
1M/min |
|
Machine dimension |
8000*1950*1570mm |
|
Machine weight |
5T
|
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
