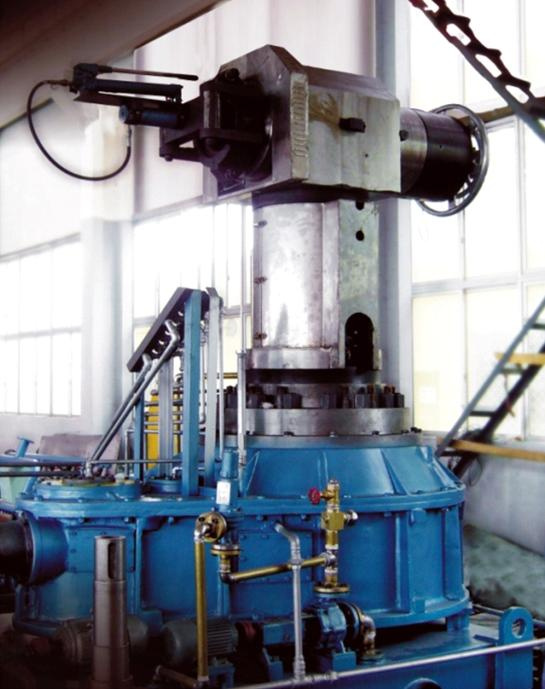

Continuous Lead Sheathing Extruder (YQL-200/5, YQL-150/5, YQL-100/5)

Continuous Lead Sheathing Extruder (YQL-200/5, YQL-150/5, YQL-100/5)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Application and composition
1. It is used for lead sheath extrusion of cables and lead covering of vulcanization of rubber tubes.
2. It is composed of gantry type travel motorized pay-off stand, 18t+10t(10t) holding furnace for melting lead, main extruding machine, gantry type travel take-up and traversing stand and electrical control system.
Type  YQL-200/5  YQL-150/5  YQL-100/5
Diameter of screw  Φ 200mm  Φ 150mm  Φ 100mm
Rotation speed of screw  2~20rpm  5~15rpm  5~17rpm
Extruded amount  13~ 33kg /min  30~ 35kg /min(pure lead)
20~ 22kg /min(soft alloy lead)
15~ 16kg /min(hard alloy lead)
6~ 12kg /min
Diameter of sheathing  Φ 60~ 140mm  Φ 10~ 80mm (die holder No.1)  Φ 10~ 50mm
    Φ 40~ 110mm (die holder No.2)
Capacity of melting furnace and holding furnace  132kW(DC)  90kW(DC)  55kW(DC)
Power of melting furnace and holding furnace  141.1+ 1.1.1 kW  141.1+ 1.1.1 kW  102kW
Consumption of cooling water  7t/h  6.8t/h  5t/h
Space required by machine  25000 × 13340 × 5100mm  22000 × 13340 × 5100mm  20000 × 11000 × 4100mm
Prod Model: Type YQL-200/5, YQL-150/5, YQL-100/5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DEYANG BOCHUANG ELECTROTECHNICAL EQUIPMENT Co., Ltd

COMPANY PROFILE

Deyang Bochuang Electrotechnical Equipment Co., Ltd is not only the cooperative partner of global wire and cable industry, but also the pioneer manufacturer of wire and cables equipments in China, DOFAMABC Company for short. It is located in Tianyuan development zone, the base of great technical equipment manufacturing industry in Deyang, China. Reformed from Orient Electrotechnical Company, now it is a pace-setting technologically advanced enterprise specialized in research, developing, manufacture, sale and service of the digital wire and cable equipments. It is an influential specialized manufacturing enterprise with excellent research, inspection, production equipments and workshop. It is also the research center and manufacturing base for digital wire and cable equipments in China.

Deyang Bochuang Electrotechnical Equipment Co., Ltd adopts ISO and IEC International Standard to research and manufacture products and passes ISO9001 Quality System Certification and CE Certification. Strong technical force comes from the previous company's experts who engage in product research and design for years with wide professional technical knowledge and rich practical experience, also some senior engineers for business and technical service. There are 70% technicians occupied in all of employees, leading the market trend with its technical force.

Bochuang has the aims "base on market, face to customer and constant innovation", devoting the application of high-tech on wire and cable equipments. The key of products are four series over 50 in total, the series of copper rod continuous casting & rolling line, aluminum rod continuous casting & rolling line, aluminum alloy rod continuous casting & rolling line, the series of copper wire, aluminum wire, aluminum alloy wire breakdown/intermediate drawing/fine drawing machine and the series of frame strander, tubular strander, the series of continuous conform production line for aluminum tube and continuous conform production line for copper material, lead sheathing extruder, some of them obtain the national patent certificates, the invention awards and the province project innovation fund which make great contributions to the development of national wire and cable industry.

We hope to cooperate with global wire and cable companies sincerely to get mutual development. We will expedite technical innovation, constantly update products to make customer feel more reliable and transfer our technical, high quality and service advantages into the competitive advantages of the users to make them keep the leading position and work together for the improvement of Chinese wire and cable equipment industry.
