Continuous Hanger Type Shot Blasting Machine
| Price: |
US $ 14500-14710/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |

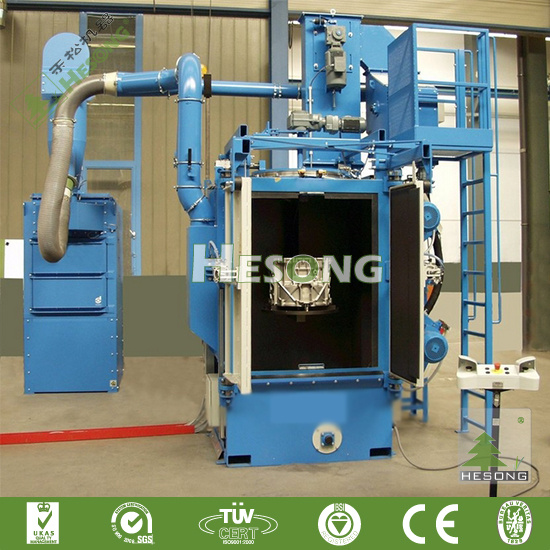

Continuous Hanger Type Shot Blasting Machine
1.Continuous Hanger Type Shot Blasting Machines are recommended for the treatment of sensitive parts which cannot be tumbled in bulk loads, and for particularly complex, heavy, or large parts. Besides the monorail system there are also batch and continuous system other options.
2. Main technical parameters of Continuous Hanger Type Shot Blasting Machine
Model |
Q383 |
Q384 |
Q483 |
Q485 |
Q4810 |
Lifting wieght |
300kgs |
400kgs |
300kgs |
500kgs |
1000kgs |
Workpiece dimension |
Φ600x1400 |
Φ800x1500 |
Φ900x1400 |
Φ1000x1500 |
Φ1200x1600 |
Abrasive Projective capacity |
4x250kg/min |
6x250kg/min |
4x250kg/min |
6x250kg/min |
6x250kg/min |
| Model
Item | KSB-7
Q376 | KSB-9
Q378 | KSB-10
Q3710 | KSB-20
Q3720 |
| 1 | Size of workpiece | mm | Φ600*1100 | Φ800*1500 | Φ900*1600 | Φ1400*2300 |
| 2 | Load capacity | kg | 500 | 1000 | 1000 | 2000 |
| 3 | Abrasive flow rate | kg/m | 2*120 | 2*200 | 2*250 | 3*250 |
| 4 | Elevating amount | t/h | 15 | 22 | 30 | 45 |
| 5 | Separating amount | t/h | 15 | 22 | 30 | 45 |
| 6 | Ventilation capacity | M 3 /h | 5000 | 8000 | 9000 | 15000 |
| 7 | Power(no dust collector) | kw | 19 | 32.5 | 36.55 | 61.27 |
3. Our other shot blasting machine and other machine at our factory
Tumblast Shot Blasting Machines
Steel Belt Shot Blasting Machines, Tumble Belt Shot Blasting Machines, Drum Type Shot Blasting Machines, Rotary Barrel Shot Blasting Machines, Continuous Flow Shot Blasting Machines, Continuous Loop Belt Conveyor Through Blast Machines
|
Overhead Rail Shot Blasting Machines
(Hanger Type Shot Blasting Machines, Spinner Hanger Shot Blast Machines, Overhead Monorail Shot Blast Machines, Hanger Pass Through Type Shot Blast Machines)
|
Tube and Bar and billet Blasting Machines
(Internal and external wall of Steel Pipe Shot Blasting Machines , Cylinder Shot Blasting Machines , Round Bar Shot Blasting Machines, Square Billet Shot Blasting Machines)
|
Roller Conveyor Shot Blasting Machines For Profiles, Sheet
(Steel Structure Shot Blasting Machines, Horizontal And Vertical Steel Plate Shot Blasting Machines, Steel Plate Pretreatment Line, Steel Strip Shot Blasting Machines, Marble / Stone Shot Blasting Machines, Aluminum Profile Shot Blasting Machines , Floor Tiles Shot Blasting Machines )
|
Wire Rod Shot Blasting Machines (Single & Multistrand Longitudinal Blast Machines)
|
Rotary Bogie Table Shot Blasting Machines / Satellite Turntable Shot Blasting Machines
|
Wire Mesh Belt Shot Blasting Machines
|
Portable Shot Blasting Machines
(Road Surface Shot Blasting Machines , Bridge Floor Shot Blasting Machines, Tunnel Shot Blasting Machines, Pipeline Shot Blasting Machines)
|
Marble / Concrete Block Shot Blasting Machines
Roll Texturing Etching Machines
|
Spring Shot Blasting Machines
Leaf Spring Shot Blasting Machine , Crank Axle Shot Blasting Machine , Link Rod Shot Blasting Machine
Special Shot Blasting Machines
(Closed Circuit Blasting Machines, Saw Blade Shot Blasting Machines, Robot Shot Blasting Machines, Squirrel-Cage Shot Blasting Machines) |
4. The equipment mainly consist of several functional parts:
| 1 | Blast Wheel / turbine |
| 2 | Shot blasting chamber / cleaning room |
| 3 | Screw conveyor |
| 4 | Bucket Elevator |
| 5 | Separator |
| 6 | Flow adjusting device / pill skatin pipe |
| 7 | Dust removing pipe |
| 8 | Dust collector |
| 9 | Access Guide Device / pill blow
|
5. Our certification and our firm is rock-solid financially:
Our company has passed "CE", "ISO9001" and bureau veritas certification
50 years experience with 20 professional engineers in our Qingdao Hesong Machine Co.,Ltd.
So many kinds shot / sand blasting machines and 80 kinds of casting machines.
Considerate after-sale service , Technial Assistance and provide installing ,debugging and training on site
The company has its own foreign trade marketing team Industrial Corporation, first - class service standards for all clients
6. Trade Term:
Payment term: 30% as deposit, 70% balance against the copy of B/L
Delivery of the goods is executed within 45 days after receipt of advance payment.
Manufacturer must provide the certificate of origin to buyer.
7. Detail Technical Parameters, please send eamil to us
8. Service:
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
9. SHOT BLASTING APPLICATION:
Agriculture industry
Shot blasting:tractor components,water pumps,farm implements,etc. |
Automobile industry
Shot blasting:engine blocks,cylinder heads,break drums,etc. |
Building & infrastructure industry
Shot blasting:structural steel,bars,transmission & television towers,etc. |
Transportation industry
Shot blasting:engine blocks,axle & crank shafts,diesel engine components,etc. |
Oil & gas industry
Surface preparation:pipes coating with paper,cement,epoxy,polythene,coal tar,etc. |
Mining industry
Shot blasting:bulldozer,dumpers,crushers,land fill equipments,etc. |
Foundry industry
Shot blasting:automobile,tractor,scooter & motor cycle components,etc. |
Aluminum casting industry
Shot peening:automobile,scooter & motor cycle components,etc. |
Forging industry
Shot blasting:crank shafts,connecting rods,torsion bars,other forged components,etc. |
Railway industry
Shot blasting:side frames,bolster,couplers,rail wheel,entire coach,etc. |
| Prod Model: |
Q3815 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Q3815 |
| Shot Blasting Machine: |
Continuous Shot Blasting Machine |
| Machine Application: |
Steel Casting Surface Treatment |
| Cleaning Process: |
Shot Blast Cleaning Machine |
| Steel Plate Cleaning Machine: |
Overhead Rail Shot Blasting Machine |
| Blast Wheel: |
Continuous Overhead Monorail Shot Blasting Machine |
| Screw Conveyor: |
Electrical Control System |
| Cleaning Equipment: |
Wheel Surface Cleaning Equipment |
| Dust Collector: |
Wheel Surface Treatment Equipment |
| Quality And After-Sale Assurance: |
Qingdao Hesong Machine Co., Ltd. |
| Application: |
Steel Industry |
| Certification: |
ISO9001 BV |
Qingdao Hesong Machine Co., Ltd.
In order to adapt the new economic system and accelerate the introduction of international advanced technology and capital, Qingdao Foudnry Machinery Group reorganize and holding shot blasting machine manufacturing enterprises: Qingdao Hesong Machine Co., Ltd.
Our research Institute firstly adopted computer 3D design, combining with Shandong Polytechnical University and Ji'nan Forging research Institute completed blasting shot scene simulation software, not only greatly improved the blasting effect and the utilization rate of shots, save the cost for users, but also optimized its overall quality, gained high praise by domestic and international customers. Our company has introduced and created one hundred kinds of automatic molding equipments and shot blast cleaning machines, which are more than 20 kinds of products to fill gaps in the domestic industry, the products are not only used in domestic FAW FAW-Volkswagen Automobile Co, Dongfeng Motor Corporation, Weichai Power Co., Ltd., China NATIONAL HEAVY DUTY TRUCK GROUP Co., Ltd, CSR Corporation Limited, China CNR Corporation Limited, Chery Automobile Co. Ltd, Baotou Bei Ben Heavy-Duty Truck Co., Ltd, Bombardier Aerospace, Siemens, Hitachi Limited Corporation, FUJI Heavy Industries Ltd, Tangshan Gear Group Ltd (TGG),
Aisin Seiki, Alsthom, DOOSAN, Caterpillar, Taiwan black bear Machinery Industrial Co., Ltand also exported to Korea, Japan, Singapore, Australia and North America, Southeast Asia more than 40 countries around the world, enjoys a high reputation and reputation in the global and domestic.
In order to ensure the quality of products, we adopt advanced CNC machining centers and dynamic balance tester, large boring machine, milling machine and equipment and other machining tools, such as the lathe, the planer, the grinding machine, the drill press and about 200 sets. And equipped with automatic welding, industrial electric furnace, wear resistant cast iron test field and soon on.
A splendid accomplishment is also the starting point. With the obvious trend of economic globalization, the company put a new development concept " building three-dimensional win-win system, creating world leading quality", and firstly gained the self-support right of import and export in the industry, has passed ISO9001: 2008 international quality system certification, environmental management system certification, positive innovation and introducing PANBORN, V+S, GF, SINTO and other international new technology, strict requirements for quality and process, to grow into the world famous enterprises and strive to open up and constant innovation.
At present, our company steadily creates the perfect industrial chain as to the most of the world famous companies. From small purchasing, each section of the manufacturing process, one point of the product, we try our best to make the product quality more perfect, and let each user experience become more perfect, let our after sale service become more perfect and shape the perfect corporate philosophy. We believe, only truly achieve a winwin situation with customers, we can also realize our value in the competition of global industrial equipment industry.
