Technology parameter:
1. Casting machine adopt trackless steel cable, and distance of run is more than 6.2 meters.
Casting machine adopts frequency control; Adjusting range of speed is about 25~650mm/min. It can move inching up/down or automatically. Digital display the speed, casting length, cooling water temperature and aluminum liquid temperature, as well as audible alarm before reaching the end of casting and safety stop before empty car coming up to the position.
2. Adopt single coiling block with four steel cable, casting machine steel cable diameter is about φ 14, maximum stress toleration is 15T( when in high water level). Worm speed reducer center distance is 280mm. Winding engine has manually operation falling-off equipment and spring auxiliary starting equipment. All the control equipment of winding engine and hydraulic system are converged on one electric cabinet.
3. Framework material of cast pit is 25#channel steel and steel sheet. Four main chain wheel of cast windlass engine are established in the pit framework as well as tilting pedestal and arm.
4. Mould cast table raise to 90o. Tilting mechanism is operated by hydraulic system. Hydraulic cylinder and pump Germany brand made in China, and main hydraulic valves are made in Taiwan. Both revolving joint and connector for entering water are established on the side of tilting arm, size of connector is 4 inch.
Well mouth size: 2000× 2000;
Aluminum billet casting length: 6000
Each time casting weight: φ 127 -1mm× 24 PC(5 MT )
Each time casting weight: φ 152 -1mm× 16PC(5MT )
Each time casting weight: φ 178 -1mm× 12PC(5MT )
Material of launder, filter box, distributor inside cast mould table and the bushing are "ZHONGNAI NO 1". Frame of launder and filter box are made of steel; Inside lining is made of "ZHONGNAI NO 1" preformed unit; Filter box size is 15 inch, including electric heating and hydraulic lid lifter device.
Porcelain filter size: With ceramic filter
Guangzhou DT Exp. & Imp. Co. Ltd was established 2011. We have a great team with more than 15 years professional
The main Machineries we manage:

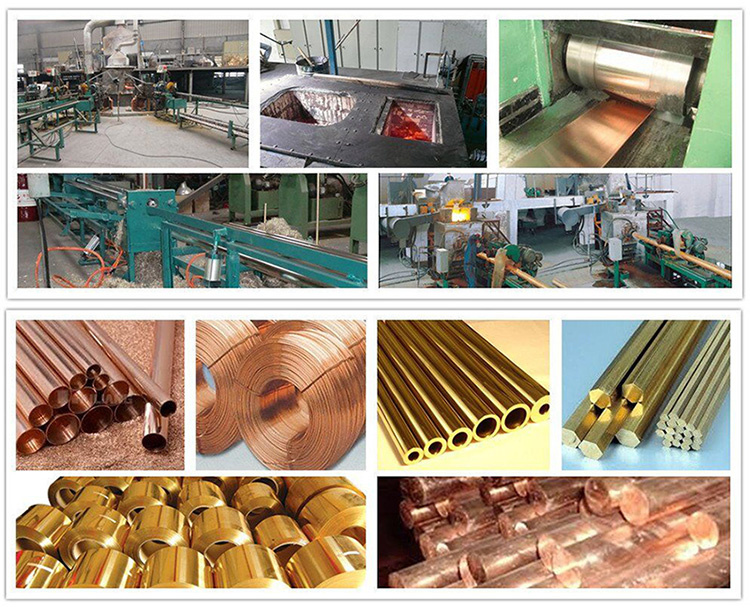

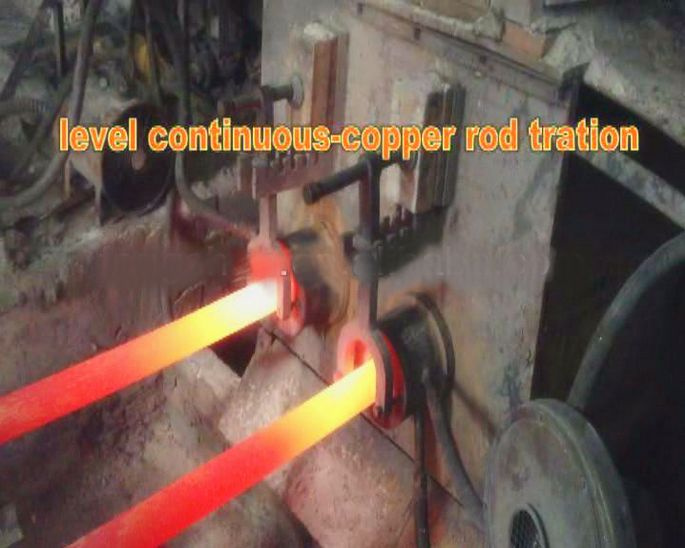

1) Furnace and all continuous casting system, upward casting, downward casting and level continuous casting for brass and copper.
The whole line will include the Melting furnace, Holding furnace casting, cutting, drawing, peeling and polishing processing and so on.
We also supply all dies like graphite dies, peeling dies and drawing dies for your whole production line.
2) Combined drawing machinery is our following treatment of copper bars after casting line and extrusion processing.
The combine drawing machinery will assemble all processing in one machine. It consists of 7 parts as following: Initial straightening -- drawing--precision straightening--hydraulic cutting--bar guide-- polishing -- material receiving frame.
Tools and mold for Combined drawing machine: Hydraulic scissor, drawing dies, knives for cutting and so on.
3) We also developed our own metal mold department for mold opening and metal tools and metal stampings. Such as punching mold for metal, drawing mold for metal, continuous mold and so on. We would like to design and make mold according to your finished products or drawings, also we can make the finished products according to your samples.
4) Also we supply metal crafts and arts.
Our advantages:
1. Professional, Concentration, Attentive
2. Feedback within 24 hours and 24 hours online;
3. Lifetime technology support and repair guarantee;
OUR SLOGAN: WE BEAT WITH BEST FOR YOU!
