1. Application

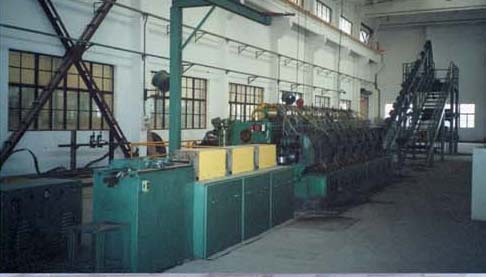

This production line is used to produce conductive aluminum rod of Φ 9.5mm, Φ12mm by means of continuous casting and rolling.
2. Precise Process Flow
2.1. The process flow chart is as follows:
First step, Ordinary aluminum ingot and scrap
Second step, Melting furnace, Holding furnace
Third step, Continuous casting machine
Fourth setp, Oil Hydraulic shearer
Fifth step, Continuous rolling machine
Sixth setp, Double basket rod rewinder
Final step, Aluminum rod
2.2. Molten aluminum or prepared aluminum melt flows from the holding furnace into the casting machine via the launder, where it is cast into a trapezoid ingot with a cross-sectional area of 2400mm2. The oil hydraulic shearer cuts off the waste end and press it smaller or pointed so as to feed into the rolling machine, where it is rolled, and after passing through the grease box and the guide pipe, aluminum rod is finally laid down in coil in the basket on the trolley.
3. Main Technical Data
Diameter of conductive aluminum rod 12mm, and 9.5mm
Output capacity: 2.5~5ton/hr.
Overall dimension: 32.05x7.2x4.2m
Total weight: 65t
GLOBAL HOLDING GROUP Co., Ltd is a thriving, modern and energetic company in developing, manufacturing and marketing electrical wire and cable machine with superior quality.
Our production include "upward continuous casting system for copper rod production"(it can produce diameter 8mm-30mm copper rod, and the annual capacity is from 3000 tons to 10000 tons), "Continuous casting and milling system for copper rod production" etc. We also supply rigid frame strander, extruder and drawing machine etc. Anyway if you need some machine to produce electrical wire and cable, please contact us, and we shall use our best endeavors to your satisfaction.
We have been exporting these products for a long time and get good mark from our clients. We sincerely hope we can do business with any importers. If you are interested, please don't hesitate and contact us.
We can give you good price and high quality.
We have pictures and video about our machines producing. So if you contact us, you will get more.
