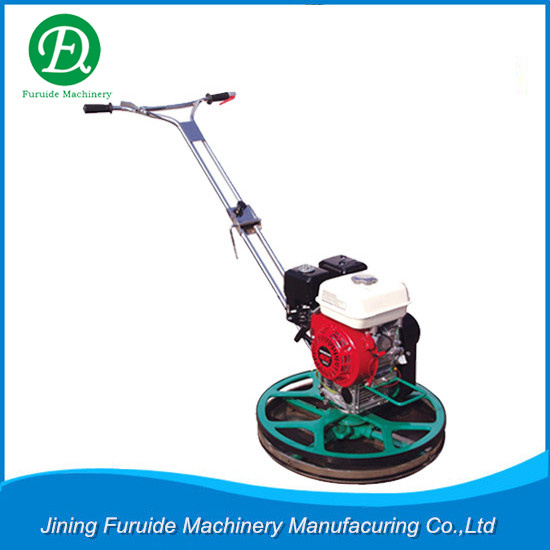

Vibrating Concrete Trowel Machine
Concrete trowel machine is mainly used for lifting, vibrating, sliding, toweling in asphalt pavement.
Using a trowel machine for casting concrete floors gives the finished product a professional look. Trowels machines are used for both floating and finishing concrete floors. Compared to hand trowels, power trowels significantly increase the productivity and quality of the finished product. They come in walk-behind and riding models.
Features:
1). HONDA engine, excellent performance, easy to start-up. 2). Max module transmission, aluminum alloy box, no maintenance, and long serving life.
3). Blade arm support, and strictly heat-treated structural steel, which is sturdy and durable.
4). Centrifugal clutch driving mechanism, which has the advantages of large transmission torsion torque and long serving life, no maintenance.
|
Model |
FMG-24 |
FMG-30/36A |
FMG-30/36B |
FMG-S30 |
|
Working Diameter |
Φ 60cm |
Φ 80/100cm |
Φ 80/100cm |
Φ100cm*2 |
|
Power |
5.5HP |
20HP/24HP |
|
Operating speed |
0~130rpm |
|
The number of knife |
4 pieces |
|
Fuel Capacity(L) |
3.6L |
|
Engine type |
HONDA, GX160 |
|
Packing Size |
1150×1015×670mm |
|
Types |
Gasoline Engine,Air-cooled,4-cycle,single cylinder |
|
Working Efficiency(m2/hr) |
100 |
|
Net Weight(KG) |
40 |
80 |
85 |
300 |
|
Package Size(mm) |
700*200*690 |
1150*1150*690 |
1150*1150*690 |
2010*1150*1100 |
