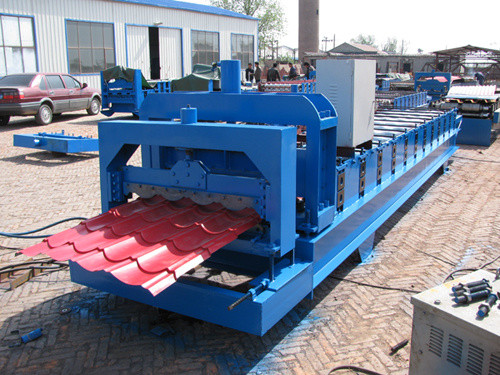

Color steel plate roll forming machine
Parameter:
1. Suitable to process: Colored Steel plate, galvanized board, aluminum sheet
2. Width of the plate: 1250mm
3. Rollers: 18ows
4. Rolling material: Forging Steel 45#
5. Rolling galvanization thickness: 0.05 mm
6. Material of the cutting blade: Cr12
7. Hydraulic oil: 40#
8. Dimensions: 8.4*1.55*1.51m
9. Power: 4+4kw
10. Thickness of the plate: 0.3-0.6mm
11. Productivity: 8-10m/min
12: Diameter of the roller: 70mm
13. Weight: About 4.1 T
14. Voltage: 380V 50Hz
15. Processing precision: Within 1.00mm
17. Transportation: One complete equipment need one 40feet container to hold
18. Orders & Payment Term: 30%deposit, and balance before delivery
16. Equipment components: Man-made uncoiler--Roll forming machine--computer control system--hydraulic control system--press forming--cutting.
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
