| Prod Model: |
glazed tile 840 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
You Can Choose |
| Control System: |
PLC Control |
| Cutting System: |
Hydraulic Shearing System |
| Warranty: |
12 Monthes |
| Type: |
Building Machine |
Product Description

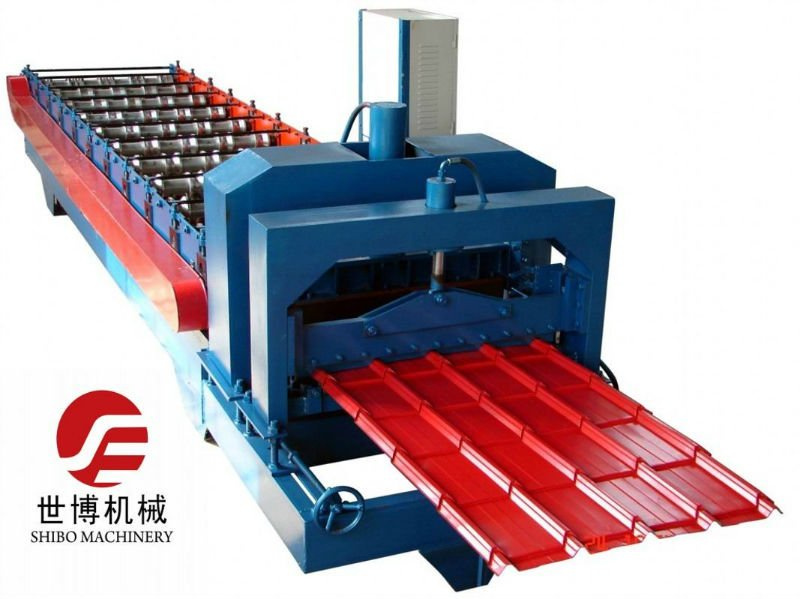

Color steel glazed tiles forming machine
Molding host
Equipment production model SB 21-215-840
Forming size 6000mm*1500mm*1000mm
2.5 T
Steel welding
13 rows
Diameter70
45# steel
Sprocket chain transmission
1 inch
6 KW
5-8 m/min
0.3-0.8mm
Weight
Main frame
Number of forming rollers
Out diameter of shaft
Shaft material
Driving mode
Thickness of chain
Equipment total power:
Forming speed
Rolling thickness
|
Computer Control System |
PLC control electric models |
TaiDa |
|
LCD |
5.7 inch LCD, contains Chinese/English bilingual program |
|
Working principle |
It adopts industrial computer to control, PLC control system, Accurate control of the plate size, Linking piece precision, forming speed |
|
Hydraulic shear system |
Shear die material |
Cr12 High temperature quenching process |
|
Hydraulic shear power |
3 KW |
|
Working principle |
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil : 40# |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
