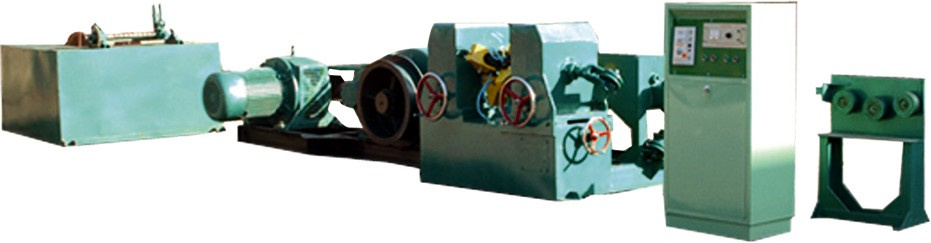

Cold-Rolled Ribbed Steel Bar Machine (8000T)

8000 T Cold-Rolled Ribbed Steel Bar Machine

Technical parameters:
Maximum wire diameter is 12 millimeters, total install capacity is 45 kilowatt, rolling specification is 4-11 millimeters. The velocity modulation way is electromagnetism velocity modulation. Rolling speed is 0-1.2 meters/second. The install length is 12 meters.

The product features:
The most major feature of this unit is a multi-purpose can produce cold-rolled ribbed belt steel bars/cold draw screw/the smooth circle steel bars/torsion angle squeal steel bars/cold rolled and twisted bars.
This machine complete all processes at one time, can save 30% electricity, just need one or two operations.

The unit mainly includes:
1. A eliminates phosphors machine
2. A lubrication machine
3. Using cold drew to reduce diameter:
A. First time reduce diameter
B. Second time reduce diameter
C. The third time reduce diameter
4. Main electrical machine is 30 kilowatt frequency conversion machine.
5. A set of drawing machine with the model is 650
6. A rolling mill with the model: 150
7. A cylinder escapement of tidying up wire with the weight one ton
8. A cabinet with electric control

The product processes:
Wire rod examination----setting wire off----eliminate phosphors----dried noodles lubrication----never reduce diameter or fist time or second time or third time to reduce diameter----the end product.
